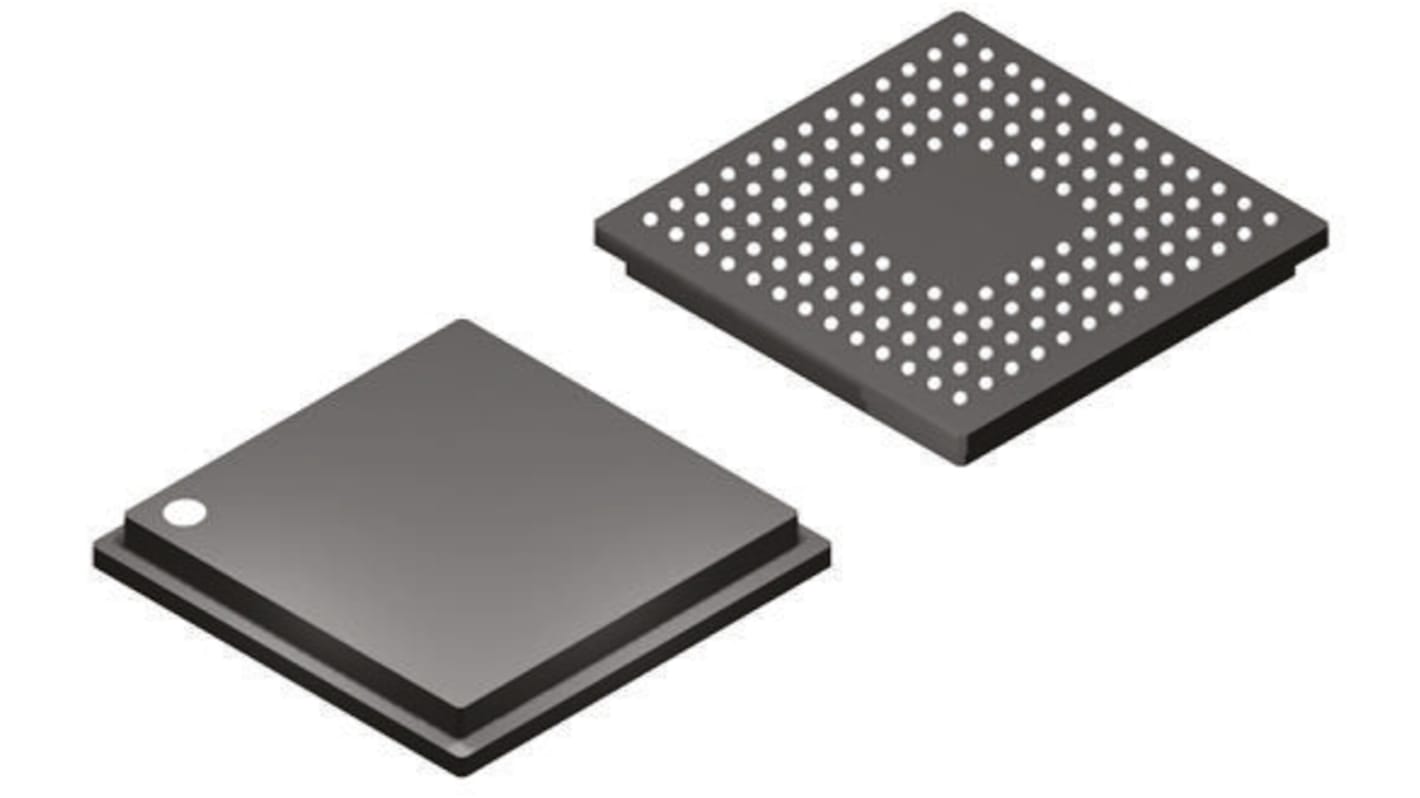

NXP MK10FX512VMD12, 32bit ARM Cortex M4 MCU, 120MHz, 1 MB Flash, 144-Pin MAPBGA
- RS-artikelnummer 818-1205
- Tillv. art.nr MK10FX512VMD12
- Tillverkare / varumärke NXP
Kinetis K1x Series Microcontrollers
These general-purpose MCUs are available with a variety of memory and integration options. Flexible, low-power, energy efficient capabilities and FlexMemory help to solve many of the major issues for embedded designers. Devices start from 32 KB of flash in a small footprint of 5x5 mm 32 QFN package extending up to 1 MB in a 144 MAPBGA package with a range of optional peripherals including analogue, communication, timing and control.
The Kinetis MCU portfolio is supported by a comprehensive set of development tools and software.
Note
NXP is a trademark of NXP B.V.
The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.
| Attribute | Value |
|---|---|
| Family Name | Kinetis K1x |
| Package Type | MAPBGA |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 144 kB |
| USB Channels | 2 |
| Number of PWM Units | 1 |
| ADC Channels | 4 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Length | 13mm |
| Pulse Width Modulation | 1 |
| Number of UART Channels | 6 |
| Dimensions | 13 x 13 x 1.7mm |
| Instruction Set Architecture | RISC |
| Number of Timers | 9 |
| Number of ADC Units | 4 |
| Program Memory Type | Flash |
| ADCs | 4 x 16-bit |
| Width | 13mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 9 x 16 bit |
| Timer Resolution | 16bit |
| ADC Resolution | 16 |
| Number of CAN Channels | 2 |
| Number of I2C Channels | 2 |
| Height | 1.7mm |
| Maximum Operating Temperature | +105 °C |
