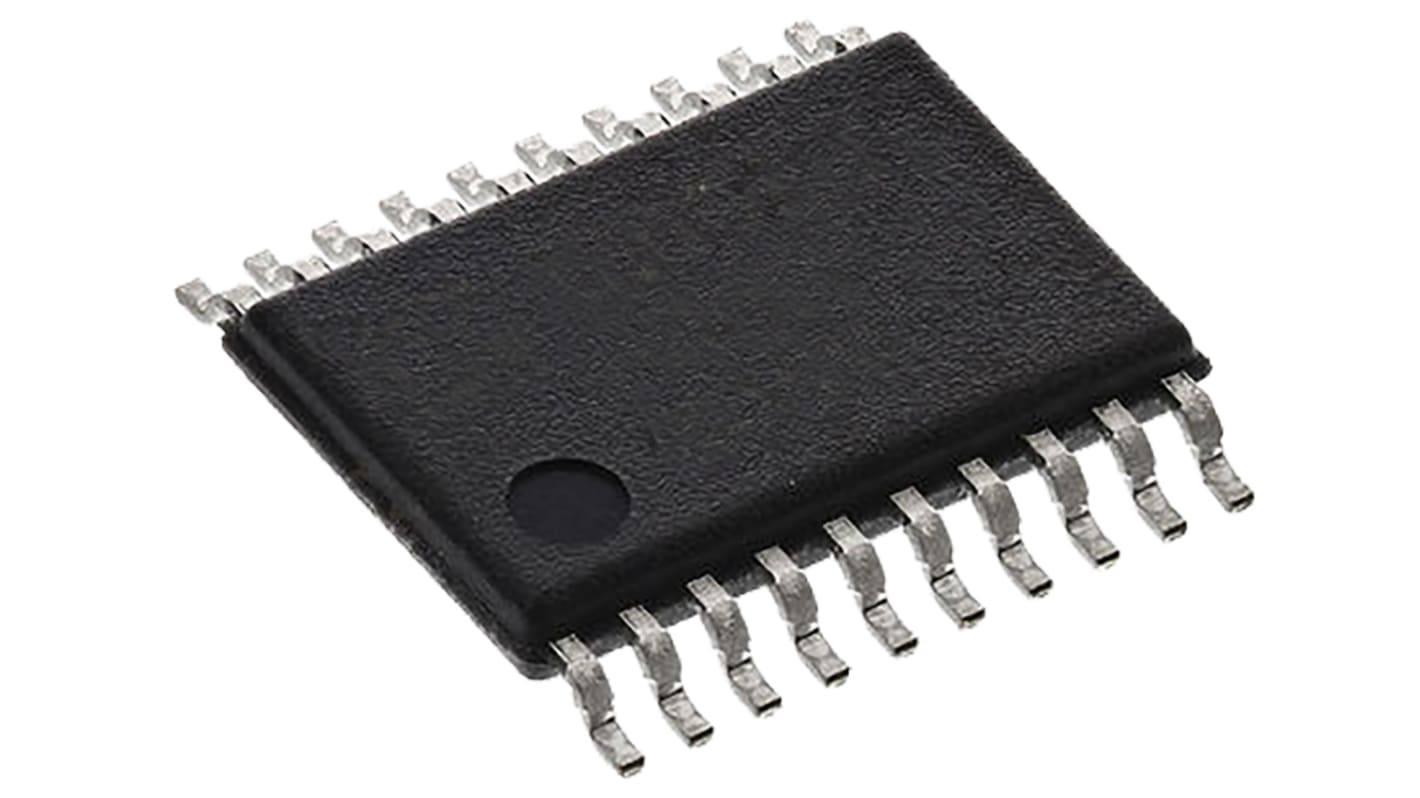

Texas Instruments MSP430G2533IPW20, 16bit MSP430 Microcontroller, 16MHz, 16 kB Flash, 20-Pin TSSOP

  • RS-artikelnummer 817-6405
  • Tillv. art.nr MSP430G2533IPW20
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

MSP430G2x Ultra-Low-Power Microcontrollers, Texas Instruments

The MSP430G2xx - Value Line Series have a 16MHz CPU delivering ultra-low power performance, but providing low cost options for your design.

Up to 16MHz CPU speed
1.8 to 3.6V operation
Up to 56KB Flash memory
Wide range of high-performance peripherals
Some lines feature the unique capacitive touch sense IO ports
0.1μA RAM retention
0.4μA Standby mode
220μA per MHz active
Ultra-Fast Wake-Up from Standby Mode in < 1μs

MSP430 Microcontrollers, Texas Instruments

The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.

Specifikationer
Attribute Value
Family Name MSP430
Package Type TSSOP
Mounting Type Surface Mount
Pin Count 20
Device Core MSP430
Data Bus Width 16bit
Program Memory Size 16 kB
Maximum Frequency 16MHz
RAM Size 512 B
ADC Channels 8
Number of SPI Channels 2
Typical Operating Supply Voltage 1.8 → 3.6 V
Timer Resolution 16bit
Height 1.05mm
Number of LIN Channels 1
Width 4.5mm
Program Memory Type Flash
ADCs 1 (8 x 10 bit)
Length 6.6mm
Maximum Operating Temperature +85 °C
Number of ADC Units 1
Minimum Operating Temperature -40 °C
Instruction Set Architecture RISC
ADC Resolution 10bit
Timers 2 x 16 bit
Dimensions 6.6 x 4.5 x 1.05mm
Number of I2C Channels 1
Number of Timers 2
Number of UART Channels 1
Denna produkt har utgått
