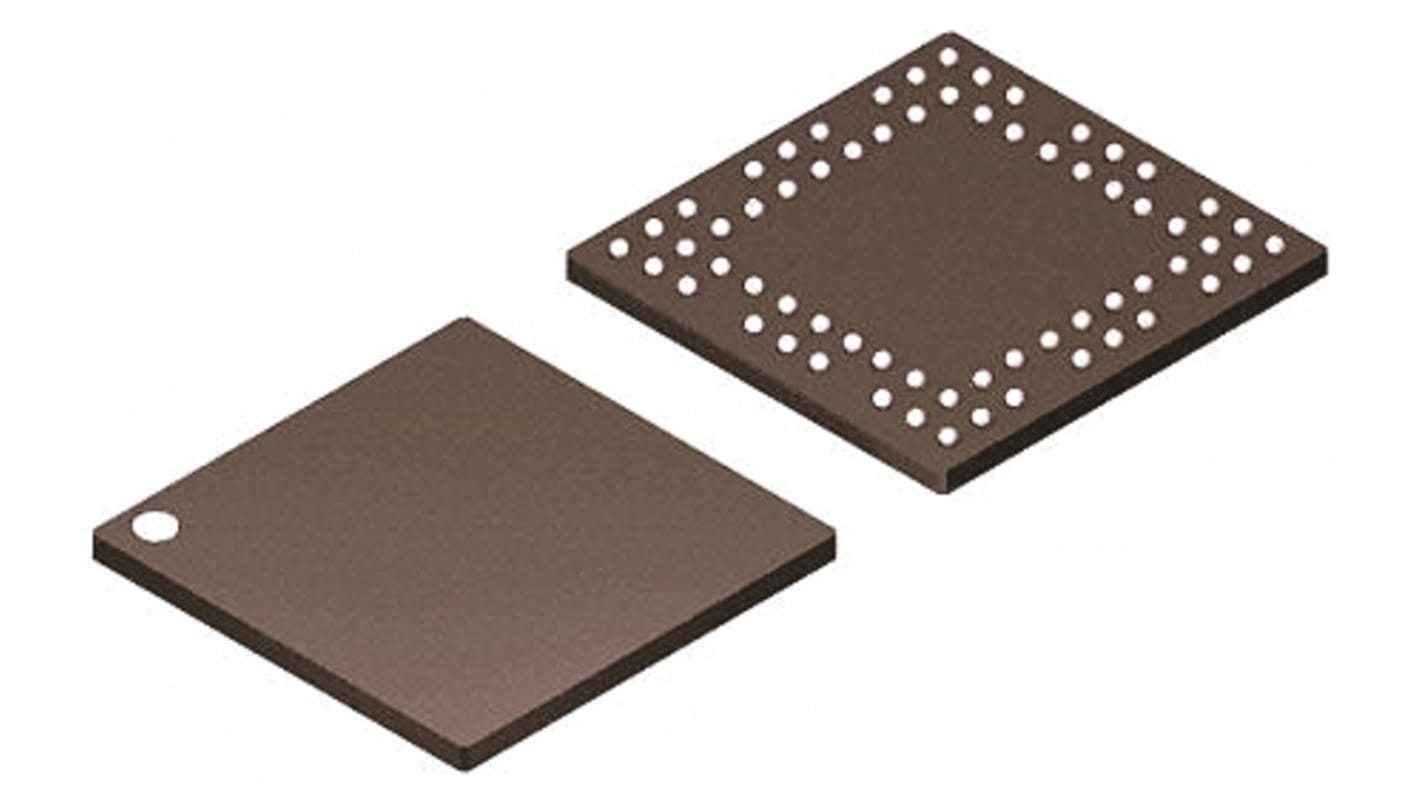

STMicroelectronics STM32F103RBH7, 32bit ARM Cortex M3 Microcontroller, 72MHz, 128 kB Flash, 64-Pin BGA

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

STM32F103 Series Microcontrollers, STMicroelectronics

STMicroelectronics devices STM32F103 Cortex-M3 core with 72 MHz CPU speed and up to 1 MB of Flash. Comprising of motor control peripherals plus CAN and USB full speed interfaces. The STM32 series ARM Cortex-M3 32 bit Flash microcontroller operates low power, low voltage and combines great performance with real time capabilities. In a range of package types available for your embedded application. The MCU architecture has an easy to use STM32 platform and will work in applications including motor drives; PC and gaming; HVAC and Industrial applications.

32-bit RISC
Pin to pin software compatible
SRAM up to 96 Kb
Flash up to 1MB
Power Supply: 2 V to 3.6 V
Temperature ranges: -40 to +85 °C or -40 to +105 °C

STM32F1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex™-M3 architectural enhancements including the Thumb-2 instruction set to deliver improved performance with better code density, significantly faster response to interrupts, all combined with industry leading power consumption.

Benefits
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility

Specifikationer
Attribute Value
Family Name STM32F
Package Type BGA
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M3
Data Bus Width 32bit
Program Memory Size 128 kB
Maximum Frequency 72MHz
RAM Size 64 kB
USB Channels 1
Number of PWM Units 2
ADC Channels 21
Number of SPI Channels 3
Typical Operating Supply Voltage 2 → 3.6 V
Width 10.2mm
Minimum Operating Temperature -40 °C
Number of Timers 11
Number of I2C Channels 2
Number of USART Channels 5
Timers 6 x 16 bit
Dimensions 10.2 x 10.2 x 1.45mm
PWM Resolution 16bit
Instruction Set Architecture RISC
Number of CAN Channels 1
Height 1.45mm
Timer Resolution 16bit
ADCs 3 (21 x 12 bit)
Length 10.2mm
Maximum Operating Temperature +105 °C
Number of ADC Units 3
ADC Resolution 12bit
Pulse Width Modulation 2 (16 bit)
Program Memory Type Flash
170 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
24,08 kr
(exkl. moms)
30,10 kr
(inkl. moms)
Enheter
Per unit
1 +
24,08 kr
Förpackningsalternativ:
