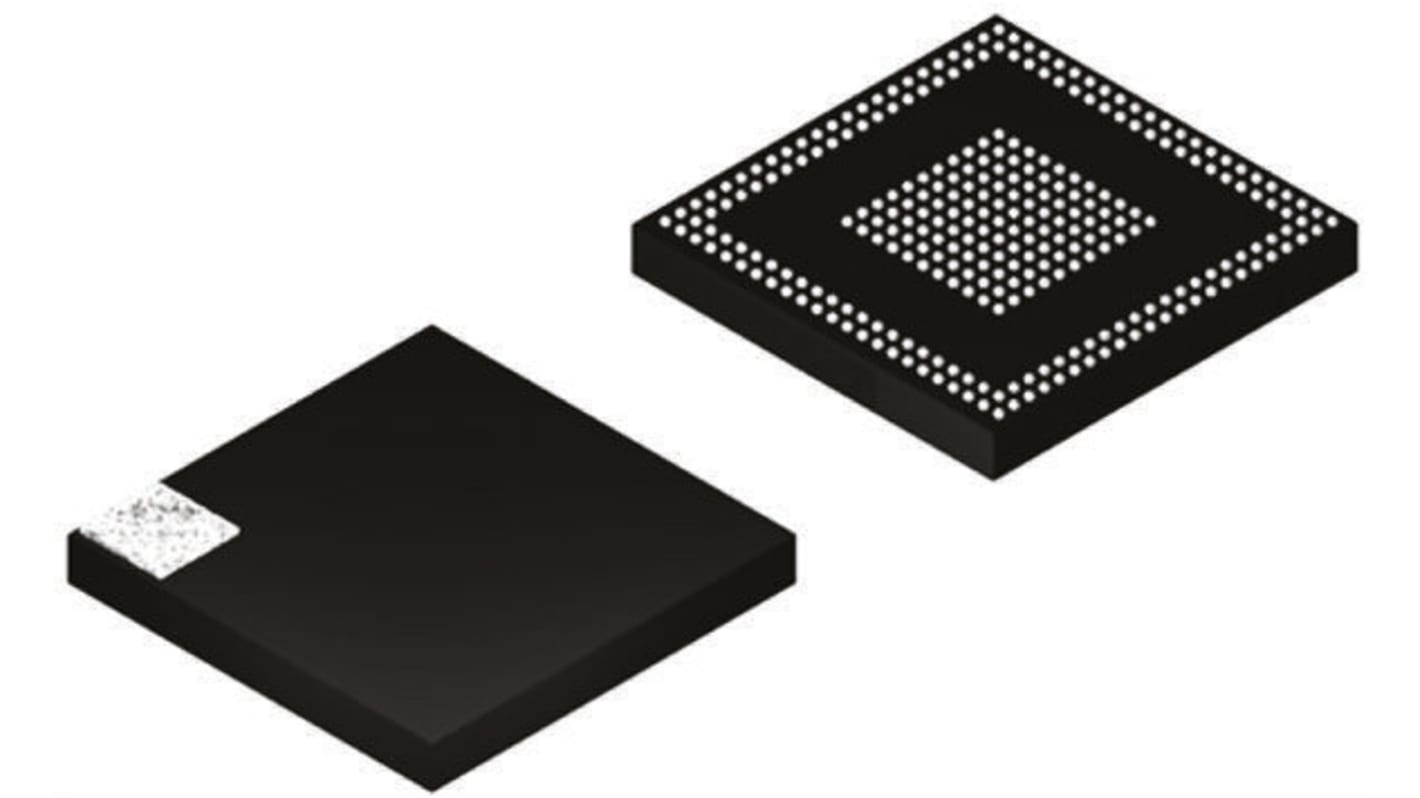

NXP MCIMX281AVM4B, 32bit ARM9 Microcontroller, 454MHz, 128 kB ROM, 289-Pin MAPBGA

  • RS-artikelnummer 801-6832
  • Tillv. art.nr MCIMX281AVM4B
  • Tillverkare / varumärke NXP
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

i.MX28x Application Processors

The i.MX28x is a high-performance ARM9-core 32-bit microcontroller optimized for embedded multimedia applications. It is available in consumer, industrial and automotive grades. The automotive grade parts have the additional benefit of being AEC-Q100 qualified.

454MHz ARM926EJ-S core with 128KB Mask-PROM, 128KB SRAM, 1280bits OTP ROM
16-bit mobile DDR (mDDR) (1.8V), DDR2 (1.8V) and LV-DDR2 (1.5V), up to 205MHz
Support for up to 8 x NAND Flash memory devices with up to 20-bit BCH ECC
4 x synchronous serial ports (SSP) for SDIO/MMC/MS/SPI
Single 10/100 Ethernet with GMII/RMII or Dual 10/100 Ethernet with RMII interface
2 x 2.0B protocol-compatible Controller Area Network (CAN) interfaces (281, 286, 287 only)
USB 2.0 OTG device/host controller and PHY
USB 2.0 host controller and PHY
5 x UART with hardware flow control
2 x I²C serial interfaces
LCD controller, up to 24-bit RGB (DOTCK) modes and 24-bit system-mode (not 280)
4/5-wire touchscreen controller (not 280)
Up to 8x8 keypad matrix with button-detect circuit
Pixel-processing pipeline (PXP) supports full path from colour-space conversion, scaling, alpha-blending to rotation without intermediate memory access
Dual serial audio interface (SAIF)
Power Management Unit (PMU)
8 x PWM
Real-Time Clock
16-channel Low-Resolution ADC
High-Speed 2Msps ADC
Read-only unique ID for Digital Rights Management (DRM) algorithms
Secure boot using AES-128 hardware decryption
SHA-1 and SHA-256 hashing hardware
Package: BGA289

RS Product Codes
801-6839 MCIMX280DVM4B Commercial -20 to +70°C
801-6832 MCIMX281AVM4B Automotive -40 to +85°C AEC-Q100
922-7504 MCIMX281AVM4B Automotive -40 to +85°C AEC-Q100 (Pack of 152)
801-6836 MCIMX283CVM4B Industrial -40 to +85°C
922-7513 MCIMX283CVM4B Industrial -40 to +85°C (Pack of 152)
749-6571 MCIMX283DVM4B Commercial -20 to +70°C
801-6845 MCIMX286CVM4B Industrial -40 to +85°C
749-6574 MCIMX287CVM4B Industrial -40 to +85°C
922-7419 MCIMX287CVM4B Industrial -40 to +85°C (Pack of 152)

Note

NXP is a trademark of NXP B.V.

Specifikationer
Attribute Value
Family Name I.MX28
Package Type MAPBGA
Mounting Type Surface Mount
Pin Count 289
Device Core ARM9
Data Bus Width 32bit
Program Memory Size 128 kB
Maximum Frequency 454MHz
RAM Size 128 kB
USB Channels 1
ADC Channels 16
Number of SPI Channels 4
Typical Operating Supply Voltage 1.35 → 1.55 (Digital Core) V, 1.62 → 2.1 (Analog Core) V
Program Memory Type ROM
Width 14mm
ADCs 1 (16 x 12 bit)
ADC Resolution 12bit
Timer Resolution 32bit
Timers 4 x 32 bit
Automotive Standard AEC-Q100
Minimum Operating Temperature -40 °C
Maximum Number of Ethernet Channels 1
Number of ADC Units 1
Number of Ethernet Channels 1
Maximum Operating Temperature +85 °C
Number of UART Channels 5
Pulse Width Modulation 8 Channel
Number of Timers 4
Length 14mm
Dimensions 14 x 14 x 1.03mm
PWM Channels 8
Height 1.03mm
Number of I2C Channels 2
13 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
94,17 kr
(exkl. moms)
117,71 kr
(inkl. moms)
Enheter
Per unit
1 +
94,17 kr
Förpackningsalternativ:
