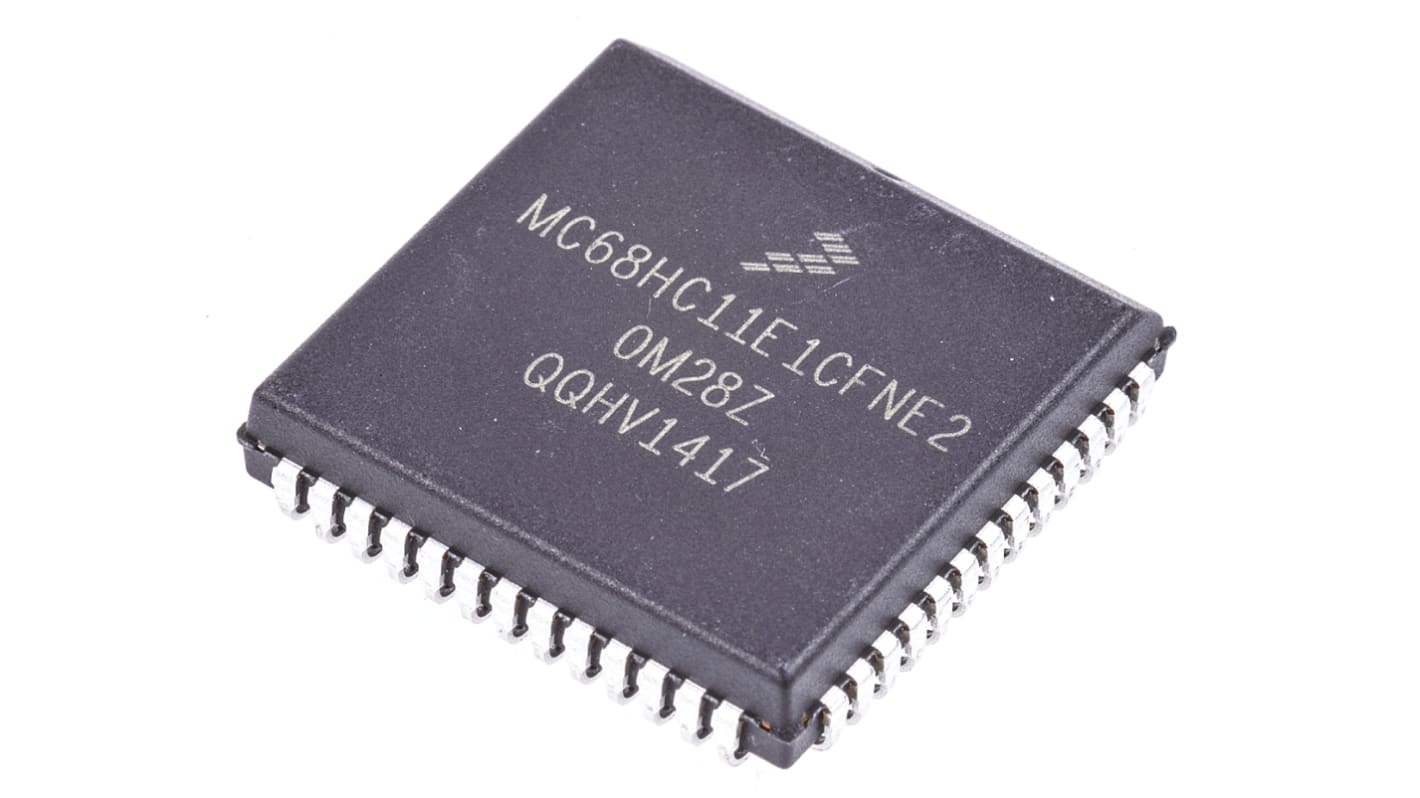

NXP MC68HC11E1CFNE2, 8bit HC11 Microcontroller, 2MHz, 512 B EEPROM, 52-Pin PLCC

  • RS-artikelnummer 539-0184
  • Tillv. art.nr MC68HC11E1CFNE2
  • Tillverkare / varumärke NXP
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

68HC/HS Family Microcontrollers

High-performance and low power, the S08-core 8-bit microcontroller family features 16MHz @ 1.8V operation and multiple power management schemes, including a 20μA power-down mode.

Note

NXP is a trademark of NXP B.V.

Specifikationer
Attribute Value
Family Name M68HC11
Package Type PLCC
Mounting Type Surface Mount
Pin Count 52
Device Core HC11
Data Bus Width 8bit
Program Memory Size 512 B
Maximum Frequency 2MHz
RAM Size 512 B
ADC Channels 8
Number of SPI Channels 1
Typical Operating Supply Voltage 3 → 5.5 V
Width 19.2mm
Number of UART Channels 1
Maximum Operating Temperature +85 °C
Height 4.57mm
Number of ADC Units 1
Program Memory Type EEPROM
Number of Timers 8
Instruction Set Architecture CISC
Minimum Operating Temperature -40 °C
ADC Resolution 8bit
Timer Resolution 16bit
Timers 8 x 16 bit
Dimensions 19.2 x 19.2 x 4.57mm
ADCs 8 x 8 bit
Length 19.2mm
299 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tube of 23)
149,413 kr
(exkl. moms)
186,766 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
23 - 207
149,413 kr
3 436,499 kr
230 - 552
134,038 kr
3 082,874 kr
575 - 1127
130,509 kr
3 001,707 kr
1150 - 2277
127,164 kr
2 924,772 kr
2300 +
123,986 kr
2 851,678 kr
