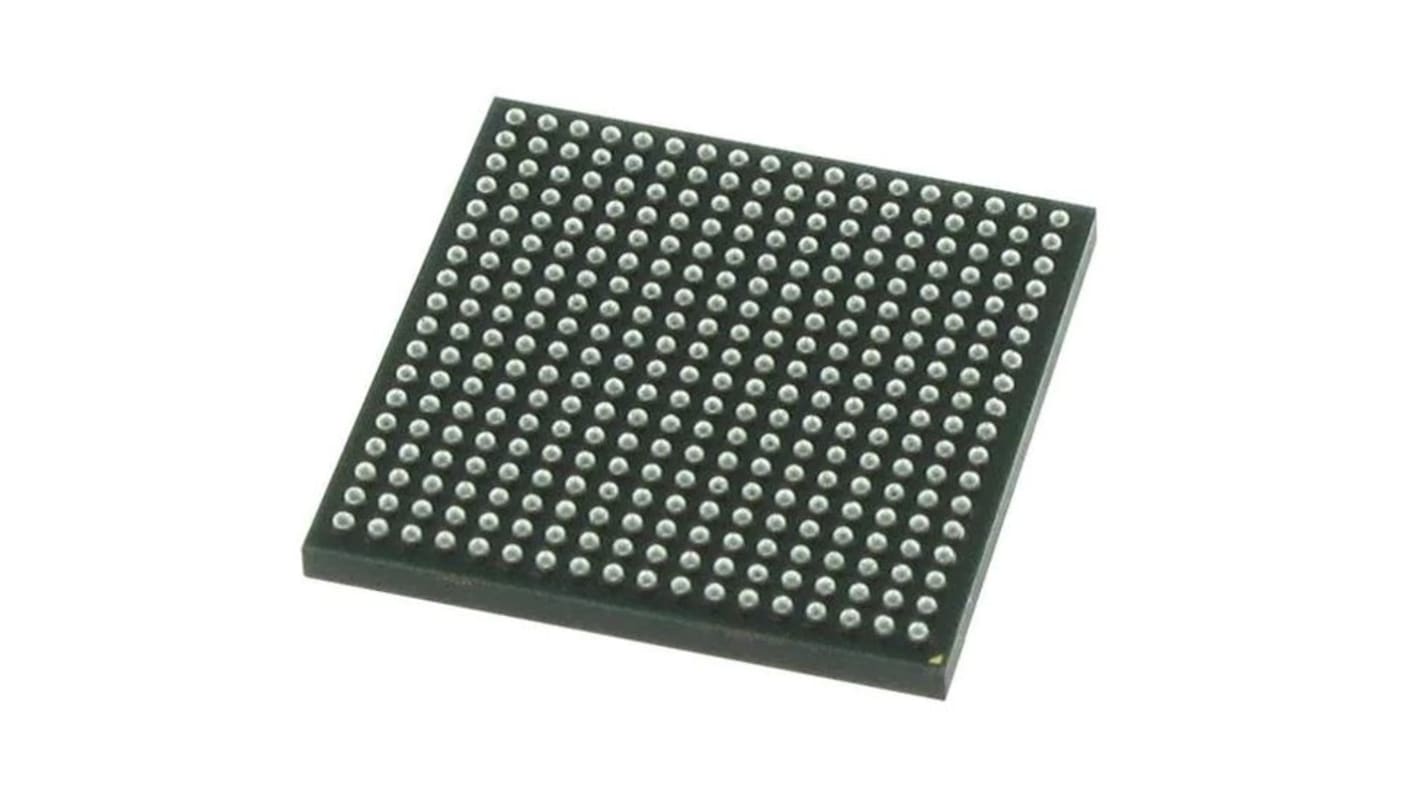

Renesas Electronics R7S721001VCBG#AC1, 32 bit ARM Cortex A9, RZ/A1H Microcontroller, 400 MHz, 128kB FLASH, 324-Pin BGA
- RS-artikelnummer:
- 250-0185
- Tillv. art.nr:
- R7S721001VCBG#AC1
- Tillverkare / varumärke:
- Renesas Electronics
Mängdrabatt möjlig
Antal (1 enhet)*
417,83 kr
(exkl. moms)
522,29 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 44 enhet(er) från den 19 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 417,83 kr |
| 10 - 24 | 385,28 kr |
| 25 - 49 | 339,70 kr |
| 50 - 83 | 332,86 kr |
| 84 + | 328,83 kr |
*vägledande pris
- RS-artikelnummer:
- 250-0185
- Tillv. art.nr:
- R7S721001VCBG#AC1
- Tillverkare / varumärke:
- Renesas Electronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Renesas Electronics | |
| Series | RZ/A1H | |
| Product Type | Microcontroller | |
| Package Type | BGA | |
| Mount Type | Surface | |
| Pin Count | 324 | |
| Device Core | ARM Cortex A9 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 128kB | |
| Maximum Clock Frequency | 400MHz | |
| RAM Size | 10.24MB | |
| Maximum Supply Voltage | 1.26V | |
| Number of Programmable I/Os | 171 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS Compliant | |
| Length | 19mm | |
| Width | 19 mm | |
| Height | 1.65mm | |
| Minimum Supply Voltage | 3.6V | |
| Number of Timers | 7 | |
| ADCs | 8 x 12 Bit | |
| Automotive Standard | No | |
| Program Memory Type | FLASH | |
| Välj alla | ||
|---|---|---|
Brand Renesas Electronics | ||
Series RZ/A1H | ||
Product Type Microcontroller | ||
Package Type BGA | ||
Mount Type Surface | ||
Pin Count 324 | ||
Device Core ARM Cortex A9 | ||
Data Bus Width 32bit | ||
Program Memory Size 128kB | ||
Maximum Clock Frequency 400MHz | ||
RAM Size 10.24MB | ||
Maximum Supply Voltage 1.26V | ||
Number of Programmable I/Os 171 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS Compliant | ||
Length 19mm | ||
Width 19 mm | ||
Height 1.65mm | ||
Minimum Supply Voltage 3.6V | ||
Number of Timers 7 | ||
ADCs 8 x 12 Bit | ||
Automotive Standard No | ||
Program Memory Type FLASH | ||
The Renesas Electronics LSI single-chip microcontroller includes an Arm Cortex®-A9 processor along with the integrated peripheral functions required to configure a system. It has BGA package with 324 pins.
Includes a 32-Kbyte L1 instruction cache, a 32-Kbyte L1 data cache, and a 128-Kbyte L2 cache
Various communication interfaces
Includes digital video decoder, video display controller 5, dynamic range compression, image renderer
