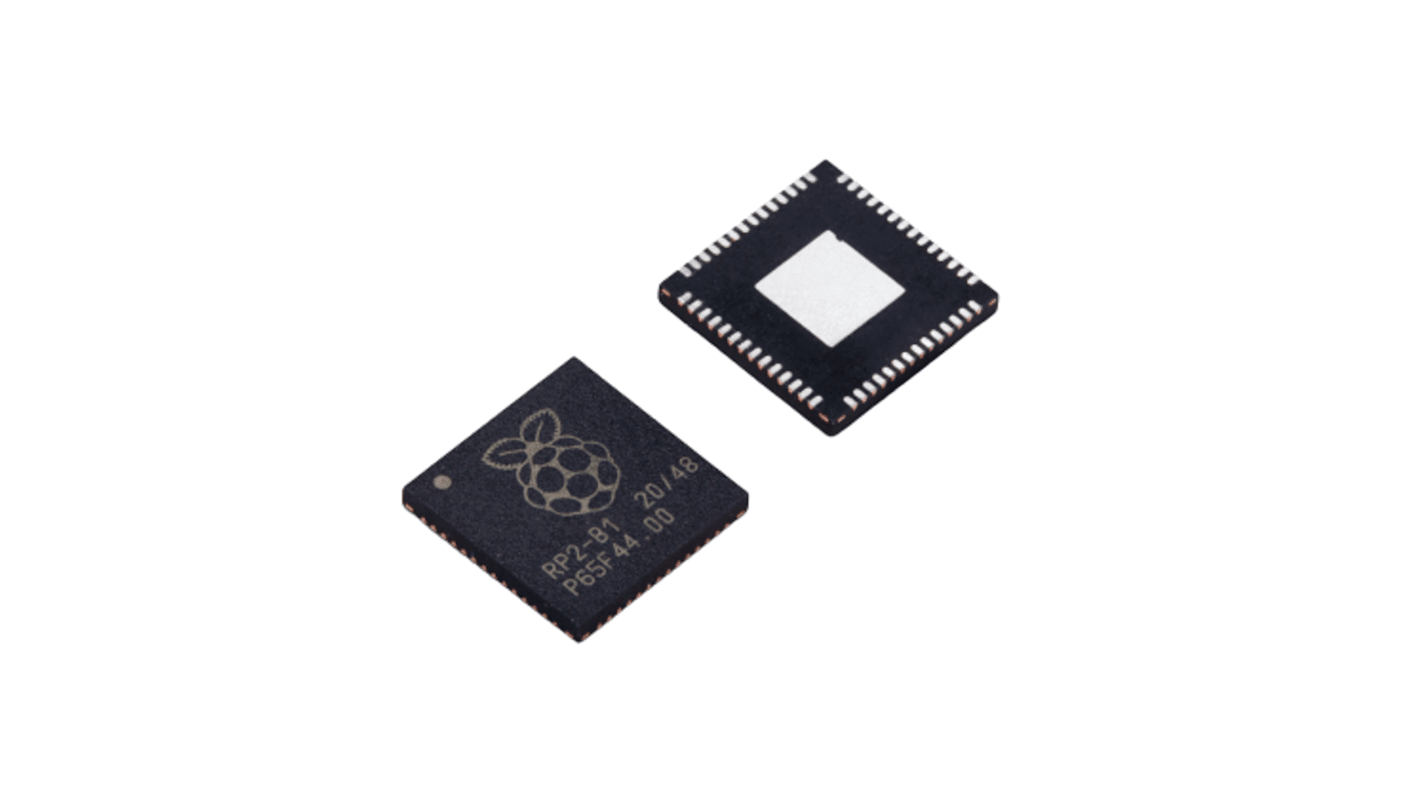

Raspberry Pi, 32bit ARM Cortex M0+, ARM Microcontroller, 133MHz, 16 MB Flash, 56-Pin QFN

RS-artikelnummer:: 221-1610
Tillv. art.nr:: RP2040
Tillverkare / varumärke:: Raspberry Pi

Raspberry Pi, 32bit ARM Cortex M0+, ARM Microcontroller, 133MHz, 16 MB Flash, 56-Pin QFN

Mängdrabatt möjlig

Antal (1 rulle med 500 enheter)*

4 539,00 kr

(exkl. moms)

5 674,00 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Håller på att utgå

Dessutom levereras 1 000 enhet(er) från den 08 december 2025
Sista 38 000 enhet(er) levereras från den 15 december 2025

Enheter	Per enhet	Per rulle*
500 - 2000	9,078 kr	4 539,00 kr
2500 - 4500	8,907 kr	4 453,50 kr
5000 +	8,799 kr	4 399,50 kr

*vägledande pris

RS-artikelnummer:: 221-1610
Tillv. art.nr:: RP2040
Tillverkare / varumärke:: Raspberry Pi

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Raspberry Pi
	Family Name	ARM
	Package Type	QFN
	Mounting Type	Surface Mount
	Pin Count	56
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	16 MB
	Maximum Frequency	133MHz
	RAM Size	256 kB
	USB Channels	1 x Device, 1 x Host
	Number of PWM Units	2 x 32 bit
	Number of SPI Channels	2
	Typical Operating Supply Voltage	3.63 V
	Number of I2C Channels	2
	Number of UART Channels	2
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	Program Memory Type	Flash
	Width	7.75mm
	Instruction Set Architecture	RISC
	ADCs	4 x 12 bit
	Length	7.75mm
	Height	0.9mm
	Dimensions	7 x 7 x 0.9mm
	Minimum Operating Temperature	-20 °C

	Välj alla
	Brand Raspberry Pi
	Family Name ARM
	Package Type QFN
	Mounting Type Surface Mount
	Pin Count 56
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 16 MB
	Maximum Frequency 133MHz
	RAM Size 256 kB
	USB Channels 1 x Device, 1 x Host
	Number of PWM Units 2 x 32 bit
	Number of SPI Channels 2
	Typical Operating Supply Voltage 3.63 V
	Number of I2C Channels 2
	Number of UART Channels 2
	Maximum Operating Temperature +85 °C
	Number of ADC Units 1
	Program Memory Type Flash
	Width 7.75mm
	Instruction Set Architecture RISC
	ADCs 4 x 12 bit
	Length 7.75mm
	Height 0.9mm
	Dimensions 7 x 7 x 0.9mm
	Minimum Operating Temperature -20 °C

Datasheet - RP2040

COO (Country of Origin):: TW

The Raspberry Pi RP2040 is the debut microcontroller from Raspberry Pi. It brings signature values of high performance, low cost, and ease of use to the microcontroller space. The RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low-power modes to support extended-duration operation on battery power.

264kB on chip SRAM in six independent banks
DMA controller
Fully connected AHB crossbar
Interpolator and integer divider peripherals
On chip programmable LDO to generate core voltage
2 on-chip PLLs to generate USB and core clocks
30 GPIO pins, 4 of which can be used as analogue inputs
