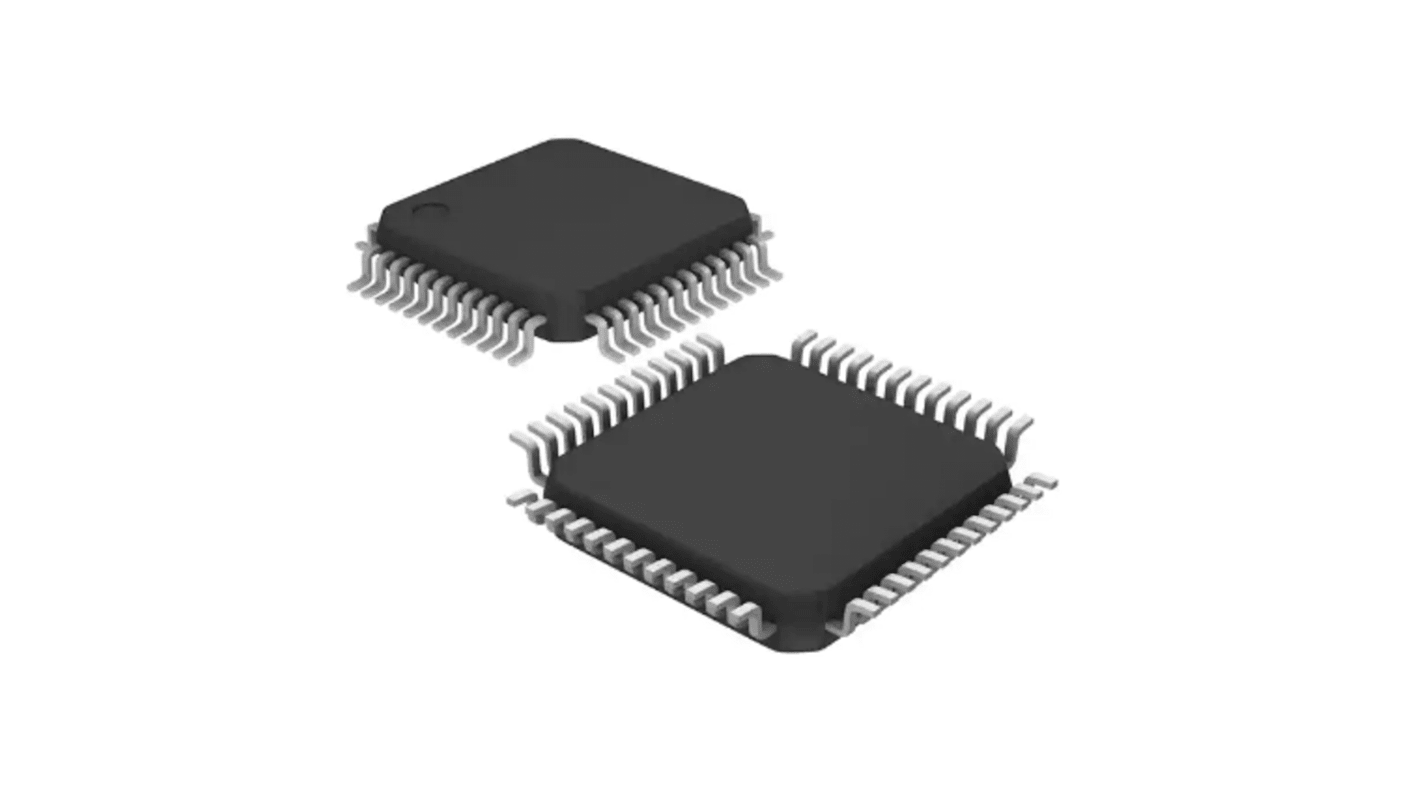

Microchip, 16 bit ARM Cortex M4, SAM4S Microcontroller, 120 MHz, 256kB FLASH, 48-Pin LQFP
- RS-artikelnummer:
- 215-3273P
- Tillv. art.nr:
- ATSAM4S4AA-AU
- Tillverkare / varumärke:
- Microchip
Mängdrabatt möjlig
Antal 10 enheter (levereras på en bricka)*
459,64 kr
(exkl. moms)
574,55 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 240 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 10 - 20 | 45,964 kr |
| 25 - 45 | 45,068 kr |
| 50 - 95 | 44,128 kr |
| 100 + | 42,628 kr |
*vägledande pris
- RS-artikelnummer:
- 215-3273P
- Tillv. art.nr:
- ATSAM4S4AA-AU
- Tillverkare / varumärke:
- Microchip
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Product Type | Microcontroller | |
| Series | SAM4S | |
| Package Type | LQFP | |
| Mount Type | Surface | |
| Pin Count | 48 | |
| Device Core | ARM Cortex M4 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 256kB | |
| Maximum Clock Frequency | 120MHz | |
| RAM Size | 64kB | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Analogue Comparators | 1 | |
| Length | 7mm | |
| Number of Programmable I/Os | 34 | |
| Width | 7 mm | |
| Height | 1.45mm | |
| Minimum Supply Voltage | 1.62V | |
| Number of Timers | 6 | |
| Program Memory Type | FLASH | |
| ADCs | 8 x 12 Bit | |
| Automotive Standard | No | |
| Instruction Set Architecture | RISC | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Product Type Microcontroller | ||
Series SAM4S | ||
Package Type LQFP | ||
Mount Type Surface | ||
Pin Count 48 | ||
Device Core ARM Cortex M4 | ||
Data Bus Width 16bit | ||
Program Memory Size 256kB | ||
Maximum Clock Frequency 120MHz | ||
RAM Size 64kB | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Analogue Comparators 1 | ||
Length 7mm | ||
Number of Programmable I/Os 34 | ||
Width 7 mm | ||
Height 1.45mm | ||
Minimum Supply Voltage 1.62V | ||
Number of Timers 6 | ||
Program Memory Type FLASH | ||
ADCs 8 x 12 Bit | ||
Automotive Standard No | ||
Instruction Set Architecture RISC | ||
The Microchip Atmel® SMART SAM4S series is a member of a family of Flash microcontrollers based on the high-performance 32-bit ARM® Cortex®-M4 RISC processor. It operates at a maximum speed of 120 MHz and features up to 2048 Kbytes of Flash, with optional dual-bank implementation and cache memory, and up to 160 Kbytes of SRAM.
ARM Cortex-M4 with 2 Kbytes of cache running at up to 120 MHz
Memory Protection Unit (MPU)
DSP Instruction Set
Thumb®-2 instruction set
Up to 2048 Kbytes embedded Flash with optional dual-bank and cache memory, ECC, Security Bit and Lock Bits
Up to 160 Kbytes embedded SRAM
16 Kbytes ROM with embedded boot loader routines (UART, USB) and IAP routines
8-bit Static Memory Controller (SMC): SRAM, PSRAM, NOR and NAND Flash support
