Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	STMicroelectronics
	Family Name	STM32F0
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	48
	Device Core	ARM Cortex M0
	Data Bus Width	32bit
	Program Memory Size	128 kB
	Maximum Frequency	48MHz
	RAM Size	16 kB
	USB Channels	1
	Number of SPI Channels	2
	Number of USART Channels	4
	Typical Operating Supply Voltage	1.65 → 3.6 V
	Number of I2C Channels	2
	Height	1.45mm
	Width	7.2mm
	Length	7.2mm
	ADCs	13 x 12 bit
	Instruction Set Architecture	RISC
	Dimensions	7.2 x 7.2 x 1.45mm
	Minimum Operating Temperature	-40 °C
	Number of ADC Units	1
	Program Memory Type	Flash
	Maximum Operating Temperature	+85 °C

	Välj alla
	Brand STMicroelectronics
	Family Name STM32F0
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 48
	Device Core ARM Cortex M0
	Data Bus Width 32bit
	Program Memory Size 128 kB
	Maximum Frequency 48MHz
	RAM Size 16 kB
	USB Channels 1
	Number of SPI Channels 2
	Number of USART Channels 4
	Typical Operating Supply Voltage 1.65 → 3.6 V
	Number of I2C Channels 2
	Height 1.45mm
	Width 7.2mm
	Length 7.2mm
	ADCs 13 x 12 bit
	Instruction Set Architecture RISC
	Dimensions 7.2 x 7.2 x 1.45mm
	Minimum Operating Temperature -40 °C
	Number of ADC Units 1
	Program Memory Type Flash
	Maximum Operating Temperature +85 °C

The STM32F078CB/RB/VB microcontrollers incorporate the high-performance Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (128 Kbytes of Flash memory and 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (two I2Cs, two SPI/I2S, one HDMI CEC and four USARTs), one USB Full-speed device (crystal-less), one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

The STM32F078CB/RB/VB microcontrollers include devices in seven different packages ranging from 48 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included.

These features make the STM32F078CB/RB/VB microcontrollers suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.

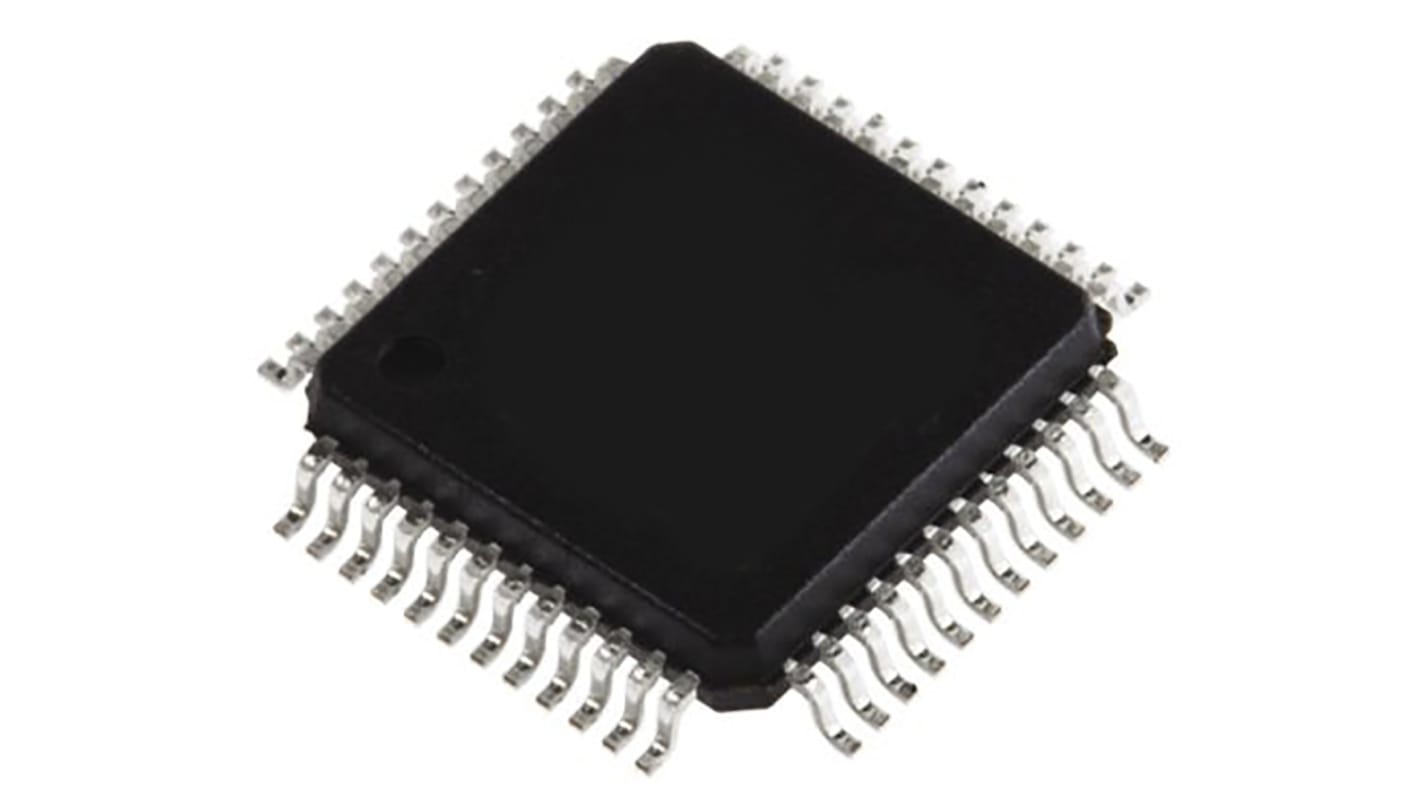

STMicroelectronics, 32bit ARM Cortex M0, STM32F0 Microcontroller, 48MHz, 128 kB Flash, 48-Pin LQFP
