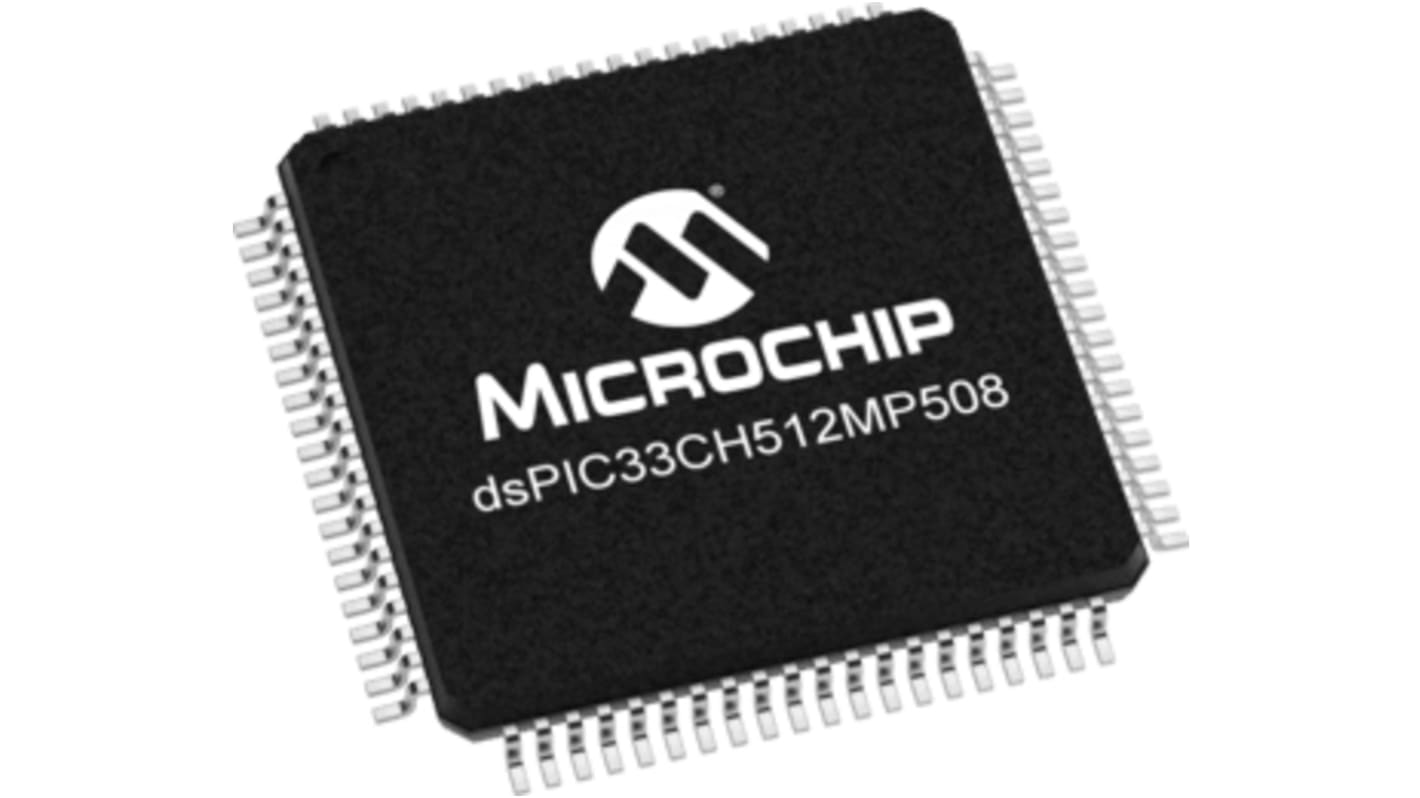

Microchip, 16 bit dsPIC, dsPIC33CH Microcontroller, 200 MHz, 512kB FLASH, 80-Pin TQFP

RS-artikelnummer:: 187-1562
Tillv. art.nr:: DSPIC33CH512MP508-I/PT
Tillverkare / varumärke:: Microchip

Microchip, 16 bit dsPIC, dsPIC33CH Microcontroller, 200 MHz, 512kB FLASH, 80-Pin TQFP

Antal (1 fack med 119 enheter)*

3 438,624 kr

(exkl. moms)

4 298,28 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

Leverans från den 06 april 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Bricka*
119 +	28,896 kr	3 438,62 kr

*vägledande pris

RS-artikelnummer:: 187-1562
Tillv. art.nr:: DSPIC33CH512MP508-I/PT
Tillverkare / varumärke:: Microchip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Microchip
	Series	dsPIC33CH
	Product Type	Microcontroller
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	80
	Device Core	dsPIC
	Data Bus Width	16bit
	Program Memory Size	512kB
	Interface Type	QEI, SPI
	DACs	4 x 12 Bit
	Maximum Clock Frequency	200MHz
	RAM Size	48kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Number of Programmable I/Os	69
	Analogue Comparators	4
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Height	1mm
	Width	12 mm
	Length	12mm
	Minimum Supply Voltage	3V
	Program Memory Type	FLASH
	ADCs	18 x 12 Bit
	Automotive Standard	AEC-Q100
	Number of Timers	1
	Instruction Set Architecture	DSP

	Välj alla
	Brand Microchip
	Series dsPIC33CH
	Product Type Microcontroller
	Package Type TQFP
	Mount Type Surface
	Pin Count 80
	Device Core dsPIC
	Data Bus Width 16bit
	Program Memory Size 512kB
	Interface Type QEI, SPI
	DACs 4 x 12 Bit
	Maximum Clock Frequency 200MHz
	RAM Size 48kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Number of Programmable I/Os 69
	Analogue Comparators 4
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Height 1mm
	Width 12 mm
	Length 12mm
	Minimum Supply Voltage 3V
	Program Memory Type FLASH
	ADCs 18 x 12 Bit
	Automotive Standard AEC-Q100
	Number of Timers 1
	Instruction Set Architecture DSP

Datasheet DSPIC33CH512MP508-I/PT

The Microchip dsPIC33CH512MP508 digital signal controllers (DSCs) feature dual 90 & 100 MIPS 16-bit dsPIC® DSC cores with integrated DSP and enhanced on-chip peripherals. It operates on 3V to 3.6V voltage range. It has 512-Kbyte Program Memory, 48KB DSC enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation and provide extended motor life. It can be used to control BLDC, PMSM, ACIM, SR and stepper motors. This DSC enable the design of switched mode power supplies such as AC/DC, DC/DC, UPS and PFC, providing high-precision digital control of Buck, Boost, Fly-Back, Half-Bridge, Full-Bridge, LLC and other power circuits to reach the highest possible energy efficiency.

Master Core 90 MIPS and Slave Core 100 MIPS Operation

Independent Peripherals for Master Core and Slave Core

High Speed PWMs with 250ps resolution, 12x2 Channel

Configurable Shared Resources for Master Core and Slave Core

Fast 6-Cycle Divide

Zero Overhead Looping

Multiple redundant clock sources

I/O Port read-back

Analog peripherals redundancies

Windowed Watchdog Timer

RAM BIST

Hardware traps

SFR locks

Write protection

Shadow working registers

Temperature range between -40°C to +85°C

Plastic Thin Quad Flatpack – (64-pin) 10x10 mm body (TQFP)
