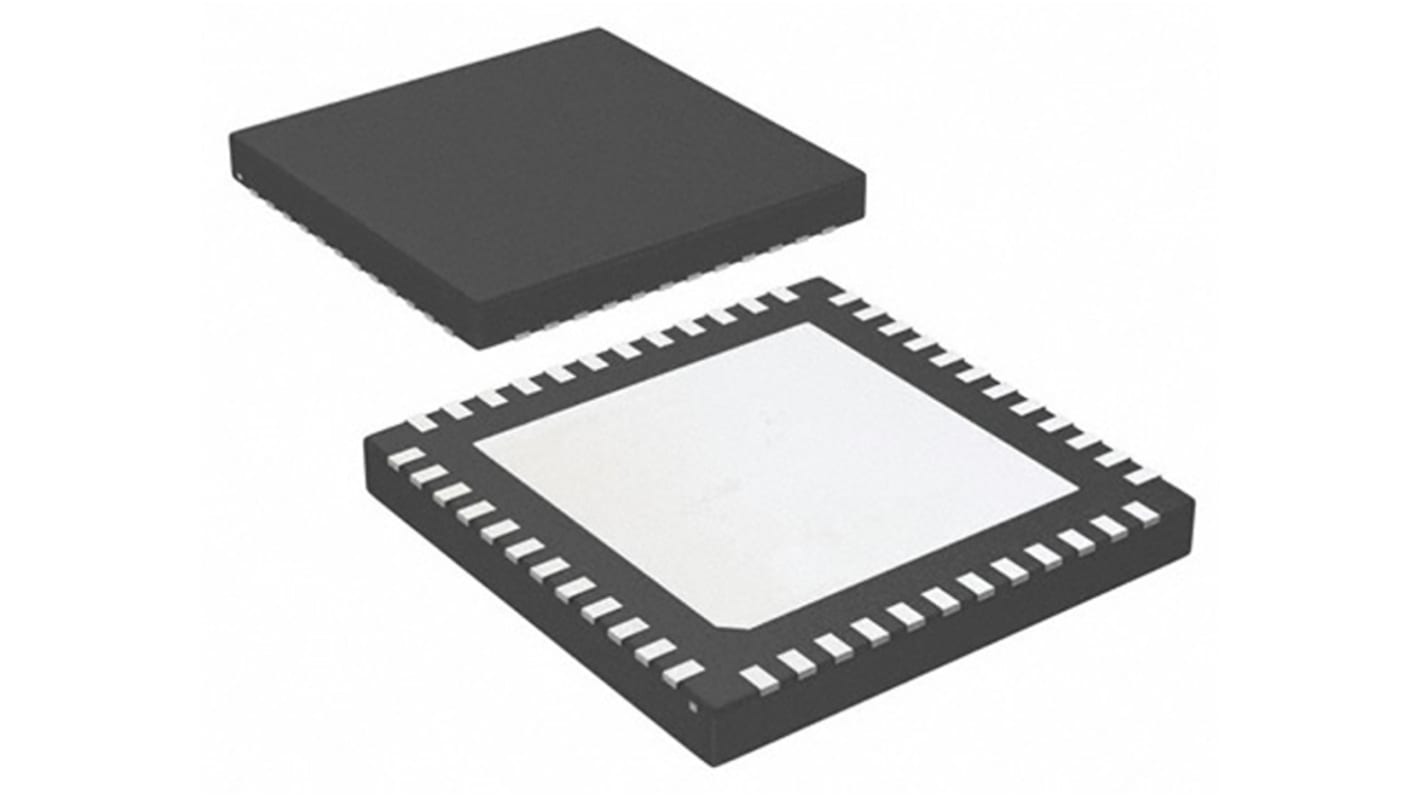

Renesas Electronics, 16 bit RL78, RL78/G1D Microcontroller, 32 MHz, 128kB FLASH, 48-Pin WQFN

Se alla Microcontrollers

Antal (1 fack med 490 enheter)*

104 671,84 kr

(exkl. moms)

130 839,80 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 27 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Bricka*
490 +213,616 kr104 671,84 kr

*vägledande pris

RS-artikelnummer:
179-8491
Tillv. art.nr:
R5F11AGGDNB#20
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Product Type

Microcontroller

Series

RL78/G1D

Package Type

WQFN

Mount Type

Surface

Pin Count

48

Device Core

RL78

Data Bus Width

16bit

Program Memory Size

128kB

Maximum Clock Frequency

32MHz

RAM Size

12kB

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Expanded Memory Size

1MB

Number of Programmable I/Os

32

Maximum Operating Temperature

85°C

Length

6.1mm

Width

6.1 mm

Standards/Approvals

RoHS

Height

0.8mm

Minimum Supply Voltage

1.6V

Number of Timers

2

ADCs

8 x 10 Bit

Automotive Standard

No

Program Memory Type

FLASH

Instruction Set Architecture

CISC

Bluetooth® low energy microcontrollers for smart connectivity, with the lowest level of current consumption in the industry. Compact module with built-in 32 MHz crystal resonator for RF chip and antenna (already certified) is also available.

Low Power Technology (3.0V / MCU part: STOP ):

RF transmitter active: 4.3 mA (TYP.)

RF receiver active: 3.5 mA (TYP.)

On-Chip RF Transceiver:

Bluetooth v4.2 Specification (Low Energy Single mode)

2.4 GHz ISM Band, GFSK modulation, TDMA/TDD Frequency Hopping (included AES encryption circuit)

Adaptivity, exclusively for use in operation as a slave device

Single ended RF interface

16-bit RL78-S2 CPU Core

Main Flash Memory:

128 KB / 192KB / 256 KB (Block size: 1 KB)

On-chip single voltage flash memory with protection from block erase/writing

Self-programming with secure boot swap function and flash shield window function

RAM:

12 KB / 16KB / 20 KB size

Supports operands or instructions

Back-up retention in all modes
