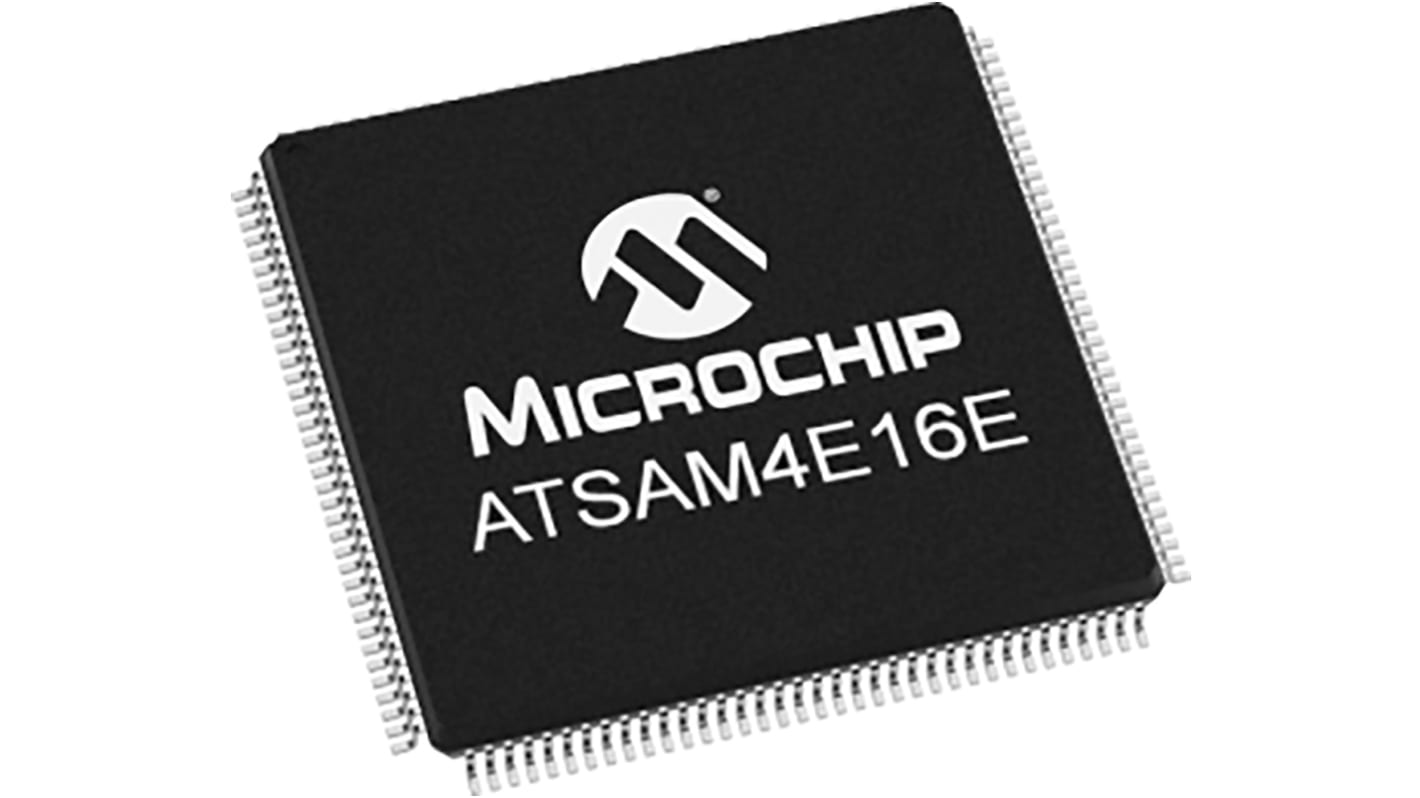

Microchip Technology ATSAM4E16EA-AN, 32bit Microcontroller, 120MHz, 1.024 MB Flash, 144-Pin LQFP

  • RS-artikelnummer 177-3680
  • Tillv. art.nr ATSAM4E16EA-AN
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

ARM® Cortex®-M4 processor-based microcontroller (MCU), the SAM4E16C features a FPU and a high data bandwidth architecture and is targeted at industrial automation and building control applications. The device embeds 1MB Flash and features multiple networking/connectivity peripherals, including 2.0A/B compatible CAN interface and one IEEE Std 1588-compatible 10/100Mbps Ethernet MAC.

Microcontroller Features
Core
ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture
High-density 16-bit Instruction Set
EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
Memories
128Kb, Organized in 512 Pages of 256 Bytes (Single Plane)
32Kb embedded SRAM, Single-cycle Access at Maximum Speed
MC
MPU
System
Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
Low-power RC Oscillator, 3 to 20MHz On-chip Oscillator and One PLL
PMC
AIC
Two-wire UART and Support for Debug

Specifikationer
Attribute Value
Family Name ATSAM
Package Type LQFP
Mounting Type Surface Mount
Pin Count 144
Data Bus Width 32bit
Program Memory Size 1.024 MB
Maximum Frequency 120MHz
RAM Size 128 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 24
Number of SPI Channels 3
Typical Operating Supply Voltage 3.6 (Maximum) V
Program Memory Type Flash
Pulse Width Modulation 1 (4 x 16 bit)
Dimensions 20 x 20 x 1.45mm
Number of Ethernet Channels 1
Number of UART Channels 2
PWM Resolution 16bit
Instruction Set Architecture Harvard
Minimum Operating Temperature -40 °C
ADC Resolution 16bit
Maximum Number of Ethernet Channels 1
Maximum Operating Temperature +105 °C
Number of ADC Units 1
Number of CAN Channels 2
Number of Timers 1
Number of I2C Channels 2
Length 20mm
Timers 1 (9 x 16 bit)
ADCs 1 (24 x 16 bit)
Timer Resolution 16bit
Height 1.45mm
PWM Channels 4
Width 20mm
Data Rate 400kbit/s
Number of USART Channels 2
