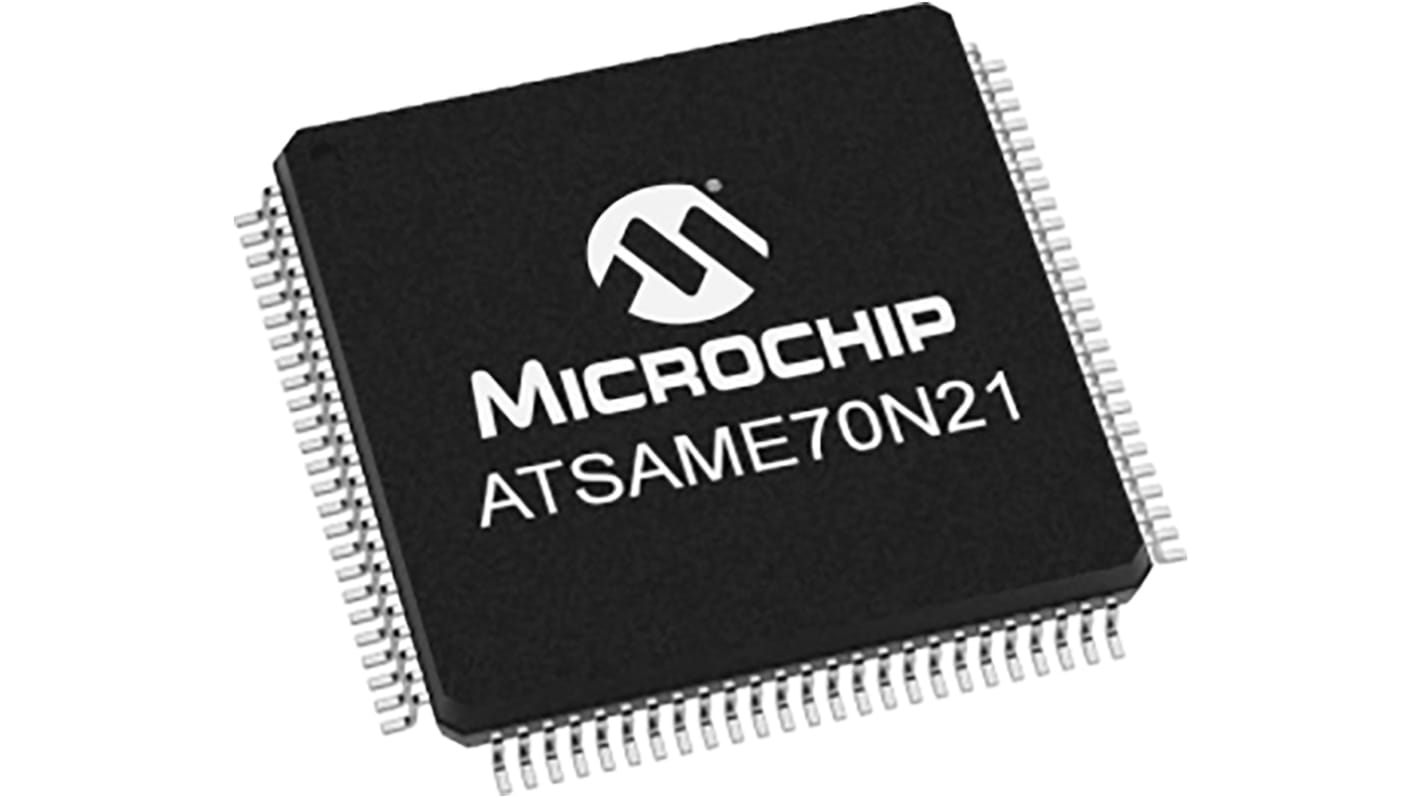

Microchip, 32bit ARM Cortex M7, ATSAM Microcontroller, 300MHz, 2.048 MB Flash, 100-Pin LQFP

Se alla Microcontrollers

Antal (1 fack med 90 enheter)*

11 962,98 kr

(exkl. moms)

14 953,68 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 28 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Bricka*
90 +132,922 kr11 962,98 kr

*vägledande pris

RS-artikelnummer:
177-3484
Tillv. art.nr:
ATSAME70N21A-AN
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Family Name

ATSAM

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

ARM Cortex M7

Data Bus Width

32bit

Program Memory Size

2.048 MB

Maximum Frequency

300MHz

RAM Size

384 kB

USB Channels

1

Number of PWM Units

2 x 16 bit

Number of SPI Channels

3

Number of I2C Channels

3

Number of UART Channels

5

Number of CAN Channels

2

Typical Operating Supply Voltage

3.6 (Maximum) V

Number of USART Channels

3

Instruction Set Architecture

DSP

Maximum Number of Ethernet Channels

1

Dimensions

14 x 14 x 1.4mm

ADCs

10 x 12 bit

Length

14mm

Pulse Width Modulation

2 (4 x 16 bit)

Number of ADC Units

1

Automotive Standard

AEC-Q100

Maximum Operating Temperature

+105 °C

Width

14mm

Minimum Operating Temperature

-40 °C

Height

1.4mm

Program Memory Type

Flash

Number of LIN Channels

1

Number of PCI Channels

0

Number of Ethernet Channels

1

COO (Country of Origin):
TW
The Microchip SAME70N21 devices are members of a flash microcontrollers family based on the high-performance 32-bit ARM Cortex-M7 processor with FPU. These devices operate at up to 300MHz and feature up to 2048Kb of Flash, up to 384Kb of multi-port SRAM and configurable Instruction and Data Tightly Couple Memories to leverage the advanced DSP capabilities of the core. SAME70N21 features multiple networking/connectivity peripherals, including CAN-FD interface and one 1O/100Mbps Ethernet MAC with specific hardware support for Audio Video Bridging (AVB).

ARM® Cortex®-M7 running 300MHz
16Kb of ICache and 16Kb of DCache with ECC
Single- and double-precision HW FPU
MPU with 16 zones
DSP Instructions, Thumb®-2 Instruction Set
Embedded Trace Module with instruction trace stream, including Trace Port Interface Unit
1024Kb embedded Flash with unique identifier and user signature for user-defined data
