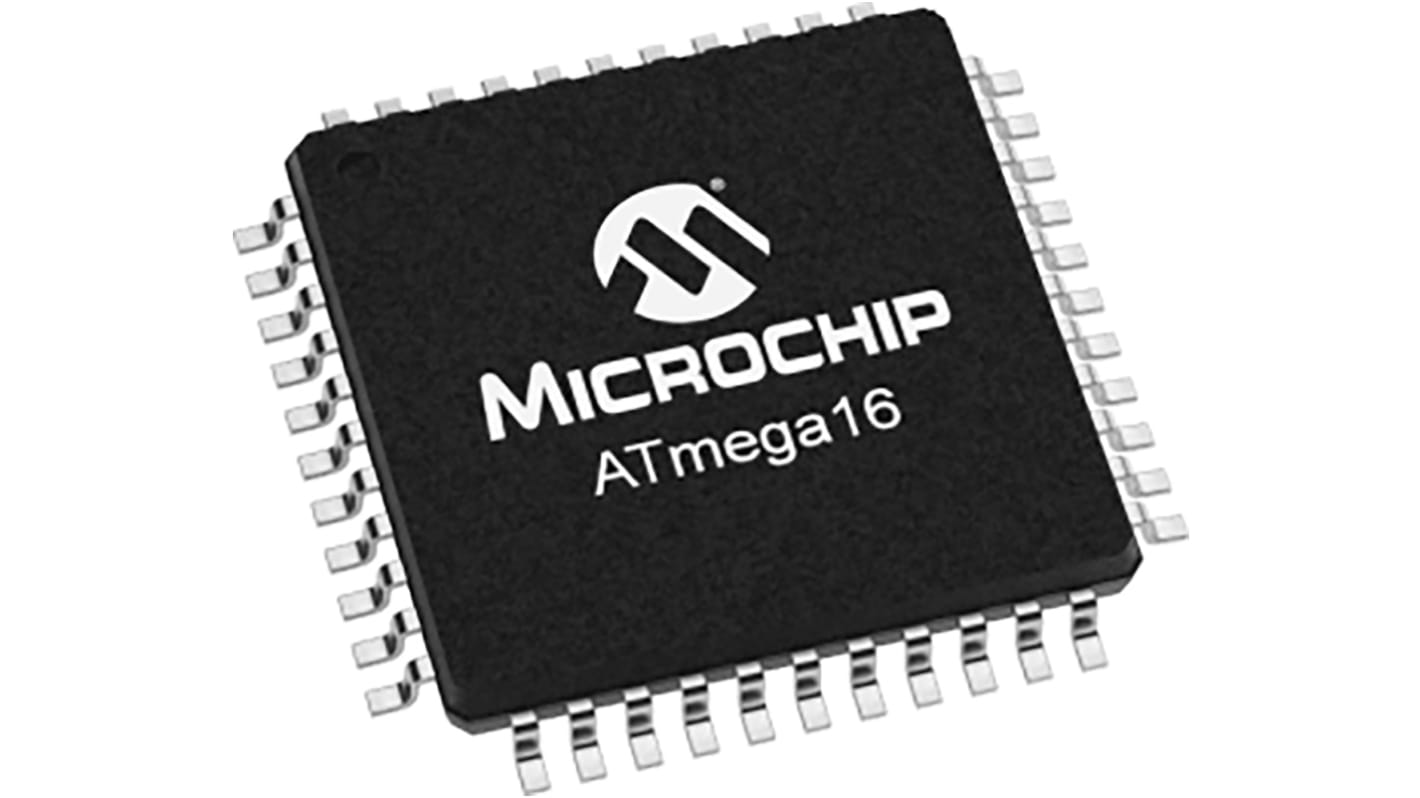

Microchip, 8bit AVR, ATmega Microcontroller, 16MHz, 16 kB Flash, 44-Pin TQFP

Se alla Microcontrollers

Antal (1 fack med 160 enheter)*

8 709,12 kr

(exkl. moms)

10 886,40 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
Per Bricka*
160 +54,432 kr8 709,12 kr

*vägledande pris

RS-artikelnummer:
177-3440
Tillv. art.nr:
ATMEGA16-16AU
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Family Name

ATmega

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

44

Device Core

AVR

Data Bus Width

8bit

Program Memory Size

16 kB

Maximum Frequency

16MHz

RAM Size

1 kB

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

1

Number of USART Channels

1

Number of UART Channels

1

Typical Operating Supply Voltage

5.5 (Maximum) V

Number of I2C Channels

1

Number of CAN Channels

0

Maximum Number of Ethernet Channels

0

Instruction Set Architecture

RISC

Minimum Operating Temperature

-40 °C

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of ADC Units

1

Length

10.1mm

ADCs

8 x 10 bit

Number of Ethernet Channels

0

Height

1.05mm

Width

10.1mm

Dimensions

10.1 x 10.1 x 1.05mm

Pulse Width Modulation

1 (4 Channel)

Microchip Technology Microcontroller


The Microchip technology ATMEGA family type, TQFP package, surface mount, 44-pin CMOS 8-bit microcontroller has a maximum voltage rating of 5.5V. This microcontroller operates at a maximum speed of 16MHz and features 16kb of flash program memory, 1kb of internal SRAM and 512 bytes EEPROM. It has 32 programmable I/O lines.

Features and Benefits


• 4-bit PWM channels
• 8-channel, 10-bit ADC
• Dual 8-bit timers/counters
• Fully static operation
• High endurance non-volatile memory segments
• High-performance 8-bit Advanced RISC Architecture
• High-performance, low power
• On-chip 2-cycle multiplier
• Operating temperature ranges between -40°C and 85°C
• Sleep modes- Idle, power-save, power-down and standby
• Two-wire UART serial communication mode for general-purpose
• Write/erase cycles- 10,000 flash/100,000 EEPROM

Applications


• Embedded systems
• LCD monitors and TVs
• Mobile PC docking
• PC motherboards
• Portable hub boxes
• Printers and scanners
