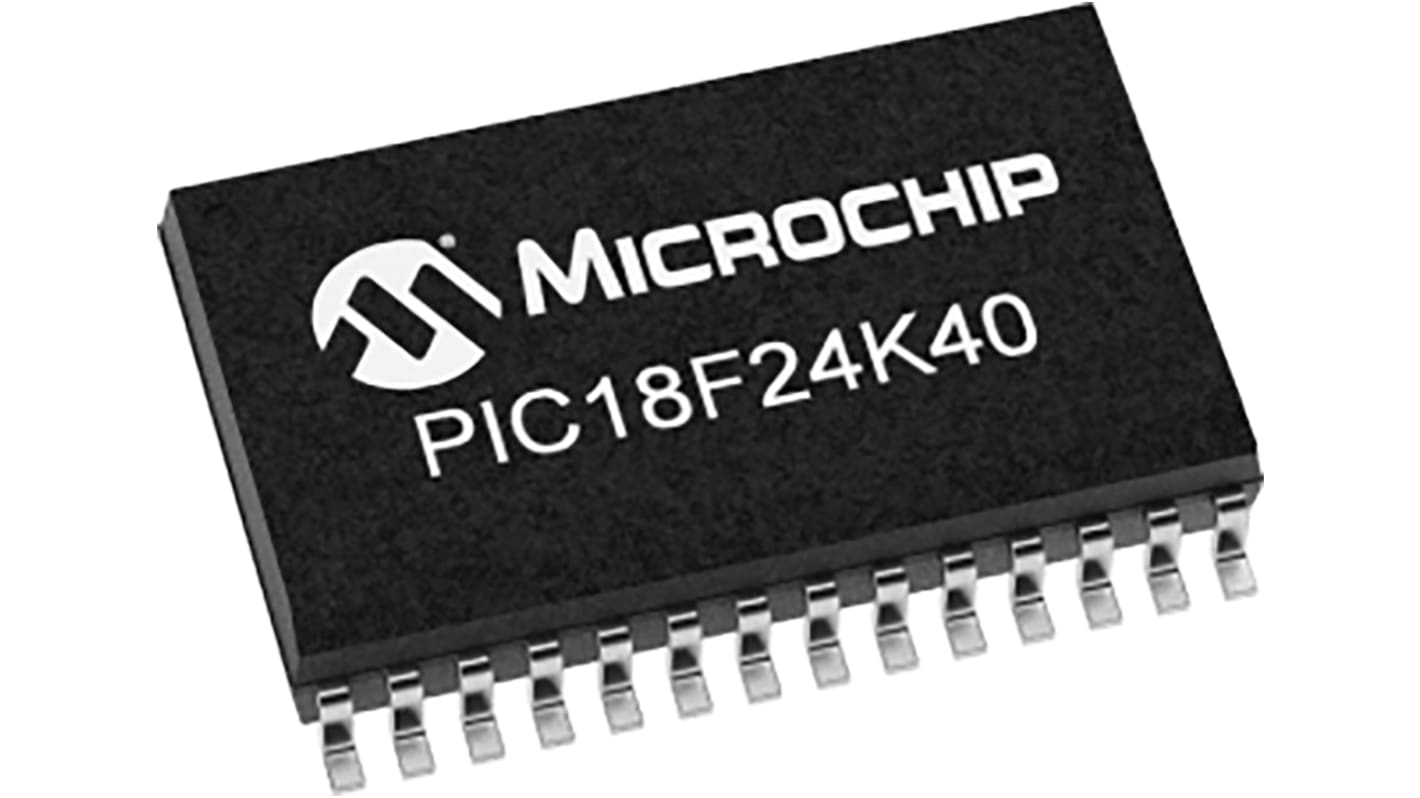

Microchip Technology PIC18F24K40-I/SO, 8bit PIC Microcontroller, 64MHz, 16 kB Flash, 28-Pin SOIC

  • RS-artikelnummer 177-2696
  • Tillv. art.nr PIC18F24K40-I/SO
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TH
Produktdetaljer

PIC18(L)F24K40 microcontrollers combine large Flash/EE/RAM memory, rich peripheral integration, XLP and 5V support to suit a variety of general purpose applications. These 28-pin devices deliver Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, Hardware CVD, Zero-Cross Detect and Peripheral Pin Select, providing for increased design flexibility and lower system cost.

PIC18 Core with 83 Instructions, 31 Stack Levels
Internal 64MHz oscillator
Operating Voltage Range:- ’F’ Version (2.3V – 5.5V)- Low Power ’LF’ variant (1.8V –3.6V)

Specifikationer
Attribute Value
Family Name PIC18F
Package Type SOIC
Mounting Type Surface Mount
Pin Count 28
Device Core PIC
Data Bus Width 8bit
Program Memory Size 16 kB
Maximum Frequency 64MHz
RAM Size 1 kB
Number of PWM Units 1
ADC Channels 24
Number of SPI Channels 1
Typical Operating Supply Voltage 5.5 (Maximum) V
Dimensions 17.9 x 7.5 x 2.35mm
Length 17.9mm
Pulse Width Modulation 1 (2 x 10 bit)
Number of UART Channels 1
ADC Resolution 10bit
Number of Timers 1
PWM Resolution 10bit
Number of ADC Units 1
PWM Channels 2
Number of I2C Channels 1
Timers 1 (4 x 16 bit)
Height 2.35mm
Timer Resolution 16bit
Number of USART Channels 1
ADCs 1 (24 x 10 bit)
Width 7.5mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Program Memory Type Flash
160 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
11,467 kr
(exkl. moms)
14,334 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 20
11,467 kr
114,67 kr
30 +
11,157 kr
111,57 kr
