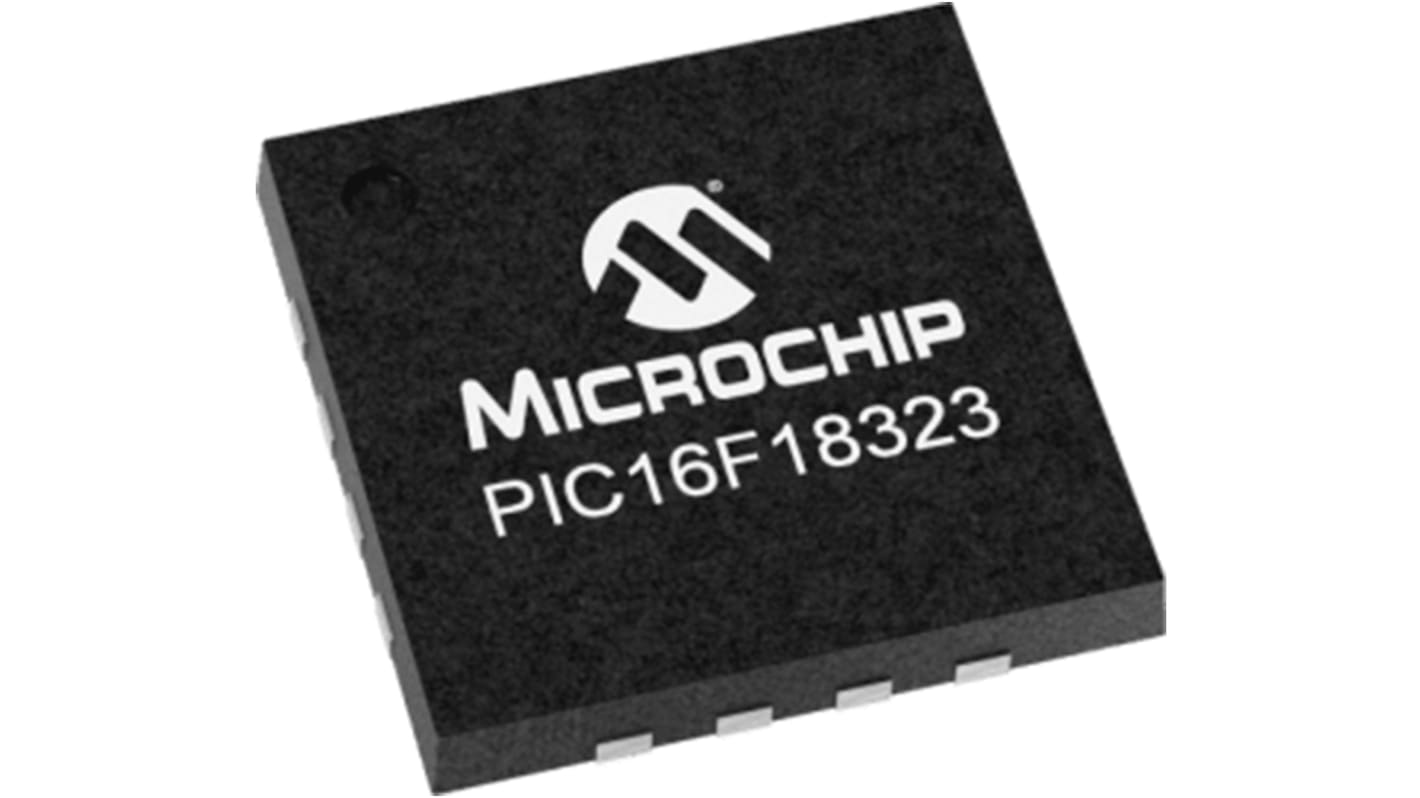

Microchip PIC16F18323-I/JQ, 8bit PIC Microcontroller, PIC16F, 32MHz, 3.5 kB Flash, 16-Pin UQFN
- RS-artikelnummer:
- 177-2620
- Tillv. art.nr:
- PIC16F18323-I/JQ
- Tillverkare / varumärke:
- Microchip
Denna produkt har utgått
- RS-artikelnummer:
- 177-2620
- Tillv. art.nr:
- PIC16F18323-I/JQ
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
PIC16F18323 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications.
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
2x Configurable Logic Controller (CLC)
11 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparators
2x 8-bit Timers (TMR0/TMR2)
1x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
PIC16LF18323 (1.8V – 3.6V)
PIC16F18323 (2.3V – 5.5V)
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
2x Configurable Logic Controller (CLC)
11 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparators
2x 8-bit Timers (TMR0/TMR2)
1x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
PIC16LF18323 (1.8V – 3.6V)
PIC16F18323 (2.3V – 5.5V)
Specifikationer
Attribute | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 1 |
| Number of USART Channels | 1 |
| Number of UART Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 4 x 4 x 0.5mm |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Height | 0.5mm |
| Number of ADC Units | 1 |
| Length | 4mm |
| ADCs | 11 x 10 bit |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Width | 4mm |
