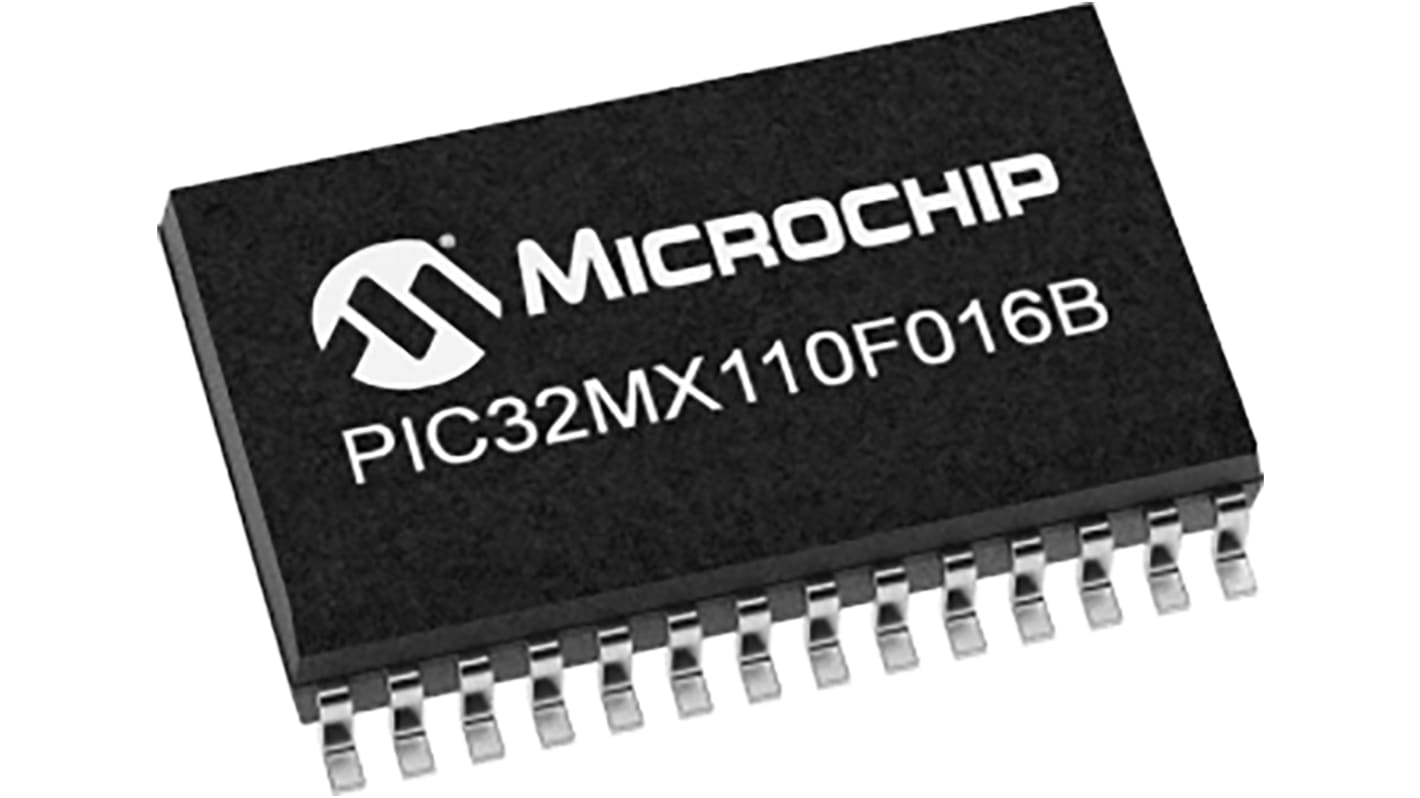

Microchip Technology PIC32MX110F016B-I/SO, 32bit PIC Microcontroller, 50MHz, 16 kB Flash, 28-Pin SOIC

  • RS-artikelnummer 177-2563
  • Tillv. art.nr PIC32MX110F016B-I/SO
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TH
Produktdetaljer

Key Features:
40 MHz, 32-bit RISC CPU with less than 0.5 mA/MHz current consumption
Two I2S/SPI modules for Codec and serial communications
Peripheral Pin Select (PPS) functionality
Parallel Master Port (PMP) for graphics interfaces
Charge Time Measurement Unit (CTMU) for mTouchTM Capacitive touch buttons and sliders
Temperature Range - 40°C to 105°C
Microcontroller Features:
Operating voltage range of 2.3V to 3.6V
Up to 32KB Flash memory (plus an additional 3 KB of Boot Flash)
Up to 8K SRAM memory
1.56 DMIPS/MHz (Dhrystone 2.1) performance
MIPS32® M4K® core with MIPS16e® mode for up to 40% smaller code size
Pin-compatible with most Microchip 16-bit devices
Multiple power management modes
Configurable WDT with on-chip Low-Power RC oscillator for reliable operation
Peripheral Features:
Peripheral Pin Select (PPS) functionality
Up to 4 channels of hardware DMA with automatic data size detection
Two UART and I2C™ modules
Separate PLLs for CPU and USB clocks

Specifikationer
Attribute Value
Family Name PIC32
Package Type SOIC
Mounting Type Surface Mount
Pin Count 28
Device Core PIC
Data Bus Width 32bit
Program Memory Size 16 kB
Maximum Frequency 50MHz
RAM Size 4 kB
Number of PWM Units 1
ADC Channels 10
Number of SPI Channels 2
Typical Operating Supply Voltage 3.6 (Maximum) V
PWM Channels 4
Width 7.5mm
ADCs 1 (10 x 10 bit)
Instruction Set Architecture MIPS32
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Number of I2C Channels 2
Timers 1 (2 x 32 bit), 1 (5 x 16 bit)
Automotive Standard AEC-Q100
Height 2.35mm
Timer Resolution 16 bit, 32 bit
Maximum Operating Temperature +85 °C
ADC Resolution 10bit
Number of UART Channels 2
Pulse Width Modulation 1 (4 x 16 bit)
Length 17.9mm
Dimensions 17.9 x 7.5 x 2.35mm
Number of Timers 2
PWM Resolution 16bit
Number of ADC Units 1
15 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
19,356 kr
(exkl. moms)
24,195 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 5
19,356 kr
96,78 kr
10 - 20
17,97 kr
89,85 kr
25 - 95
17,474 kr
87,37 kr
100 +
16,006 kr
80,03 kr
