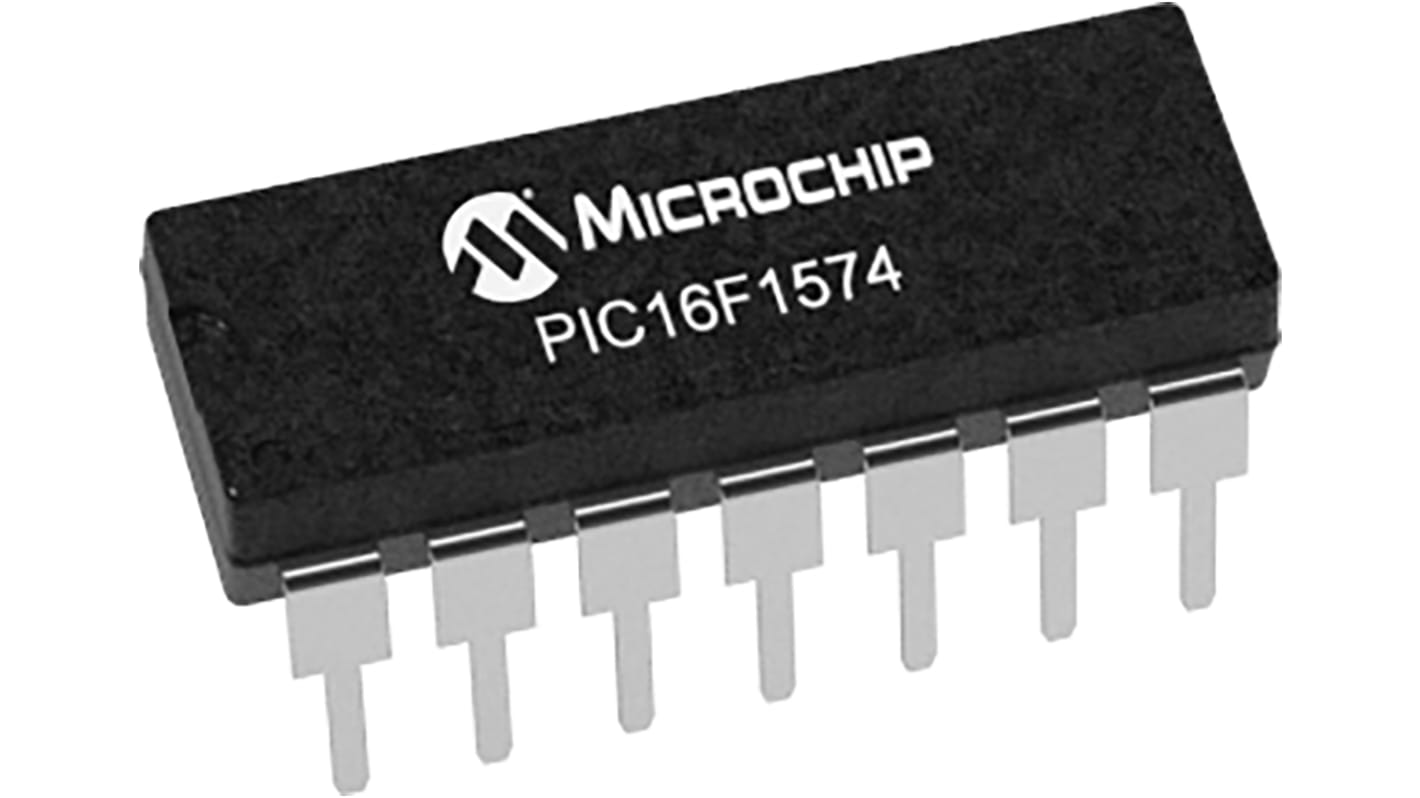

Microchip PIC16F1574-I/P, 8 bit PIC, PIC16F1574 Microcontroller, 32 MHz, 7kB FLASH, 14-Pin PDIP

RS-artikelnummer:: 177-2046
Tillv. art.nr:: PIC16F1574-I/P
Tillverkare / varumärke:: Microchip

Microchip PIC16F1574-I/P, 8 bit PIC, PIC16F1574 Microcontroller, 32 MHz, 7kB FLASH, 14-Pin PDIP

Antal (1 rör med 30 enheter)*

374,76 kr

(exkl. moms)

468,45 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Sista RS lager

Slutlig(a) 300 enhet(er), redo att levereras

Enheter	Per enhet	Per Rør*
30 +	12,492 kr	374,76 kr

*vägledande pris

RS-artikelnummer:: 177-2046
Tillv. art.nr:: PIC16F1574-I/P
Tillverkare / varumärke:: Microchip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Microchip
	Series	PIC16F1574
	Product Type	Microcontroller
	Package Type	PDIP
	Mount Type	Through Hole
	Pin Count	14
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	7kB
	Interface Type	EUSART
	Maximum Clock Frequency	32MHz
	RAM Size	512bit
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Analogue Comparators	2
	DACs	1 x 5 Bit
	Maximum Power Dissipation Pd	800mW
	Number of Programmable I/Os	12
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Length	19.56mm
	Height	4.83mm
	Width	7.11 mm
	Minimum Supply Voltage	2.3V
	Instruction Set Architecture	RISC
	Automotive Standard	No
	Program Memory Type	FLASH
	ADCs	8 x 10 Bit
	Number of Timers	2

	Välj alla
	Brand Microchip
	Series PIC16F1574
	Product Type Microcontroller
	Package Type PDIP
	Mount Type Through Hole
	Pin Count 14
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 7kB
	Interface Type EUSART
	Maximum Clock Frequency 32MHz
	RAM Size 512bit
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Analogue Comparators 2
	DACs 1 x 5 Bit
	Maximum Power Dissipation Pd 800mW
	Number of Programmable I/Os 12
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Length 19.56mm
	Height 4.83mm
	Width 7.11 mm
	Minimum Supply Voltage 2.3V
	Instruction Set Architecture RISC
	Automotive Standard No
	Program Memory Type FLASH
	ADCs 8 x 10 Bit
	Number of Timers 2

Datasheet

COO (Country of Origin):: TH

PIC16(L)F157X microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications. These devices deliver four 16-bit PWMs with independent timers, for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general-purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator) and Analog (ADCs, Comparator and DAC) can be configured for closed loop feedback control or other application needs.

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

Flash Program Memory with self read/write capability

High Endurance Flash memory in lower byte of last 128 addresses of Program Memory (100,000 Writes min.)

Internal clock speeds from 31kHz to 32MHz

4x Standalone 16-bit PWMs

Complementary Waveform Generator (CWG)

8 Channel 10-bit ADC with Voltage Reference

5-bit Digital to Analog Converter (DAC)

2x Comparator

2x 8-bit Timers (TMR0/TMR2)

1x 16-bit Timer (TMR1)
