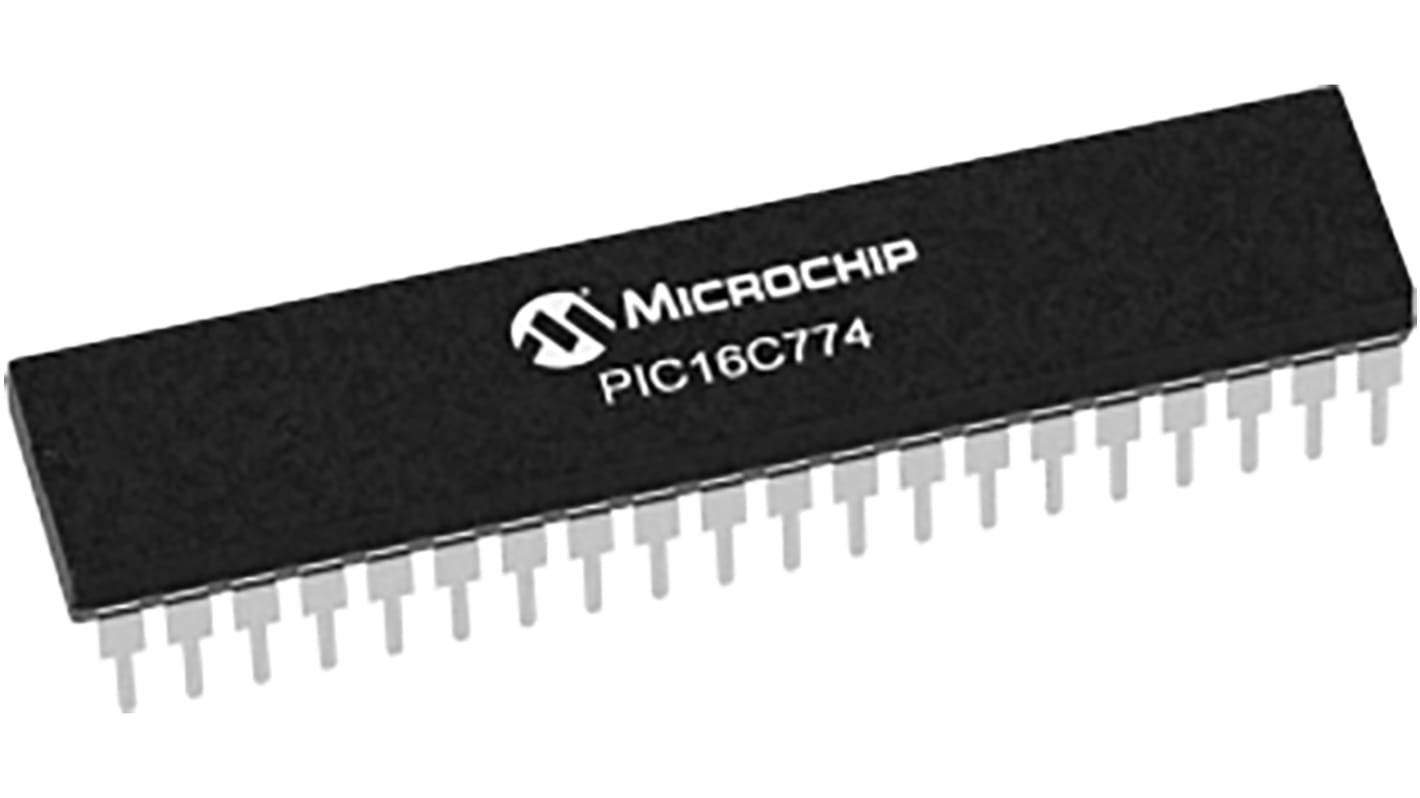

Microchip Technology PIC16C774-I/P, 8bit PIC Microcontroller, 20MHz, 7 kB Flash, 40-Pin PDIP

  • RS-artikelnummer 177-2026
  • Tillv. art.nr PIC16C774-I/P
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X and PIC12CXXX devices. The PIC16C774 features 10 channels of 12-bit Analog-to-Digital (A/D) converter giving designers the ability to discriminate smaller signal changes and eliminate the need for external circuitry for high precision measurement of analog signals. With 2 additional timers, 2 enhanced capture/compare/PWM function, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for the most sophisticated applications requiring higher levels of A/D in automotive, industrial, appliances and consumer applications.

Specifikationer
Attribute Value
Family Name PIC16C
Package Type PDIP
Mounting Type Through Hole
Pin Count 40
Device Core PIC
Data Bus Width 8bit
Program Memory Size 7 kB
Maximum Frequency 20MHz
RAM Size 256 B
Number of PWM Units 1
ADC Channels 10
Number of SPI Channels 1
Typical Operating Supply Voltage 5.5 (Maximum) V
PWM Channels 2
Minimum Operating Temperature -40 °C
Program Memory Type Flash
ADC Resolution 12bit
Number of UART Channels 1
Width 13.72mm
Pulse Width Modulation 1 (2 x 10 bit)
Length 51.38mm
ADCs 1 (10 x 12 bit)
Number of USART Channels 1
Dimensions 51.38 x 13.72 x 3.04mm
Instruction Set Architecture RISC
Number of ADC Units 1
PWM Resolution 10bit
Number of Timers 2
Number of I2C Channels 1
Timers 1 (1 x 16 bit), 1 (2 x 8 bit)
Maximum Operating Temperature +85 °C
Timer Resolution 8 bit, 16 bit
Height 3.04mm
16 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tube of 10)
61,027 kr
(exkl. moms)
76,284 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
10 - 20
61,027 kr
610,27 kr
30 +
59,507 kr
595,07 kr
