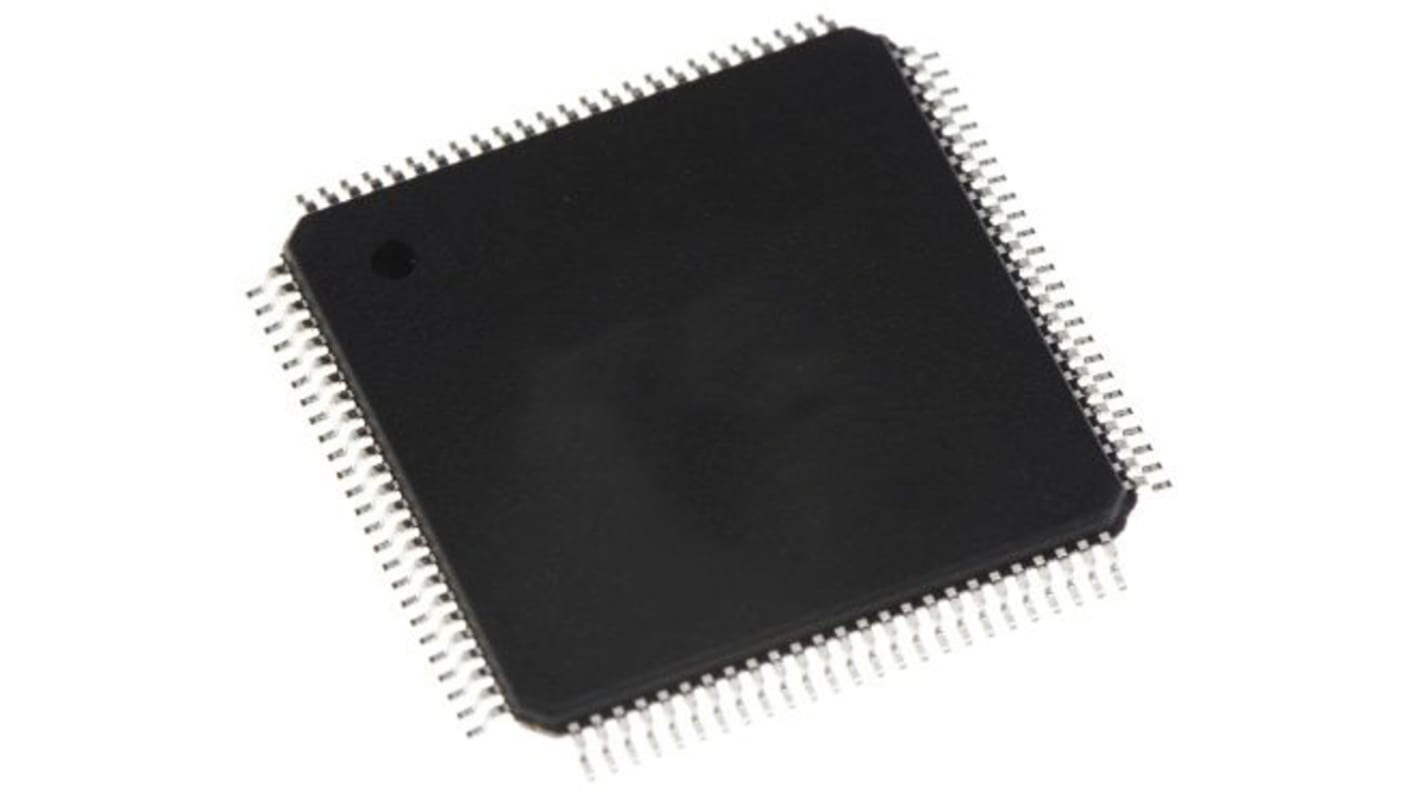

Cypress Semiconductor, 32bit ARM Cortex M3, CY8C54LP Microcontroller, 80MHz, 256 kB Flash, 100-Pin TQFP

Se alla Microcontrollers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
177-1152
Tillv. art.nr:
CY8C5468AXI-LP106
Tillverkare / varumärke:
Cypress Semiconductor
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Cypress Semiconductor

Family Name

CY8C54LP

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

ARM Cortex M3

Data Bus Width

32bit

Program Memory Size

256 kB

Maximum Frequency

80MHz

RAM Size

64 kB

USB Channels

1

Number of PWM Units

1 x 16 bit

Number of SPI Channels

2

Number of I2C Channels

1

Typical Operating Supply Voltage

1.8 → 5.5 V

Number of CAN Channels

0

Number of UART Channels

1

Minimum Operating Temperature

-40 °C

Width

14mm

Instruction Set Architecture

Thumb-2

Maximum Number of Ethernet Channels

0

Dimensions

14 x 14 x 1.4mm

ADCs

1 x 12 bit

Length

14mm

Pulse Width Modulation

1 (4 x 16 bit)

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Data Rate

100kbit/s

Height

1.4mm

Program Memory Type

Flash

Number of LIN Channels

1

Number of PCI Channels

0

Number of Ethernet Channels

0

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. PsoC devices employ a highly configurable system-on-chip architecture for embedded control design. They integrate configurable analog and digital circuits, controlled by an on-chip microcontroller.

Voltage range: 1.71 to 5.5 V, up to 6 power domains
DC to 80-MHz operation
Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz
2-μA sleep mode
300-nA hibernate mode with RAM retention
Boost regulator from 0.5-V input up to 5-V output
32-bit ARM Cortex-M3 CPU, 32 interrupt inputs
24-channel direct memory access (DMA) controller
