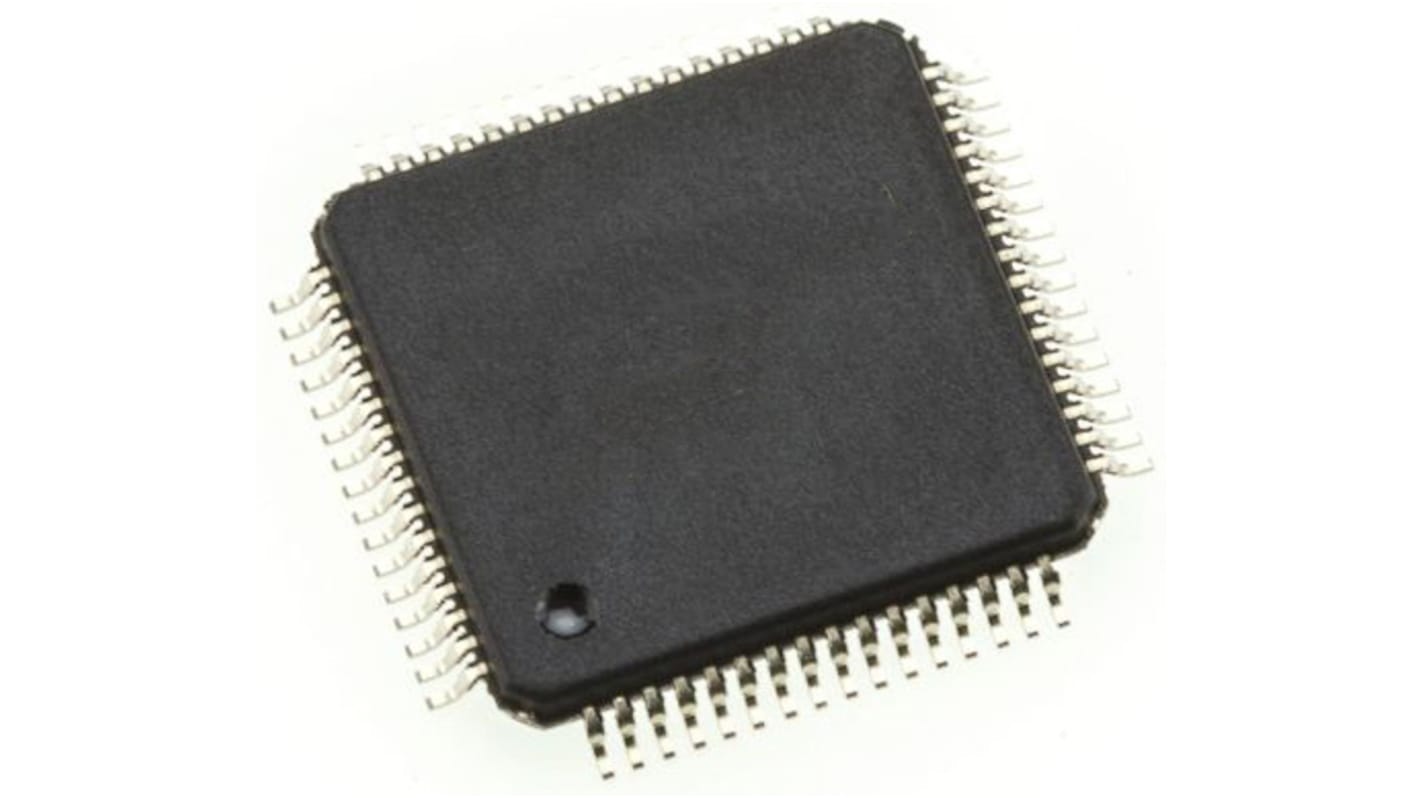

Cypress Semiconductor CY8C4147AXI-S445, 32bit ARM Cortex M0 Microcontroller, 48MHz, 128 kB Flash, 64-Pin TQFP

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0 CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4200_BL product family, based on this platform, is a combination of a microcontroller with an integrated Bluetooth Low Energy (BLE), also known as Bluetooth Smart, radio and subsystem (BLESS).

Four opamps with reconfigurable high-drive external and high-bandwidth internal drive, Comparator modes, and ADC input buffering capability Can operate in Deep Sleep mode.
Four programmable logic blocks called universal digital blocks, (UDBs), each with eight macrocells and data path
Cypress-provided peripheral component library, user-defined state machines, and Verilog input
Power Management:
Active mode: 1.7 mA at 3-MHz flash program execution
Deep Sleep mode: 1.5 μA with watch crystal oscillator

Specifikationer
Attribute Value
Family Name CY8C4100
Package Type TQFP
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M0
Data Bus Width 32bit
Program Memory Size 128 kB
Maximum Frequency 48MHz
RAM Size 16 kB
Number of PWM Units 1
ADC Channels 2
Number of SPI Channels 5
Typical Operating Supply Voltage 1.8 → 5.5 V
ADC Resolution 10 bit, 12 bit
Number of CAN Channels 1
Timers 1 (8 x 16 bit)
Minimum Operating Temperature -40 °C
Number of Timers 1
Number of ADC Units 1
Instruction Set Architecture Thumb-2
PWM Resolution 16bit
Dimensions 14.05 x 14.05 x 1.45mm
Length 14.05mm
Pulse Width Modulation 1 (8 x 16 bit)
Number of UART Channels 5
ADCs 1 (1 x 10 bit), 1 (1 x 12 bit)
Maximum Operating Temperature +85 °C
Height 1.45mm
Number of I2C Channels 5
PWM Channels 8
Width 14.05mm
Program Memory Type Flash
Timer Resolution 16bit
180 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tray of 90)
34,352 kr
(exkl. moms)
42,94 kr
(inkl. moms)
Enheter
Per unit
Per Tray*
90 - 90
34,352 kr
3 091,68 kr
180 - 360
32,634 kr
2 937,06 kr
450 +
31,02 kr
2 791,80 kr
