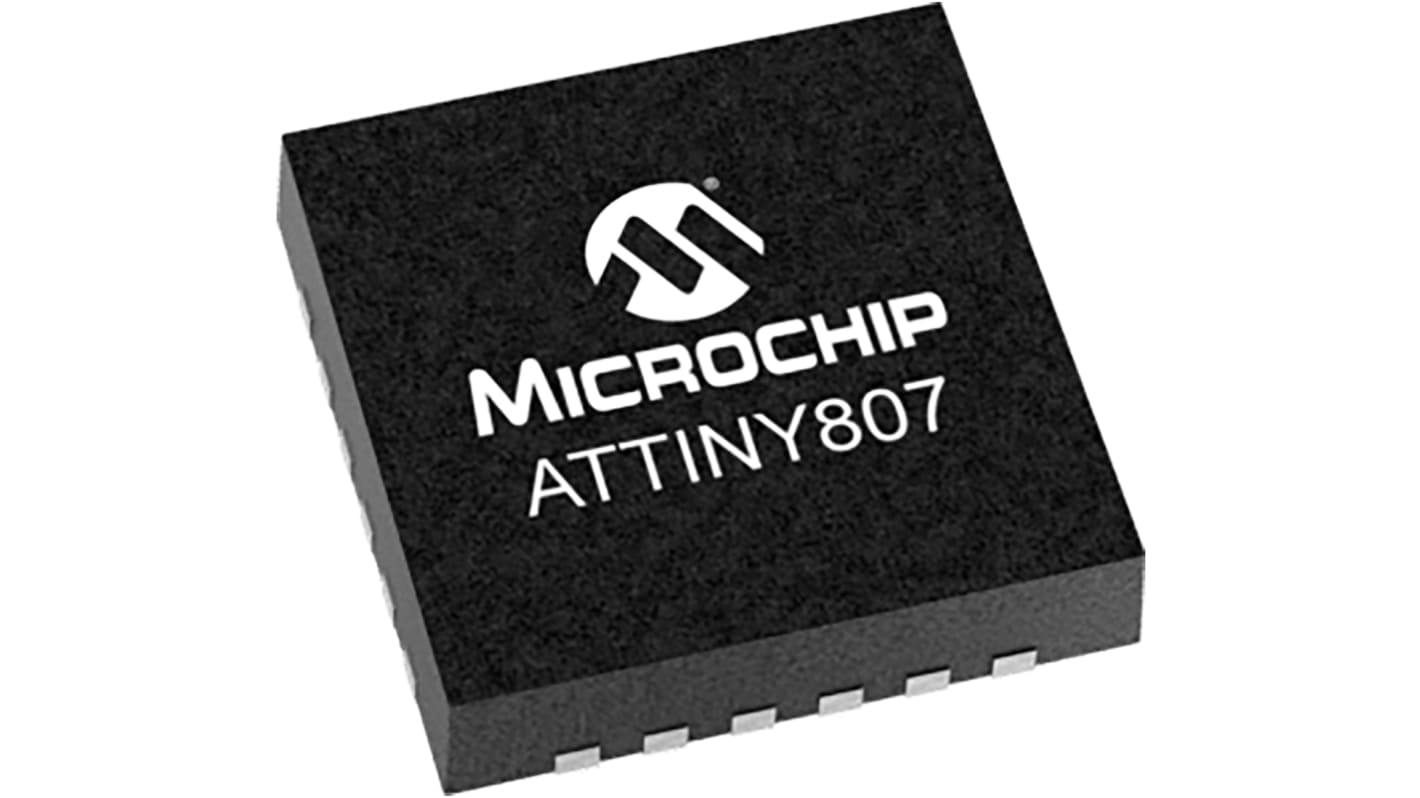

Microchip Technology ATTINY807-MNR, 8bit Microcontroller, 20MHz, 8 kB Flash, 24-Pin QFN
- RS-artikelnummer 176-5555
- Tillv. art.nr ATTINY807-MNR
- Tillverkare / varumärke Microchip
The ATtiny807 is a microcontroller using the 8-bit AVR® processor with hardware multiplier, running at up to 20MHz and 8KB Flash, 512B SRAM and 128 bytes of EEPROM in a 24-pin package. The series uses the latest technologies from Microchip with a flexible and low power architecture including Event System and SleepWalking, accurate analog features and advanced peripherals.
8-bit high-performance AVR RISC CPU
135 instructions
Hardware multiplier
Ultra Low Power (ULP)
Three sleep modes:
Idle
Standby
Power Down
3 Channels Event System
Configurable Custom Logic (CCL)
12 Channel 10-bit ADC with Voltage Reference
Comparators
2x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
Operation Voltage: 1.8V – 5.5V
| Attribute | Value |
|---|---|
| Family Name | AVR |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 512 B |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Maximum Operating Temperature | +105 °C |
| Timer Resolution | 16bit |
| Height | 0.85mm |
| Number of I2C Channels | 1 |
| PWM Channels | 1 |
| ADC Resolution | 10bit |
| Number of UART Channels | 1 |
| Pulse Width Modulation | 1 (1 x 16 bit) |
| Length | 4mm |
| Dimensions | 4 x 4 x 0.85mm |
| Number of CAN Channels | 1 |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Number of Timers | 2 |
| Number of LIN Channels | 1 |
| Width | 4mm |
| ADCs | 1 (12 x 10 bit) |
| Number of USART Channels | 1 |
| Instruction Set Architecture | RISC |
