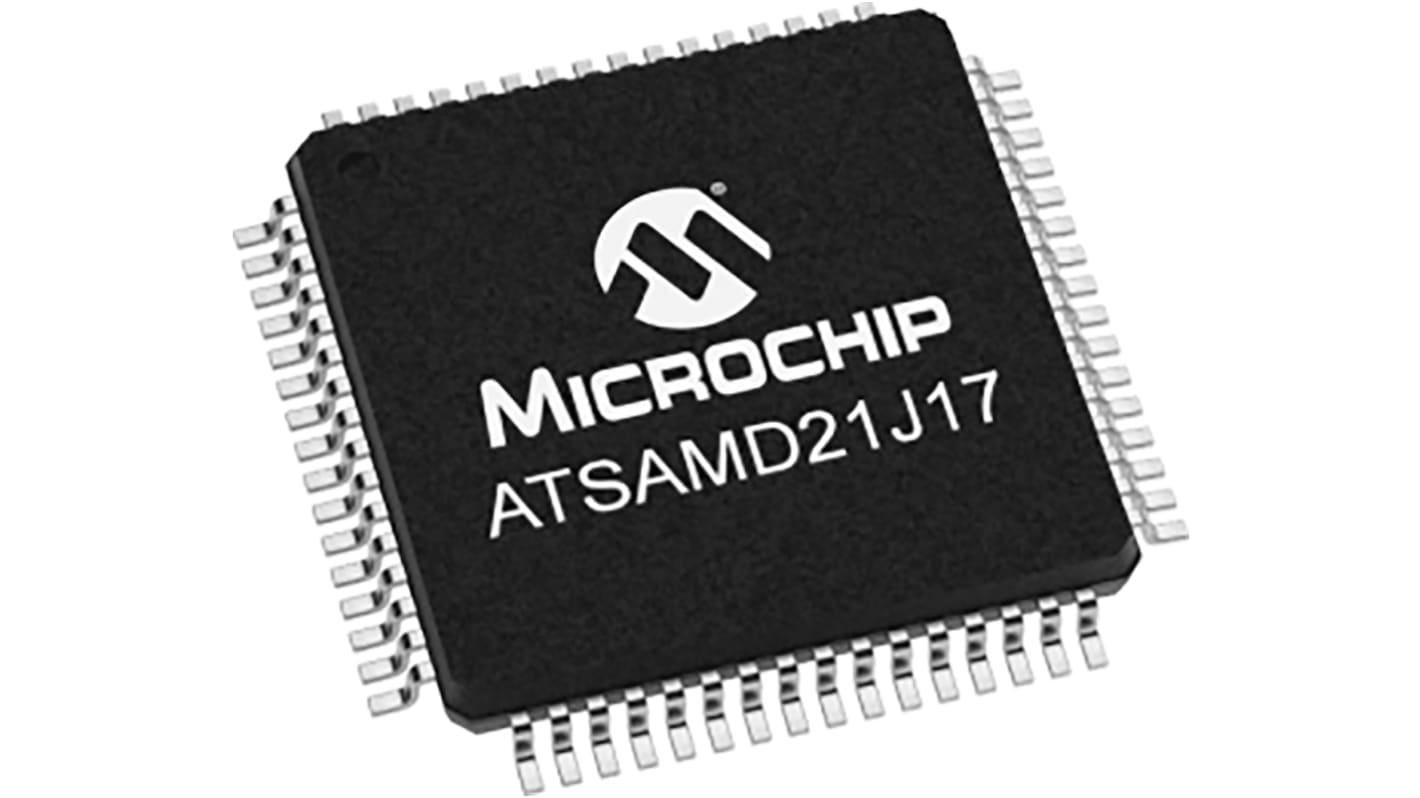

Microchip, 32bit ARM Cortex M0+, SAM D21 Microcontroller, 48MHz, 128 kB Flash, 64-Pin QFN
- RS-artikelnummer:
- 176-5475
- Tillv. art.nr:
- ATSAMD21J17D-MU
- Tillverkare / varumärke:
- Microchip
Antal (1 fack med 260 enheter)*
6 044,48 kr
(exkl. moms)
7 555,60 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
- Slutlig(a) 260 enhet(er), redo att levereras
Enheter | Per enhet | Per Bricka* |
|---|---|---|
| 260 + | 23,248 kr | 6 044,48 kr |
*vägledande pris
- RS-artikelnummer:
- 176-5475
- Tillv. art.nr:
- ATSAMD21J17D-MU
- Tillverkare / varumärke:
- Microchip
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Family Name | SAM D21 | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M0+ | |
| Data Bus Width | 32bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 16 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 6 | |
| Typical Operating Supply Voltage | 1.62 → 3.63 V | |
| Number of USART Channels | 1 | |
| Number of UART Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of I2C Channels | 6 | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | ARM | |
| Maximum Number of Ethernet Channels | 0 | |
| Automotive Standard | AEC-Q100 | |
| Number of ADC Units | 1 | |
| Length | 9mm | |
| Maximum Operating Temperature | +85 °C | |
| ADCs | 20 x 12 bit | |
| Pulse Width Modulation | 1 (12 Channel) | |
| Dimensions | 9 x 9 x 0.95mm | |
| Width | 9mm | |
| Height | 0.95mm | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Family Name SAM D21 | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core ARM Cortex M0+ | ||
Data Bus Width 32bit | ||
Program Memory Size 128 kB | ||
Maximum Frequency 48MHz | ||
RAM Size 16 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 6 | ||
Typical Operating Supply Voltage 1.62 → 3.63 V | ||
Number of USART Channels 1 | ||
Number of UART Channels 1 | ||
Number of CAN Channels 0 | ||
Number of I2C Channels 6 | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture ARM | ||
Maximum Number of Ethernet Channels 0 | ||
Automotive Standard AEC-Q100 | ||
Number of ADC Units 1 | ||
Length 9mm | ||
Maximum Operating Temperature +85 °C | ||
ADCs 20 x 12 bit | ||
Pulse Width Modulation 1 (12 Channel) | ||
Dimensions 9 x 9 x 0.95mm | ||
Width 9mm | ||
Height 0.95mm | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
- COO (Country of Origin):
- TW
Up to 48MHz operating frequency
Four serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, three 16-bit timer/counters, 32-bit Real-Time Clock and calendar, 18 PWM channels, one 14-channel 12-bit ADC, one 10-bit DAC
Full Speed USB Device and embedded Host
Support for up to 60 touch channels
1.62V to 3.63V power supply
Easy pin migration to SAMD21G and SAMD21J devices
Supported by Atmel Studio, ASF and the SAM D21 Xplained Pro kit
