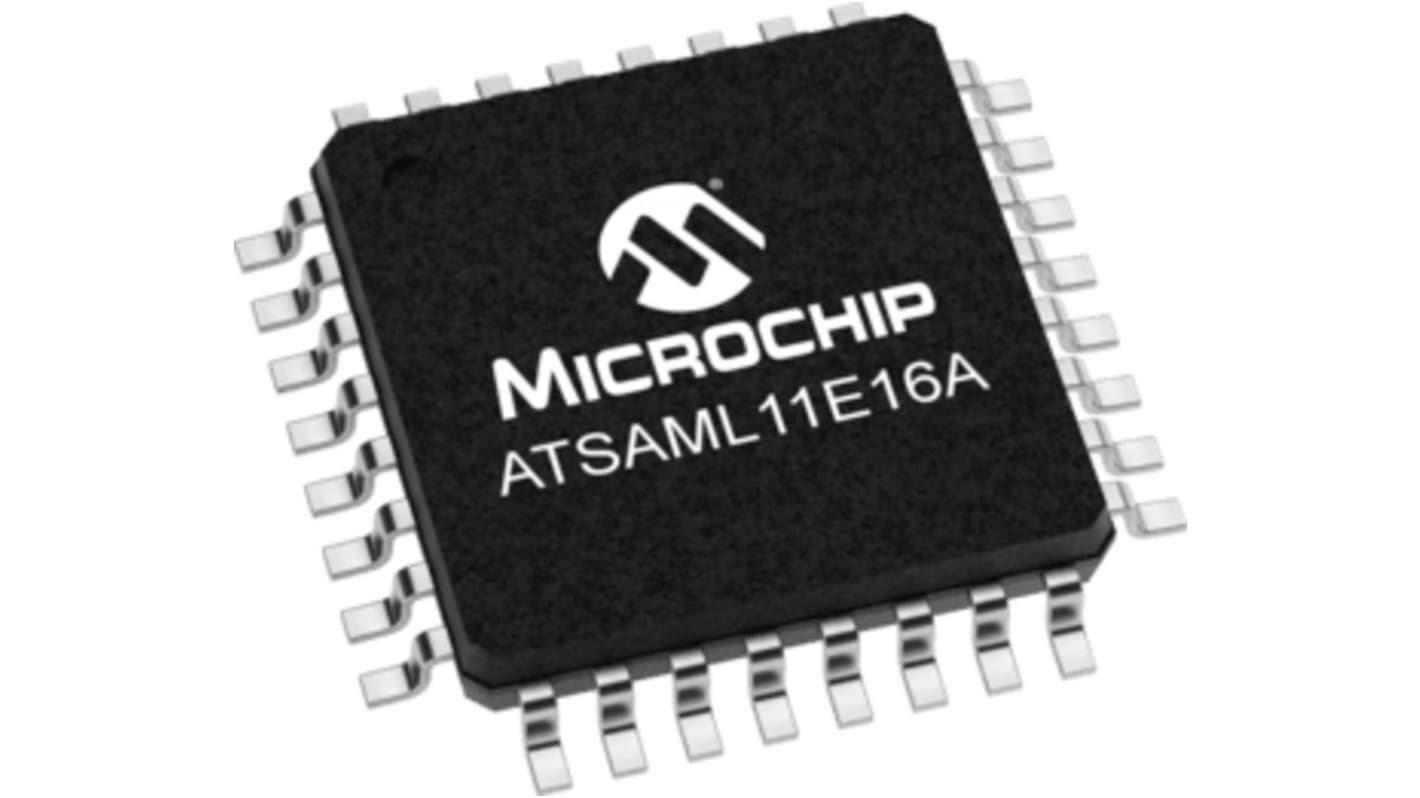

Microchip ATSAML11E16A-AU, 32bit ARM Cortex M23 Microcontroller, SAML11, 32MHz, 64 kB Flash, 32-Pin TQFP
- RS-artikelnummer:
- 175-9108
- Tillv. art.nr:
- ATSAML11E16A-AU
- Tillverkare / varumärke:
- Microchip
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 250)
28,256 kr
(exkl. moms)
35,32 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 250 + | 28,256 kr | 7 064,00 kr |
- RS-artikelnummer:
- 175-9108
- Tillv. art.nr:
- ATSAML11E16A-AU
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
Power Arm® Cortex®-M23 featuring chip-level security and ARM® TrustZone® Technology, consuming less than 25uA/MHz in active mode and less than 100 nA in sleep mode. It features secure key storage, chip-level tamper resistance, crypto accelerators, secure boot, secure bootloader, enhanced peripheral touch controller, advanced analog, ISO7816 smart card interface, event system and Sleep Walking peripherals.
Processor:
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V
Specifikationer
Attribute | Value |
|---|---|
| Family Name | SAML11 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M23 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 16 kB |
| USB Channels | 0 |
| Number of PWM Units | 0 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.62 → 3.63 V |
| Number of I2C Channels | 2 |
| Number of UART Channels | 0 |
| Number of CAN Channels | 0 |
| Number of USART Channels | 1 |
| Dimensions | 7.1 x 7.1 x 1.05mm |
| Number of ADC Units | 1 |
| Length | 7.1mm |
| ADCs | 10 x 12 bit |
| Number of PCI Channels | 0 |
| Height | 1.05mm |
| Number of LIN Channels | 1 |
| Width | 7.1mm |
| Number of Ethernet Channels | 0 |
| Pulse Width Modulation | 1 (2 Channel) |
| Maximum Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | MCU |
| Maximum Operating Temperature | +125 °C |
| Automotive Standard | AEC-Q100 |
