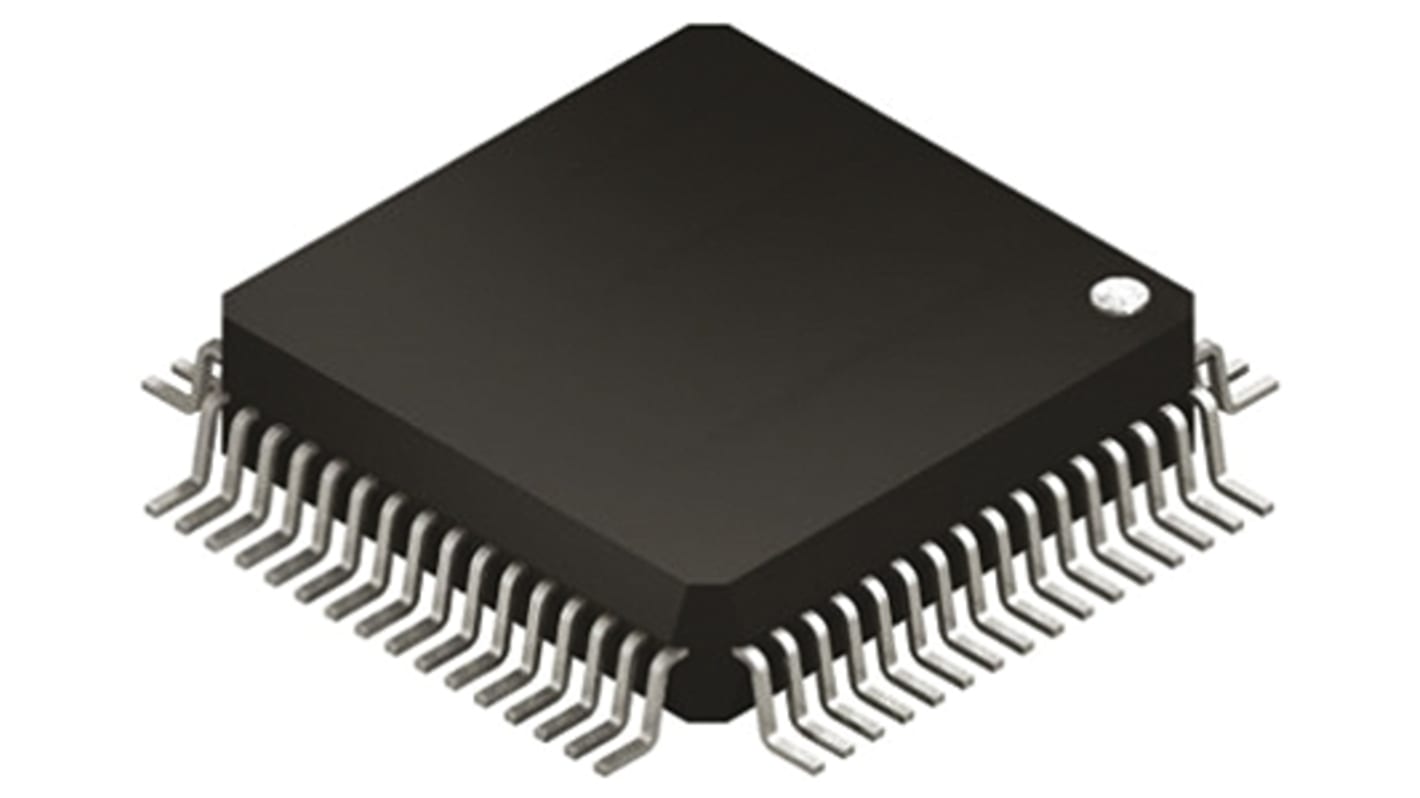

NXP S9KEAZN32ACLH, 32bit ARM Cortex M0 Microcontroller, 40MHz, 32 kB Flash, 64-Pin LQFP
- RS-artikelnummer 170-8882
- Tillv. art.nr S9KEAZN32ACLH
- Tillverkare / varumärke NXP
Kinetis EA Series Microcontrollers
Kinetis EA series microcontrollers are based on the 32-bit ARM Cortex-M0+ core and are designed for automotive applications. This series was developed with EMC/ESD in mind and features strong noise immunity with low radiated emissions.
Up to 48MHz Cortex-M0+ microcontroller
Up to 128KB Flash memory
Up to 16KB SRAM
16-channel 12-bit ADC
Single-cycle I/O access port
Power supply: +2.7 to +5.5Vdc
Operating temperature range: -40 to +125°C
Note
NXP is a trademark of NXP B.V.
The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.
| Attribute | Value |
|---|---|
| Family Name | Kinetis EA |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 3 |
| ADC Channels | 16 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Number of I2C Channels | 2 |
| PWM Channels | 8 |
| Dimensions | 10 x 10 x 1.45mm |
| Length | 10mm |
| Pulse Width Modulation | 3 |
| Number of UART Channels | 3 |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 12bit |
| Number of Timers | 4 |
| Height | 1.45mm |
| Number of ADC Units | 1 |
| ADCs | 1 (16 x 12 bit) |
| Width | 10mm |
| Instruction Set Architecture | ARM |
| Minimum Operating Temperature | -40 °C |
| Timers | 4 |
| Program Memory Type | Flash |
