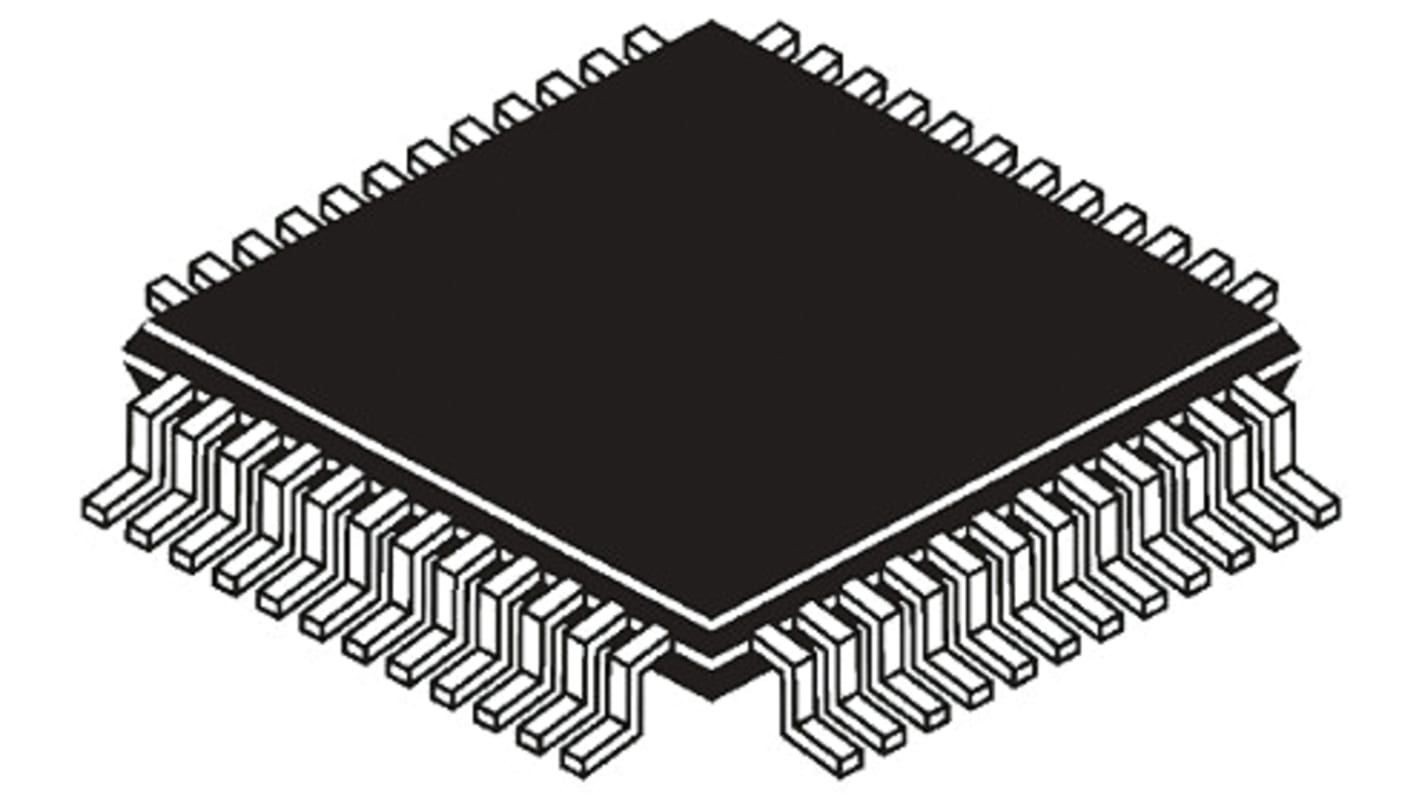

Silicon Labs EFM32TG222F32-QFP48, 32bit ARM Cortex M3 Microcontroller, 32MHz, 32 kB Flash, 48-Pin QFP

  • RS-artikelnummer 169-0047
  • Tillv. art.nr EFM32TG222F32-QFP48
  • Tillverkare / varumärke Silicon Labs
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): KR
Produktdetaljer

EFM32 Tiny Gecko Microcontroller Family

Tiny Gecko (TG) family of energy friendly 32-bit microcontrollers, based on the ARM Cortex-M3 processor core.

EFM32 Gecko Microcontrollers

Silicon Labs microcontrollers target energy sensitive applications, including smart metering, gas/energy/water metering, remote sensing, building automation, security systems, portable health/fitness equipment and smart accessories.

Powerful ARM Cortex-M 32-bit processor cores
Short wake-up time from energy saving modes
Ideal for use with energy harvesting systems

Specifikationer
Attribute Value
Family Name EFM32TG
Package Type QFP
Mounting Type Surface Mount
Pin Count 48
Device Core ARM Cortex M3
Data Bus Width 32bit
Program Memory Size 32 kB
Maximum Frequency 32MHz
RAM Size 4 kB
Number of PWM Units 1
ADC Channels 1
Number of SPI Channels 1
Typical Operating Supply Voltage 1.98 → 3.8 V
ADC Resolution 12bit
Timer Resolution 16bit
Number of Timers 2
ADCs 1 (1 x 12 bit)
Number of I2C Channels 1
Width 7mm
Length 7mm
Number of USART Channels 2
Timers 2 x 16 bit
Dimensions 7 x 7 x 1.05mm
Maximum Operating Temperature +85 °C
Pulse Width Modulation 1
Program Memory Type Flash
Number of ADC Units 1
Height 1.05mm
Minimum Operating Temperature -40 °C
Instruction Set Architecture RISC
Tillfälligt slut i lager – restorder för leverans 2020-06-17
Pris (ex. moms) Each (On a Reel of 1000)
16,00 kr
(exkl. moms)
20,00 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
1000 - 1000
16,00 kr
16 000,00 kr
2000 +
15,60 kr
15 600,00 kr
