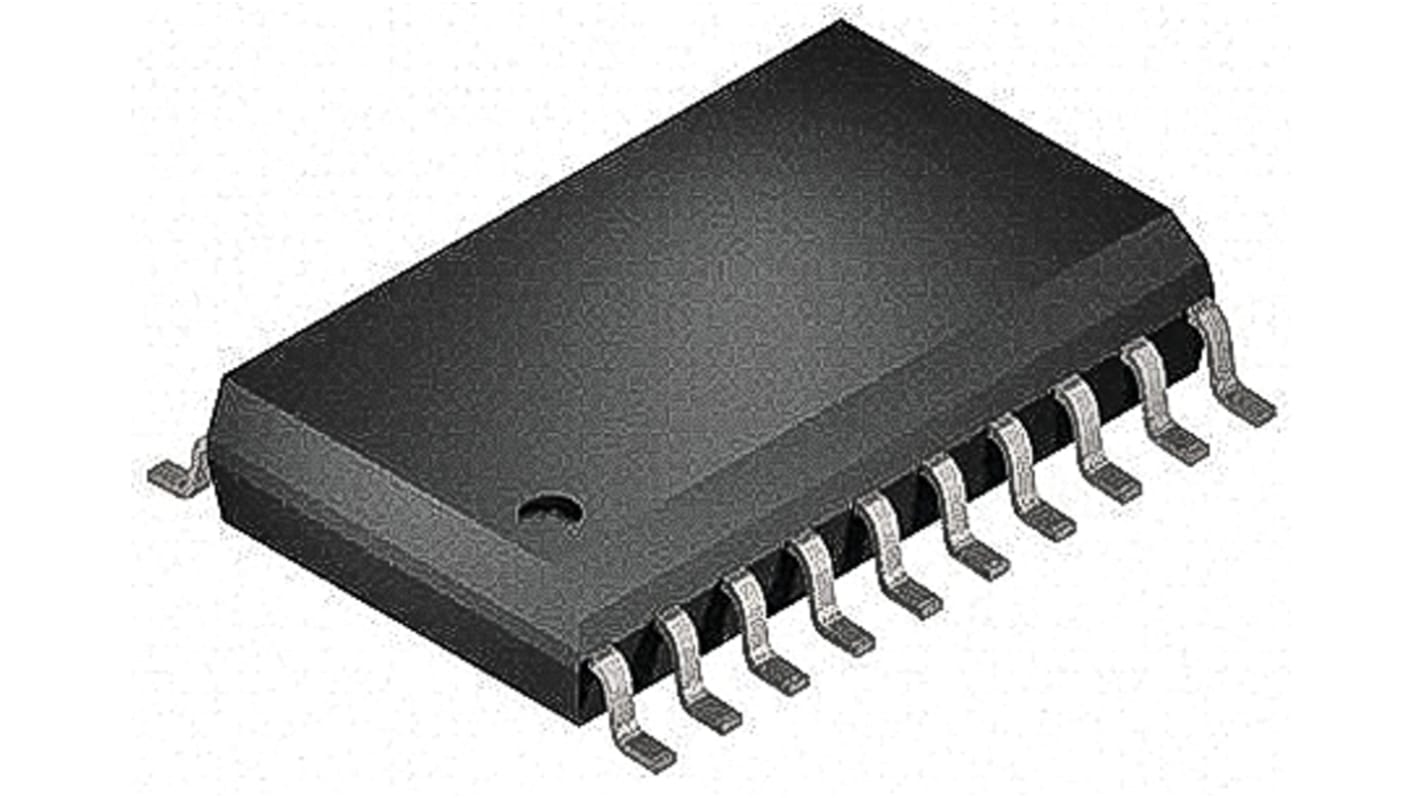

Microchip ATTINY406-SFR, 8bit AVR Microcontroller, 20MHz, 4 kB Flash, 20-Pin SOIC

  • RS-artikelnummer 168-2800
  • Tillv. art.nr ATTINY406-SFR
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

1.8V to 3.6V input voltage range Active noise rejection over a wide frequency band: >50dB from 10Hz to 5MHz at 500mA load Rated to 500mA output current Fixed and adjustable output voltages Optional output auto-discharge when disabled Current-limit and thermal-limit protected 1.6mm x 1.6mm, 6-pin Thin DFN Logic-controlled enable pin -40°C to +125°C junction temperature range

Specifikationer
Attribute Value
Family Name ATTINY
Package Type SOIC
Mounting Type Surface Mount
Pin Count 20
Device Core AVR
Data Bus Width 8bit
Program Memory Size 4 kB
Maximum Frequency 20MHz
RAM Size 512 kB
ADC Channels 12
Number of SPI Channels 1
Typical Operating Supply Voltage 5.5 V
Number of Timers 1
Number of I2C Channels 1
Number of ADC Units 1
Instruction Set Architecture RISC
ADCs 1 (12 x 10 bit)
Program Memory Type Flash
Minimum Operating Temperature -40 °C
Timer Resolution 16bit
Maximum Operating Temperature +125 °C
ADC Resolution 10bit
Number of UART Channels 1
1390 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
6,773 kr
(exkl. moms)
8,466 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 20
6,773 kr
67,73 kr
30 - 90
6,618 kr
66,18 kr
100 +
5,956 kr
59,56 kr
Förpackningsalternativ:
