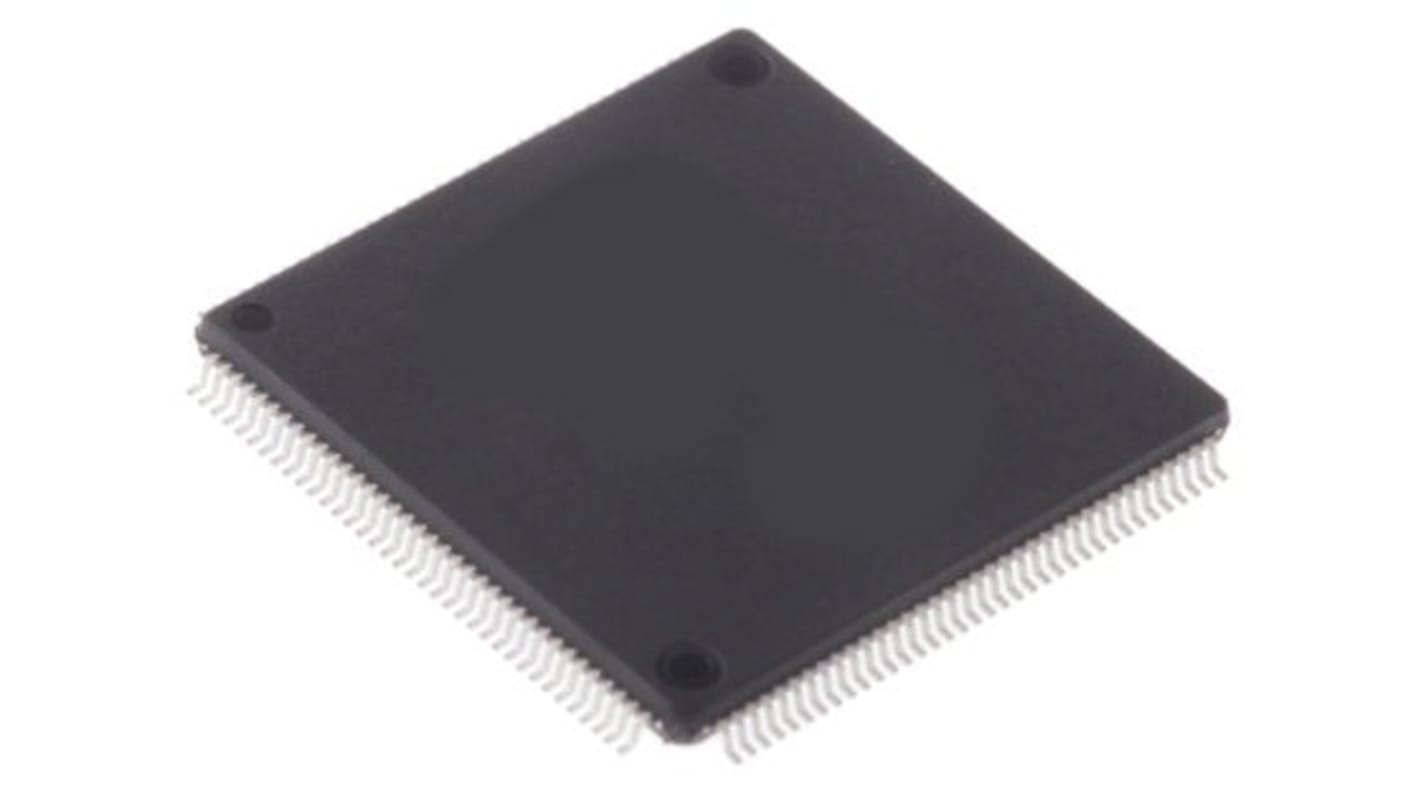

STMicroelectronics STM32F205ZGT6TR, 32bit ARM Cortex M3 Microcontroller, 120MHz, 1.024 MB Flash, 144-Pin LQFP

  • RS-artikelnummer 165-6867
  • Tillv. art.nr STM32F205ZGT6TR
  • Tillverkare / varumärke STMicroelectronics
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): KR
Produktdetaljer

STM32F205/215, ARM® 32-Bit Cortex™-M3 Microcontrollers

STMicroelectronics high performance ARM® Cortex M3 STM32F205/215 MCU ranges with CPU frequencies up to 120 MHz, up to 1 MB of Flash and advanced connectivity. Applications include motor drive/ application control; Medical equipment; Industrial applications; Alarm systems, video intercom, and HVAC and home audio appliances. The STM32F2x5 ARM processors incorporate 12-bit ADCs, DACs, a RTC, 16-bit timers including two PWM timers for motor control, 32-bit timers, true number random generator (RNG) and are offered in various package types.

Real time memory accelerator (ART Accelerator™)
Low power applications with a set of power saving modes
Different peripherals depending on the microcontroller
I2Cs, SPIs, I2Ss, USARTs, USB OTG high-speed, USB OTG, CANs
Temperature ranges: -40 to +105 °C

STM32F2 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex-M3 architectural enhancements.

120MHz Cortex™-M3 CPU
Excellent real-time behaviour
Oustanding power efficiency
Superior and innovative peripherals
Maximum integration
Cross family pin-to-pin, peripheral and software compatibility

Specifikationer
Attribute Value
Family Name STM32F
Package Type LQFP
Mounting Type Surface Mount
Pin Count 144
Device Core ARM Cortex M3
Data Bus Width 32bit
Program Memory Size 1.024 MB
Maximum Frequency 120MHz
RAM Size 128 + 4 kB
USB Channels 1 x OTG
Number of PWM Units 1
ADC Channels 24
Number of SPI Channels 3
Typical Operating Supply Voltage 1.8 → 3.6 V
Program Memory Type Flash
ADCs 3 (24 x 12 bit)
Number of USART Channels 4
Number of Timers 17
Instruction Set Architecture RISC
PWM Resolution 16bit
Dimensions 20.2 x 20.2 x 1.45mm
Length 20.2mm
Pulse Width Modulation 1 (6 x 16 bit)
Number of UART Channels 2
Number of CAN Channels 2
ADC Resolution 12bit
Timer Resolution 16 bit, 32 bit
Timers 2 x 32 bit, 12 x 16 bit
Minimum Operating Temperature -40 °C
Number of ADC Units 3
Number of I2C Channels 3
PWM Channels 6
Maximum Operating Temperature +85 °C
Height 1.45mm
Width 20.2mm
Tillfälligt slut i lager – restorder för leverans 2020-06-29
Pris (ex. moms) Each (On a Reel of 500)
96,034 kr
(exkl. moms)
120,042 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
500 - 1000
96,034 kr
48 017,00 kr
1500 - 2000
94,786 kr
47 393,00 kr
2500 - 4500
93,537 kr
46 768,50 kr
5000 - 12000
92,385 kr
46 192,50 kr
12500 +
91,233 kr
45 616,50 kr
