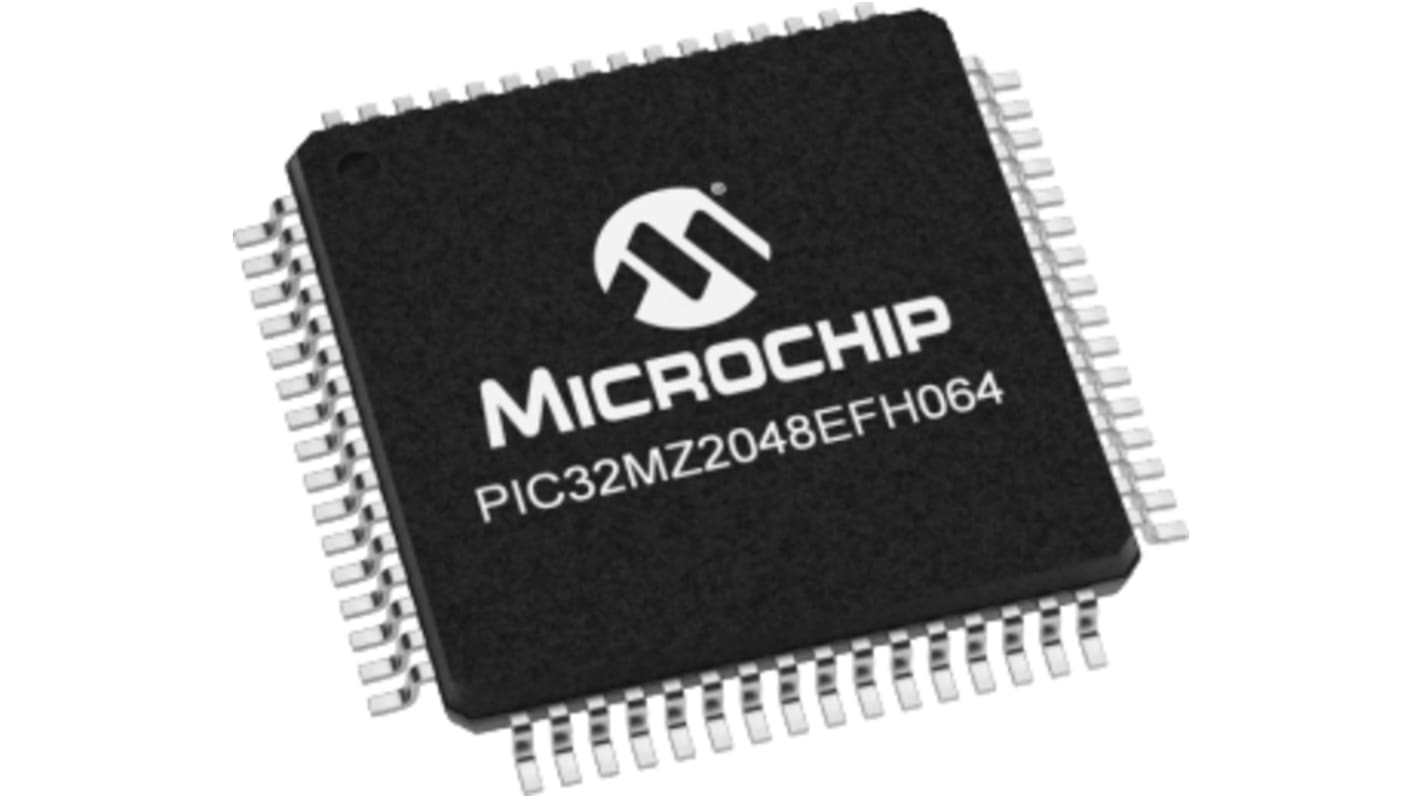

Microchip PIC32MZ2048EFH064-250I/PT, 32bit 32 bit CPU Microcontroller, 252MHz, 2.048 MB Flash, 64-Pin TQFP

  • RS-artikelnummer 146-3270
  • Tillv. art.nr PIC32MZ2048EFH064-250I/PT
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

252 MHz/330 DMIPS, MIPS Warrior M-class core
DSP-enhanced core:
Four 64-bit accumulators
Single-cycle MAC, saturating and fractional math
Dual Panel Flash for live update support
FPU for fast single- and double-precision math
12-bit, 18 MSPS, 24-channel ADC module
Memory Management Unit for optimum embedded OS execution
microMIPS mode for up to 35% code compression
CAN, UART, I2C, PMP, SQI & Analog Comparators
SPI/I2S interfaces for audio processing and playback
Hi-Speed USB 2.0 Device/Host/OTG
10/100 Mbps Ethernet MAC with MII and RMII interface

Specifikationer
Attribute Value
Family Name PIC32
Package Type TQFP
Mounting Type Surface Mount
Pin Count 64
Device Core 32 bit CPU
Data Bus Width 32bit
Program Memory Size 2.048 MB
Maximum Frequency 252MHz
RAM Size 512 kB
ADC Channels 24
Number of SPI Channels 4
Typical Operating Supply Voltage 2.1 → 3.6 V
Timer Resolution 16bit
ADC Resolution 12bit
Number of ADC Units 1
Dimensions 9 x 9 x 0.85mm
Length 9mm
Number of UART Channels 6
Maximum Operating Temperature +105 °C
Data Rate 25Mbit/s
Height 0.85mm
Number of I2C Channels 4
ADCs 1 (24 x 12 bit)
Number of Timers 9
Width 9mm
Number of CAN Channels 2
Program Memory Type Flash
Timers 1 (9 x 16 bit)
Automotive Standard AEC-Q100
Minimum Operating Temperature -40 °C
Tillfälligt slut i lager – restorder för leverans 2020-01-13
Pris (ex. moms) Each (In a Tray of 160)
89,439 kr
(exkl. moms)
111,799 kr
(inkl. moms)
Enheter
Per unit
Per Tray*
160 +
89,439 kr
14 310,24 kr
