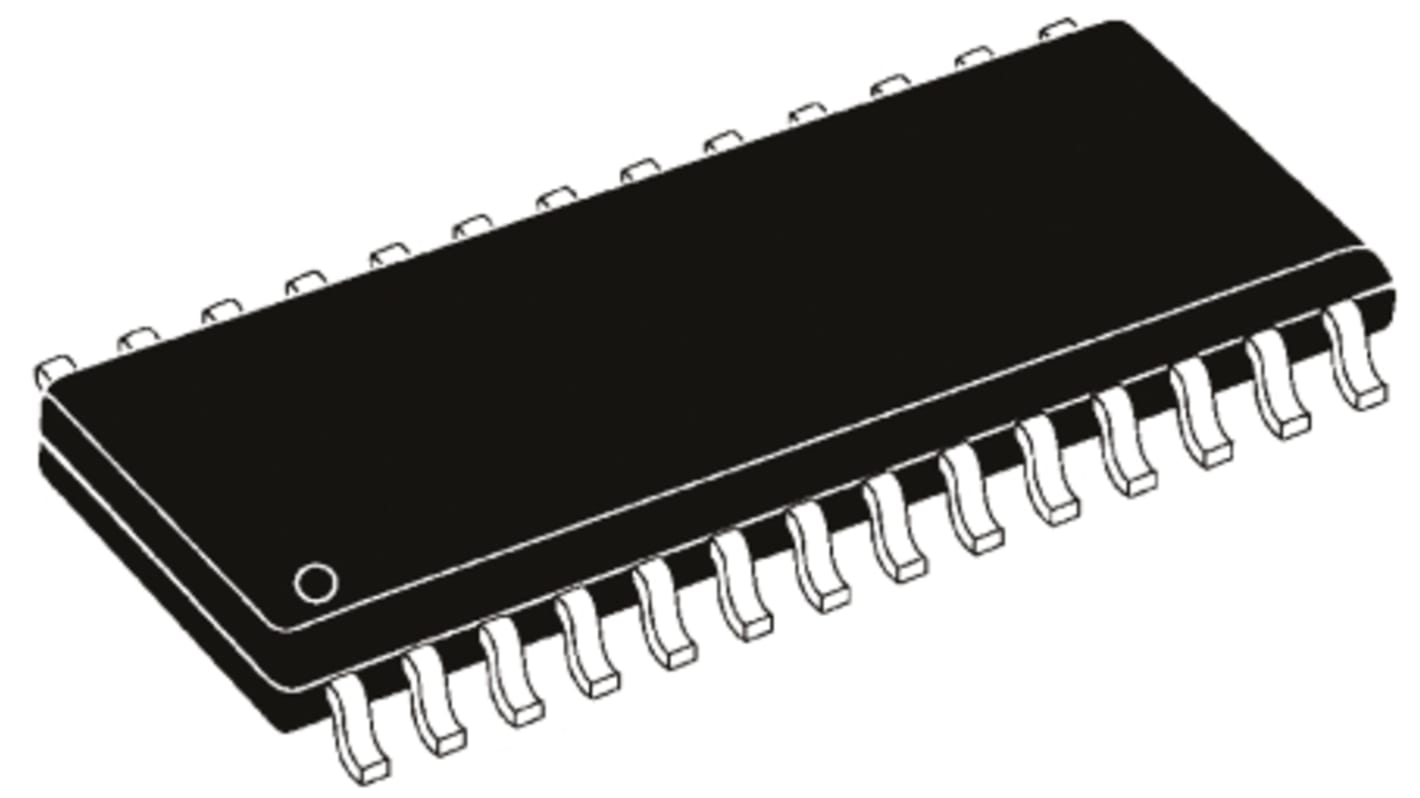

Microchip PIC32MX220F032B-I/SO, 32bit PIC Microcontroller, 50MHz, 32 + 3 kB Flash, 28-Pin SOIC

  • RS-artikelnummer 145-9060
  • Tillv. art.nr PIC32MX220F032B-I/SO
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TH
Produktdetaljer

PIC32MX1x0/2x0/5x0 32-Bit Microcontrollers

The PIC32 range of microcontrollers from Microchip are 32-bit MCUs with a MIPS microAptiv or M4K core in combination with full range of integrated tools needed for embedded applications. The high performance offered by these devices is desirable for advanced applications such as high impact graphic/user interfaces, Ethernet/USB/CAN connectivity, multitasking embedded control and high performance audio.

The PIC32Mx1x0/2x0/5x0 family of microcontrollers is based upon Microchip’s MIPS32® M4K® core providing up to 83 DMIPS, with variants offering up to 512 Kbytes Flash Program memory and RAM of up to 64 Kbytes.

Microcontroller Features

Up to 50 MHz Max. CPU Speed
MIPS16e® mode for up to 40% smaller code size
Multiple Power Management Modes
Configurable Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripheral Features

Peripheral Pin Select (PPS)
10-bit 1 Msps Analogue to Digital Converter (ADC) Module – 9 to 48 Channels Dependent on Model
Analogue Comparators – 2 to 3 Dependent on Model
Five 16-bit Timers
Two 32-bit Timers
Real-Time Clock and Calendar (RTCC) Module
Five Output Compare (OC) and Five Input Compare (IC) Modules
Four Direct Memory Access (DMA) Channels

Audio/Graphics/Touch HMI Features

Data Communication – I2S, LJ, RJ, and DSP modes
Control Interface – SPI and I2C
Master Clock – For generation of Fractional Clock frequencies. Can be synchronised with USB Clock and can be tuned in Run-Time
Charge Time Measurement Unit (CTMU) – Available on Some Models

Communication Interface Features

USB 2.0-compliant Full-Speed On-The-Go (OTG) Controller – Dependant on Model
Two UART Modules – Supports LIN 2.0 protocols and IrDA®
Two 4-Wire SPI Modules
Two I2C Modules with SMBus Support
Parallel Master Port (PMP)

High-performance 32-bit microcontrollers designed for: High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio

Specifikationer
Attribute Value
Family Name PIC32MX
Package Type SOIC
Mounting Type Surface Mount
Pin Count 28
Device Core PIC
Data Bus Width 32bit
Program Memory Size 32 + 3 kB
Maximum Frequency 50MHz
RAM Size 8 kB
USB Channels 1
Number of PWM Units 5
ADC Channels 9
Number of SPI Channels 2
Typical Operating Supply Voltage 2.3 → 3.6 V
Length 17.9mm
ADCs 1(9 x 10 bit)
Timer Resolution 16bit
Height 2.35mm
ADC Resolution 10bit
Minimum Operating Temperature -40 °C
Instruction Set Architecture RISC
Number of I2C Channels 2
Maximum Operating Temperature +85 °C
Number of ADC Units 1
Number of Timers 5
Number of UART Channels 2
Program Memory Type Flash
Dimensions 17.9 x 7.5 x 2.35mm
Timers 5 x 16 bit
Width 7.5mm
216 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tube of 27)
19,068 kr
(exkl. moms)
23,835 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
27 - 81
19,068 kr
514,836 kr
108 +
17,459 kr
471,393 kr
