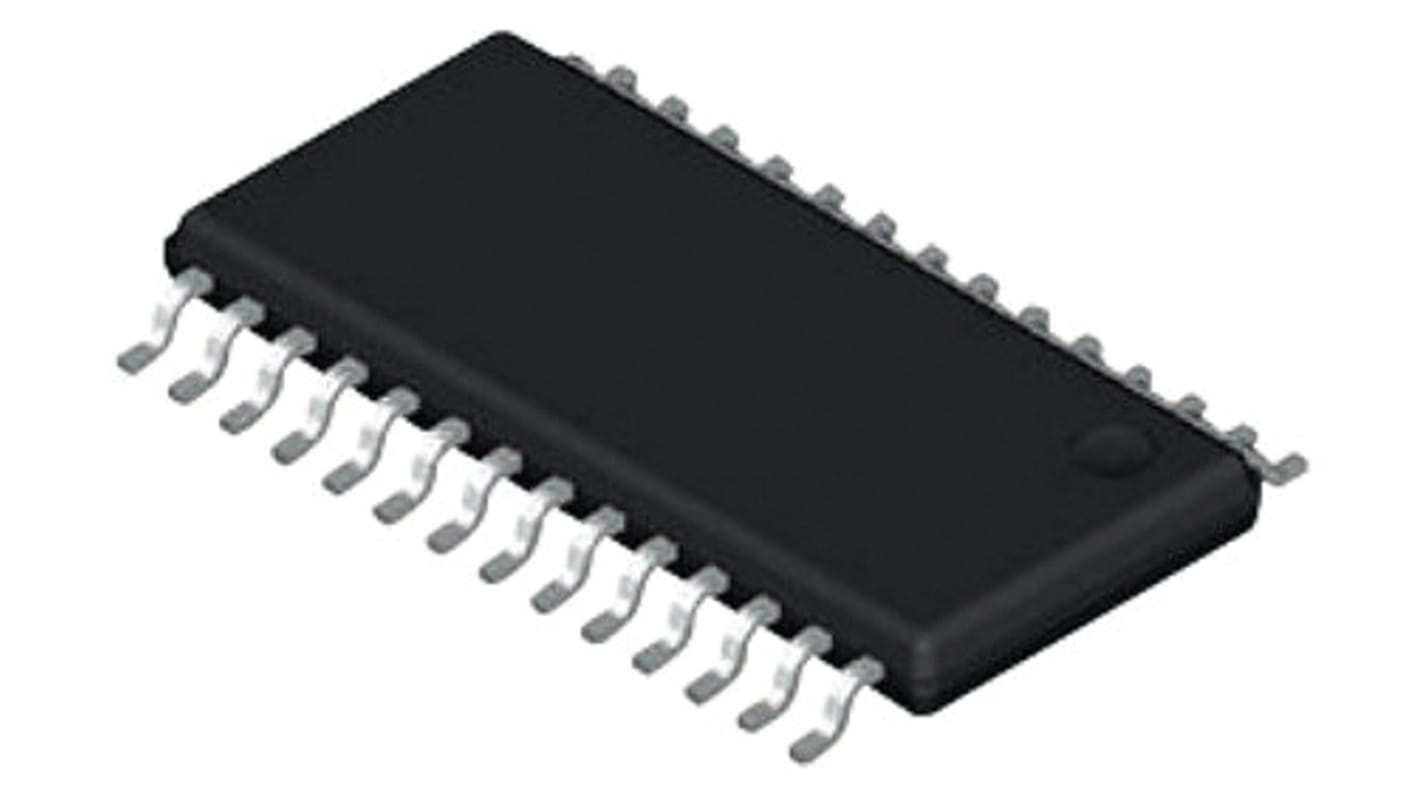

Texas Instruments MSP430F2112IPW, 16bit MSP430 Microcontroller, 16MHz, 2 kB, 256 B Flash, 28-Pin TSSOP

  • RS-artikelnummer 145-7582
  • Tillv. art.nr MSP430F2112IPW
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): MY
Produktdetaljer

MSP430F2x Ultra-Low-Power Microcontrollers, Texas Instruments

Up to 16MHz CPU speed clock
Up to 120KB Flash memory
Up to 8KB SRAM memory
1.8V to 3.6V operation
Smart Analog and Digital
Low Power 200μA/MHz active mode
Low Power 0.7μA real-time clock mode
Low Power 0.1μA RAM retention
Ultra-Fast Wake-Up From Standby Mode in less than 6μs

MSP430 Microcontrollers, Texas Instruments

The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.

Specifikationer
Attribute Value
Family Name MSP430
Package Type TSSOP
Mounting Type Surface Mount
Pin Count 28
Device Core MSP430
Data Bus Width 16bit
Program Memory Size 2 kB, 256 B
Maximum Frequency 16MHz
RAM Size 256 B
Number of PWM Units 2
ADC Channels 8
Number of SPI Channels 1
Typical Operating Supply Voltage 1.8 → 3.6 V
PWM Channels 2, 3
ADCs 8 x 10 bit
Number of ADC Units 1
Number of LIN Channels 1
Number of Timers 5
ADC Resolution 10bit
Timer Resolution 16bit
Timers 5 x 16 bit
Minimum Operating Temperature -40 °C
Instruction Set Architecture RISC
PWM Resolution 16bit
Dimensions 9.8 x 4.5 x 1.05mm
Length 9.8mm
Pulse Width Modulation 2 x 16 bit, 3 x 16 bit
Number of UART Channels 1
Maximum Operating Temperature +85 °C
Height 1.05mm
Number of I2C Channels 1
Program Memory Type Flash
Width 4.5mm
Pris (ex. moms) Each (In a Tube of 50)
11,00 kr
(exkl. moms)
13,75 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
50 +
11,00 kr
550,00 kr
På grund av tillfälligt begränsad tillgång kan RS för närvarande tyvärr inte hantera restorder
