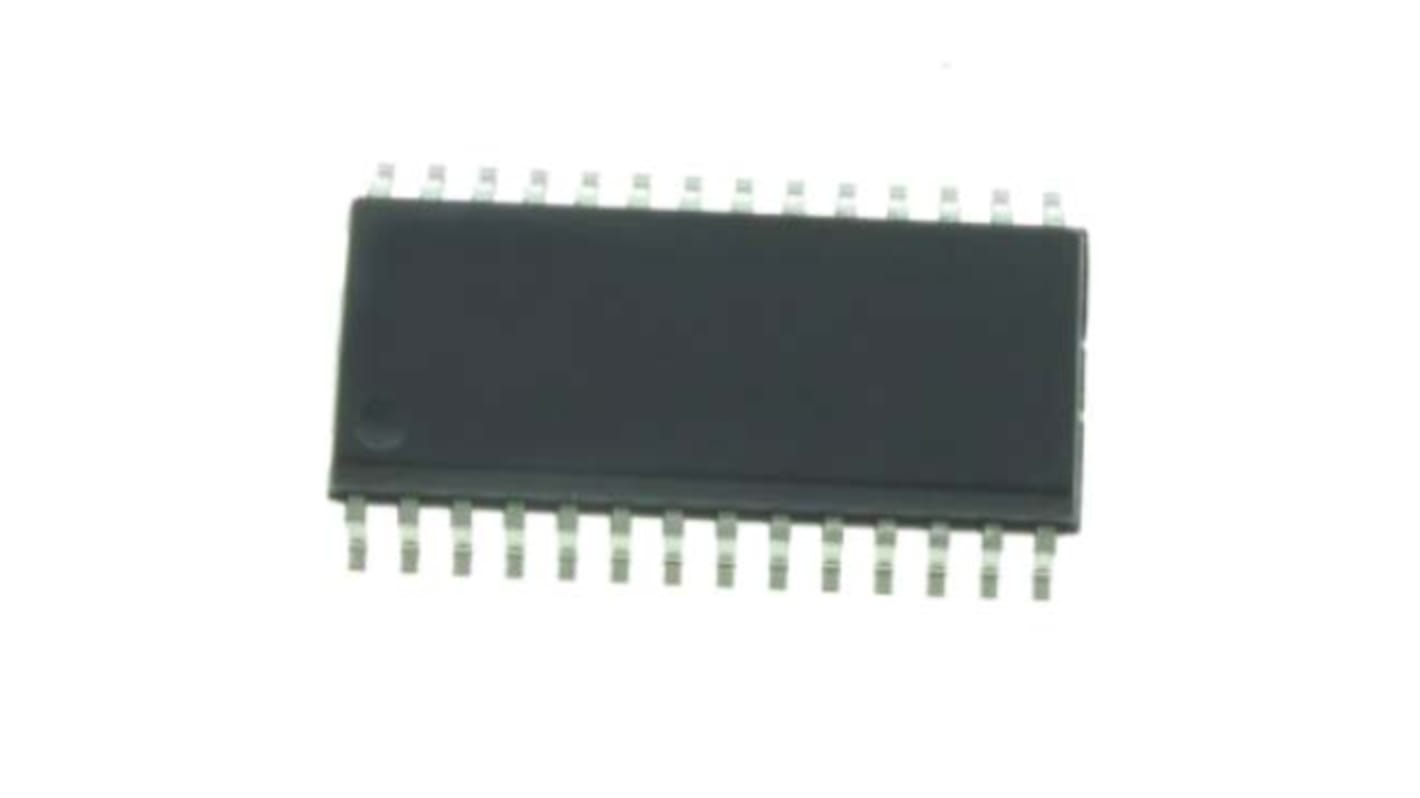

Microchip, 8 bit PIC, PIC16F19156 Microcontroller, 32 MHz, 28kB FLASH, 28-Pin SOIC
- RS-artikelnummer:
- 144-9557
- Tillv. art.nr:
- PIC16F19156-I/SO
- Tillverkare / varumärke:
- Microchip
Mängdrabatt möjlig
Antal (1 förpackning med 5 enheter)*
97,44 kr
(exkl. moms)
121,80 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 90 enhet(er), redo att levereras
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 5 - 20 | 19,488 kr | 97,44 kr |
| 25 - 95 | 18,906 kr | 94,53 kr |
| 100 + | 18,234 kr | 91,17 kr |
*vägledande pris
- RS-artikelnummer:
- 144-9557
- Tillv. art.nr:
- PIC16F19156-I/SO
- Tillverkare / varumärke:
- Microchip
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Series | PIC16F19156 | |
| Product Type | Microcontroller | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 28 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Interface Type | EUSART, I2C, SPI | |
| Program Memory Size | 28kB | |
| Maximum Clock Frequency | 32MHz | |
| RAM Size | 2kB | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Power Dissipation Pd | 800mW | |
| Analogue Comparators | 2 | |
| Minimum Operating Temperature | -40°C | |
| DACs | 1 x 5 Bit | |
| Number of Programmable I/Os | 24 | |
| Maximum Operating Temperature | 85°C | |
| Width | 7.5 mm | |
| Height | 2.35mm | |
| Standards/Approvals | RoHS | |
| Length | 17.9mm | |
| Minimum Supply Voltage | 1.8V | |
| Instruction Set Architecture | RISC | |
| Automotive Standard | No | |
| ADCs | 20 x 12 Bit | |
| Program Memory Type | FLASH | |
| Number of Timers | 4 | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Series PIC16F19156 | ||
Product Type Microcontroller | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 28 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Interface Type EUSART, I2C, SPI | ||
Program Memory Size 28kB | ||
Maximum Clock Frequency 32MHz | ||
RAM Size 2kB | ||
Maximum Supply Voltage 5.5V | ||
Maximum Power Dissipation Pd 800mW | ||
Analogue Comparators 2 | ||
Minimum Operating Temperature -40°C | ||
DACs 1 x 5 Bit | ||
Number of Programmable I/Os 24 | ||
Maximum Operating Temperature 85°C | ||
Width 7.5 mm | ||
Height 2.35mm | ||
Standards/Approvals RoHS | ||
Length 17.9mm | ||
Minimum Supply Voltage 1.8V | ||
Instruction Set Architecture RISC | ||
Automotive Standard No | ||
ADCs 20 x 12 Bit | ||
Program Memory Type FLASH | ||
Number of Timers 4 | ||
- COO (Country of Origin):
- US
PIC16(L)F19156 microcontrollers offer eXtreme Low-Power (XLP) LCD drive coupled with Core Independent Peripherals and Intelligent Analog. They are especially suited for battery powered LCD applications due to an integrated charge pump, high current I/O drive for backlighting, and battery backup of the Real Time Clock/Calendar (RTCC). Active clock tuning of the HFINTOSC provides a highly accurate clock source over voltage and temperature.
Up to 96 LCD Segments
LCD Charge Pump
Bias Generator
High-Precision Internal Oscillator
Active clock tuning of HFINTOSC over voltage and temperature
Windowed Watchdog Timer
Temperature Sensor
Memory Access Partition (MAP)
Write protect
Peripheral Pin Select
Peripheral Module Disable
