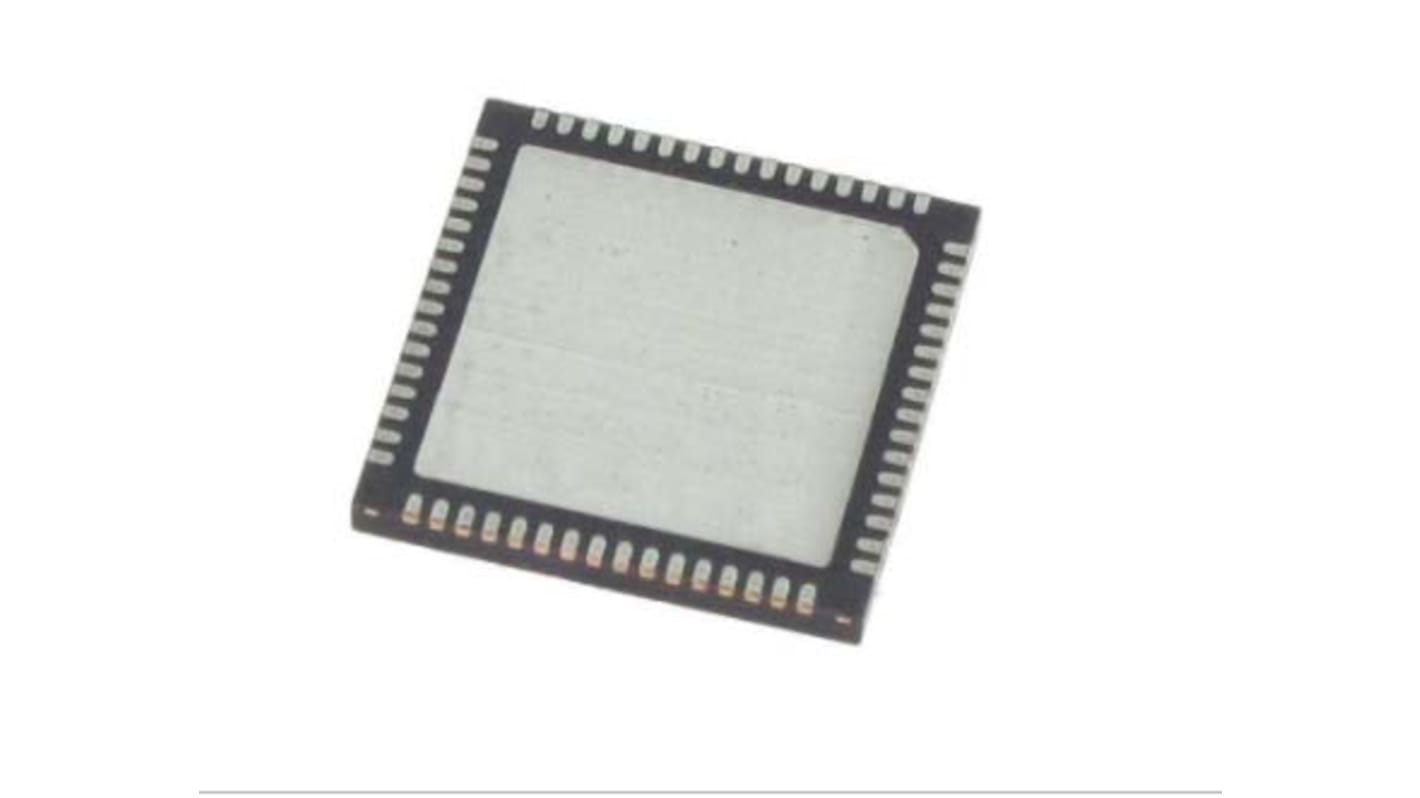

Microchip ATSAME51J19A-MU, 32bit ARM Cortex M4 MCU, 120MHz, 512 kB Flash, 64-Pin VQFN

  • RS-artikelnummer 144-9542
  • Tillv. art.nr ATSAME51J19A-MU
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

The SAM D51 high performance micro-controller series is targeted for general purpose applications using the 32-bit ARM® Cortex®-M4 processor with Floating Point Unit (FPU), running up to 120 MHz ,up to 1 MB Dual Panel Flash with ECC, and up to 256 KB of SRAM with ECC.

Quad Serial Peripheral Interface(QSPI) with Execute in Place (XIP) Support.
Up to 2 Secure Digital Host Controller (SDHC)
Inter-IC Sound(I2S)Controller for Audio
Peripheral Touch Controller (PTC) supporting up to 256 channels of capacitive touch .
Full speed USB with embedded Host/device.
Supports 5 Low power modes with class leading 65μA/MHz Active Power Performance.

Specifikationer
Attribute Value
Family Name ATSAME51
Package Type VQFN
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 512 kB
Maximum Frequency 120MHz
RAM Size 192 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 24
Number of SPI Channels 6
Typical Operating Supply Voltage 1.71 → 3.6 V
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Width 9mm
ADCs 2 (24 x 12 bit)
Number of USART Channels 2
Number of Timers 1 (16-bit), 2 (24-bit)
Number of CAN Channels 2
Timers 1 (1 x 16 bit), 1 (2 x 24 bit)
Timer Resolution 16 bit, 24 bit
Instruction Set Architecture Thumb-2
ADC Resolution 12bit
Maximum Number of Ethernet Channels 1
PWM Channels 13
Number of I2C Channels 6
Height 1mm
Number of Ethernet Channels 1
Data Rate 2Mbit/s
Maximum Operating Temperature +85 °C
Pulse Width Modulation 1 (13 Channel)
Length 9mm
Dimensions 9 x 9 x 1mm
Number of ADC Units 2
280 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
29,48 kr
(exkl. moms)
36,85 kr
(inkl. moms)
Enheter
Per unit
1 +
29,48 kr
Förpackningsalternativ:
