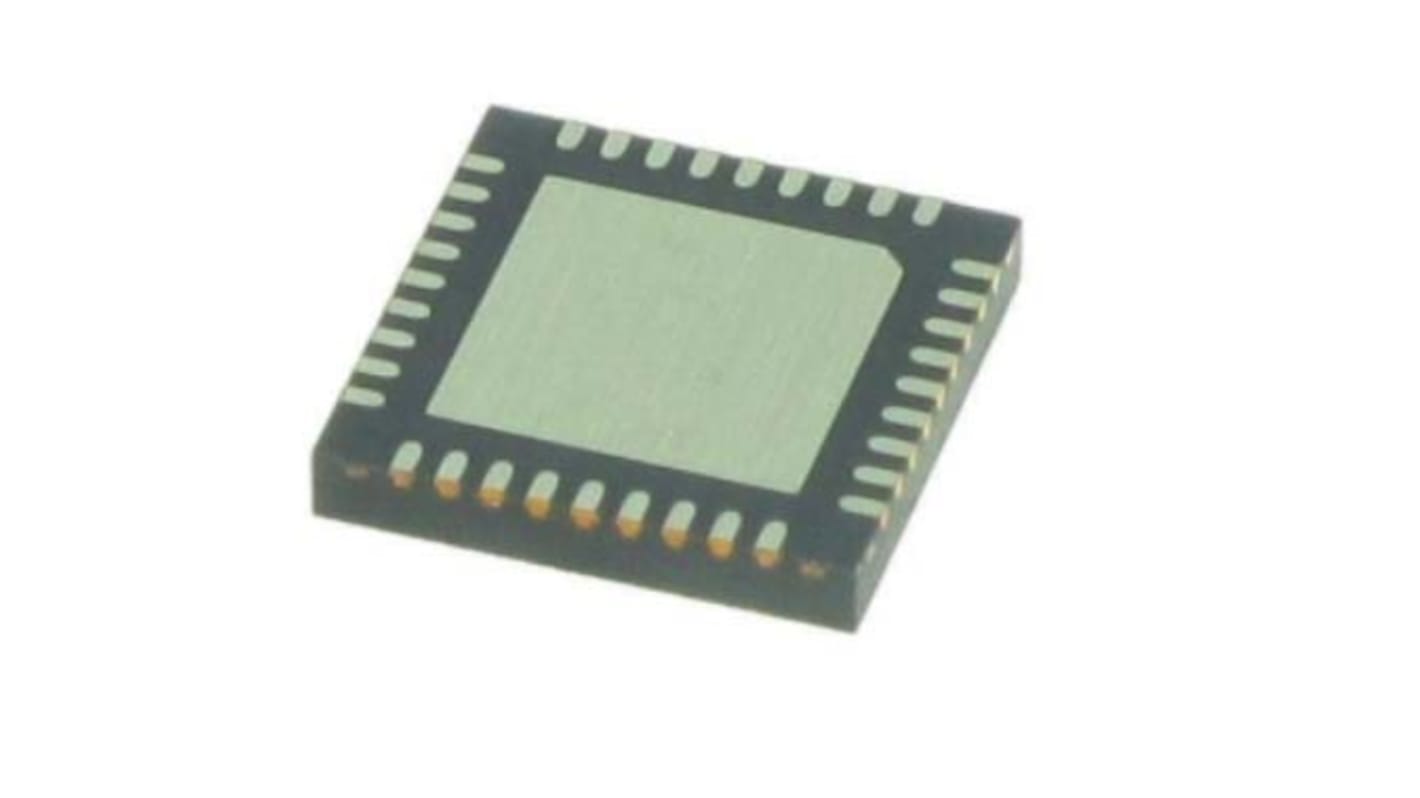

Microchip PIC32MM0256GPM036-I/M2, 32bit microAptiv CPU Microcontroller, 25MHz, 256 kB Flash, 36-Pin VQFN

  • RS-artikelnummer 144-9524
  • Tillv. art.nr PIC32MM0256GPM036-I/M2
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

PIC32MMxxxxGPM 32-Bit Microcontrollers

Microchip 32-bit PIC32MM family microcontrollers with microAptiv™ UC core and ECC Flash program memory. They feature the microMIPS™ instruction set for 35% smaller code while retaining 98% performance compared to MIPS32 processors. These PIC32MM MCUs are from Microchip's lowest power and most cost-effective family of 32-bit PIC32 microcontrollers. They are high performance general purpose MCUs ideal for applications demanding low power and longer battery life. Featuring core-independent peripherals, these MCUs offload key functions from the CPU. The devices are fully supported by Microchip’s MPLAB® Code Configurator (MCC) software to help simplify designs. Typical target applications include IoT sensor nodes, environmental monitoring devices, portable medical or fitness devices, building automation/control and low-cost motor control applications.
These 'GPM' parts represent an upgrade path from the 'GPL' parts in that they contain more memory and provide USB 2.0 Host, Device and OTG connectivity.

High-performance 32-bit microcontrollers designed for: High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio

Specifikationer
Attribute Value
Family Name PIC32MM0256GPM036
Package Type VQFN
Mounting Type Surface Mount
Pin Count 36
Device Core MicroAptiv CPU
Data Bus Width 32bit
Program Memory Size 256 kB
Maximum Frequency 25MHz
RAM Size 32 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 15
Number of SPI Channels 3
Typical Operating Supply Voltage 2 → 3.6 V
Dimensions 6 x 6 x 0.95mm
Width 6mm
ADCs 1 (15 x 12 bit)
Program Memory Type Flash
Length 6mm
Pulse Width Modulation 1 (20 Channel)
Number of UART Channels 3
Height 0.95mm
Minimum Operating Temperature -40 °C
Instruction Set Architecture MIPS32
Timers 1 (21 x 16 bit)
Timer Resolution 16bit
ADC Resolution 12bit
Number of Timers 21
Number of LIN Channels 3
Number of ADC Units 1
PWM Channels 20
Number of I2C Channels 3
Maximum Operating Temperature +85 °C
490 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
14,52 kr
(exkl. moms)
18,15 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 +
14,52 kr
72,60 kr
