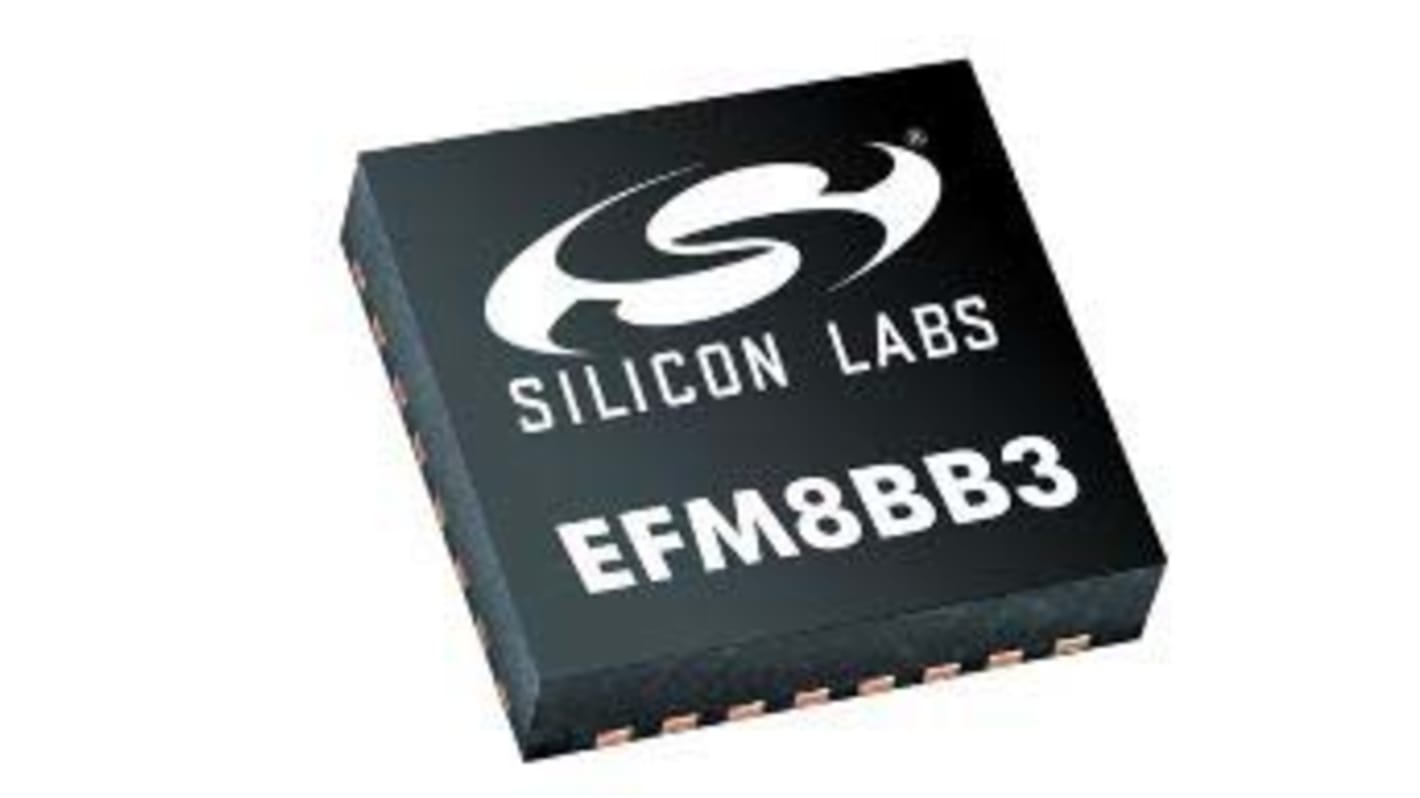

Silicon Labs EFM8BB31F64I-B-5QFN32, 8bit CIP-51 Microcontroller, 50MHz, 64 kB Flash, 32-Pin QFN

  • RS-artikelnummer 144-9496
  • Tillv. art.nr EFM8BB31F64I-B-5QFN32
  • Tillverkare / varumärke Silicon Labs
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

The EFM8BB31F16I-4QFN24 is part of the Busy Bee family of 8051 based 8-bit MCUs. Built on top of a low power platform this device operates at 50 MHz. The EFM8BB31F16I-4QFN24 includes 16 kB Flash, 2.25 kB RAM, 20 Dig I/O Pins, 6 x 16-bit Timers, 0 PCA Channels, -40 to 125 ºC temperature range, Industrial grade, 4x4 QFN24 package, and additional communication peripherals.

Pipelined 8-bit 8051 MCU Core with
50 MHz operating frequency
Up to 29 multifunction I/O pins
One 12-bit/10-bit ADC
Four 12-bit DACs with synchronization
and PWM capabilities
Two low-current analog comparators with
built-in reference DACs
Internal temperature sensor
Internal 49 MHz and 24.5 MHz oscillators
accurate to ±2%
Four channels of Configurable Logic
6-channel PWM / PCA
Six 16-bit general-purpose timersCore:
Pipelined CIP-51 Core
Fully compatible with standard 8051 instruction set
70% of instructions execute in 1-2 clock cycles
50 MHz maximum operating frequency
Memory:
Up to 64 kB flash memory (63 kB user-accessible), in-sys-
tem re-programmable from firmware in 512-byte sectors
Up to 4352 bytes RAM (including 256 bytes standard 8051
RAM and 4096 bytes on-chip XRAM)
Power:
Internal LDO regulator for CPU core voltage
Power-on reset circuit and brownout detectors
I/O: Up to 29 total multifunction I/O pins:
Up to 25 pins 5 V tolerant under bias
Selectable state retention through reset events
Flexible peripheral crossbar for peripheral routing
5 mA source, 12.5 mA sink allows direct drive of LEDs
Clock Sources:
Internal 49 MHz oscillator with accuracy of ±2%
Internal 24.5 MHz oscillator with ±2% accuracy
Internal 80 kHz low-frequency oscillatorAnalog:
12/10-Bit Analog-to-Digital Converter (ADC)
Internal temperature sensor
4 x 12-Bit Digital-to-Analog Converters (DAC)
2 x Low-current analog comparators with adjustable refer-
ence
Communications and Digital Peripherals:
2 x UART, up to 3 Mbaud
SPI™ Master / Slave, up to 12 Mbps
SMBus™/I2C™ Master / Slave, up to 400 kbps
I
2C High-Speed Slave, up to 3.4 Mbps
16-bit CRC unit, supporting automatic CRC of flash at 256-
byte boundaries
4 Configurable Logic Units
Timers/Counters and PWM:
6-channel programmable counter array (PCA) supporting
PWM, capture/compare, and frequency output modes
6 x 16-bit general-purpose timers
Independent watchdog timer, clocked from the low frequen-
cy oscillator
On-Chip, Non-Intrusive Debugging

Specifikationer
Attribute Value
Family Name EFM8BB3
Package Type QFN
Mounting Type Surface Mount
Pin Count 32
Device Core CIP-51
Data Bus Width 8bit
Program Memory Size 64 kB
Maximum Frequency 50MHz
RAM Size 4.352 kB
Number of PWM Units 1
ADC Channels 20
Number of SPI Channels 1
Typical Operating Supply Voltage 2.2 → 3.6 V
Dimensions 5 x 5 x 0.75mm
Length 5mm
Pulse Width Modulation 1 (6 Channel)
Number of UART Channels 2
Maximum Operating Temperature +125 °C
Height 0.75mm
Number of I2C Channels 1
Instruction Set Architecture 8051
Minimum Operating Temperature -40 °C
Automotive Standard AEC-Q100
PWM Channels 6
Timer Resolution 16bit
ADC Resolution 12bit
Number of Timers 6
Number of ADC Units 1
ADCs 1 (20 x 12 bit)
Width 5mm
Program Memory Type Flash
Timers 1 (6 x 16 bit)
Tillfälligt slut i lager – restorder för leverans 2020-04-29
Pris (ex. moms) Each (In a Tube of 73)
9,844 kr
(exkl. moms)
12,305 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
73 - 73
9,844 kr
718,612 kr
146 - 292
9,585 kr
699,705 kr
365 - 657
9,34 kr
681,82 kr
730 +
9,106 kr
664,738 kr
