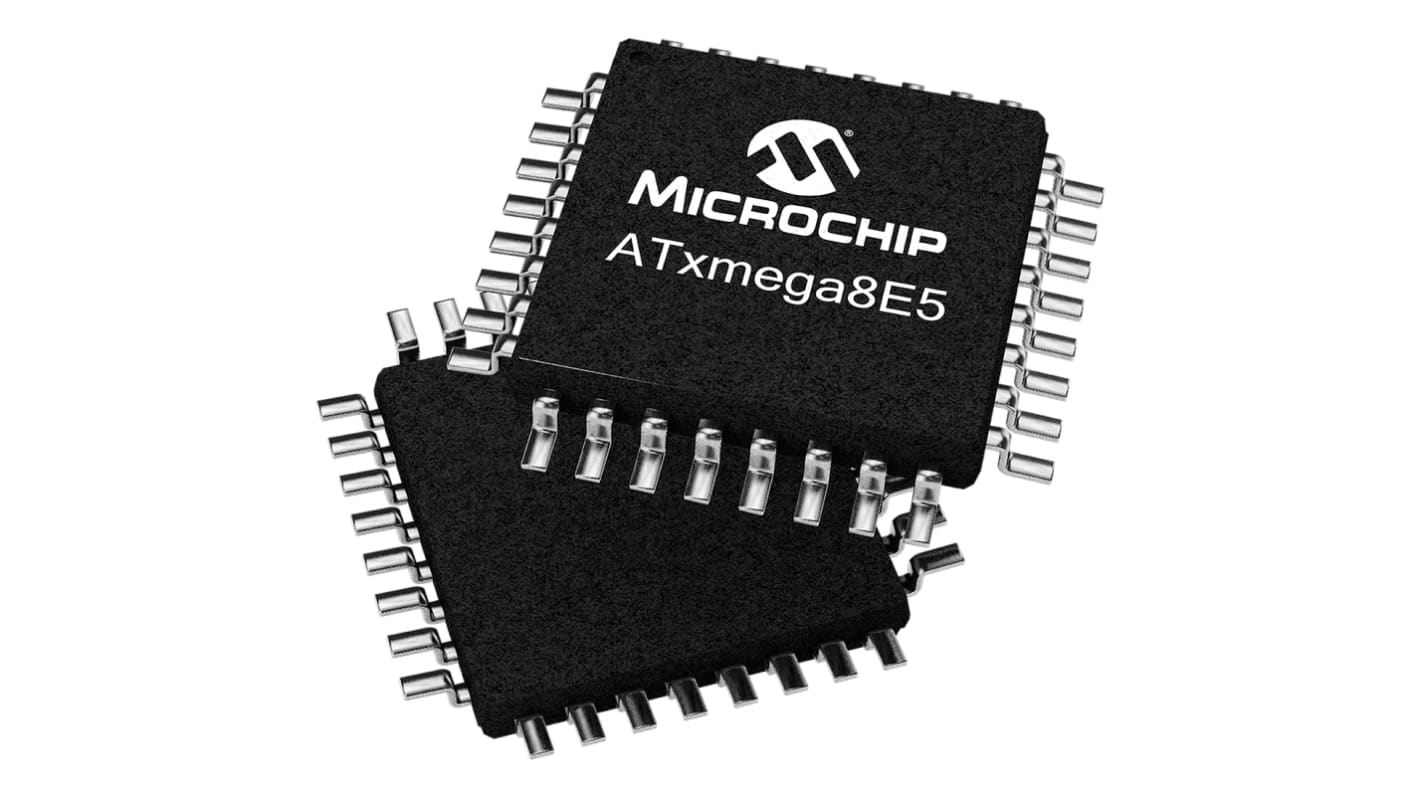

Microchip Technology ATXMEGA8E5-AU, 8/16bit AVR Microcontroller, 32MHz, 8 + 2 kB Flash, 32-Pin TQFP

  • RS-artikelnummer 133-1743
  • Tillv. art.nr ATXMEGA8E5-AU
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

8/16-Bit AVR XMEGA Microcontrollers

Atmel AVR XMEGA microcontrollers deliver the best possible combination of real-time performance, high integration and low power consumption for 8/16-bit MCU applications.
Atmel AVR XMEGA devices employ advanced analogue-to-digital converters (ADCs) that deliver both high speed and high resolution. These ADCs offer up to four conversion channels with different result registers, which can have different setup and configuration processes. This provides easier use since different software modules can access and use an ADC independently.

The Event System facilitates inter-peripheral signaling for short and 100% predictable response time. This ensures real-time control, and also offloads the CPU because each time an event is used, one interrupt with context switch is eliminated. Most of the peripherals and the DMA controller are connected to the Event System. The AVR XMEGA E series features an asynchronous peripheral Event System instead.

The AVR XMEGA 4-channel direct memory access (DMA) controller can be used for fast, CPU-independent data transfer between any combination of data memory and peripherals.
AVR XMEGA devices use the Atmel AVR CPU. The instruction set and design of the CPU are tuned to minimize code size and maximize execution speed. Its true single-cycle execution of arithmetic and logic operations means AVR XMEGA microcontrollers perform close to 1MIPS per MHz. The fast-access register file with 32 x 8-bit general-purpose working registers is directly connected to the arithmetic logic unit (ALU). During a single clock cycle, the ALU can be fed two arbitrary registers, do a requested operation, and write back the result. It provides efficient support for 8-, 16- and 32-bit arithmetic.

Specifikationer
Attribute Value
Family Name AVR XMEGA
Package Type TQFP
Mounting Type Surface Mount
Pin Count 32
Device Core AVR
Data Bus Width 8/16bit
Program Memory Size 8 + 2 kB
Maximum Frequency 32MHz
RAM Size 1 kB
Number of PWM Units 1
ADC Channels 16
Typical Operating Supply Voltage 1.6 → 3.6 V
Number of ADC Units 1
ADC Resolution 12bit
Timers 1(3 x 16 bit)
PWM Channels 16
Maximum Operating Temperature +85 °C
Timer Resolution 16bit
Height 1.05mm
Instruction Set Architecture RISC
Number of Timers 1
Dimensions 7.1 x 7.1 x 1.05mm
Width 7.1mm
Length 7.1mm
ADCs 1(16 x 12 bit)
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Pulse Width Modulation 1(16 Channel)
614 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 2)
22,955 kr
(exkl. moms)
28,694 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
2 - 8
22,955 kr
45,91 kr
10 - 22
21,455 kr
42,91 kr
24 - 98
20,215 kr
40,43 kr
100 +
19,44 kr
38,88 kr
