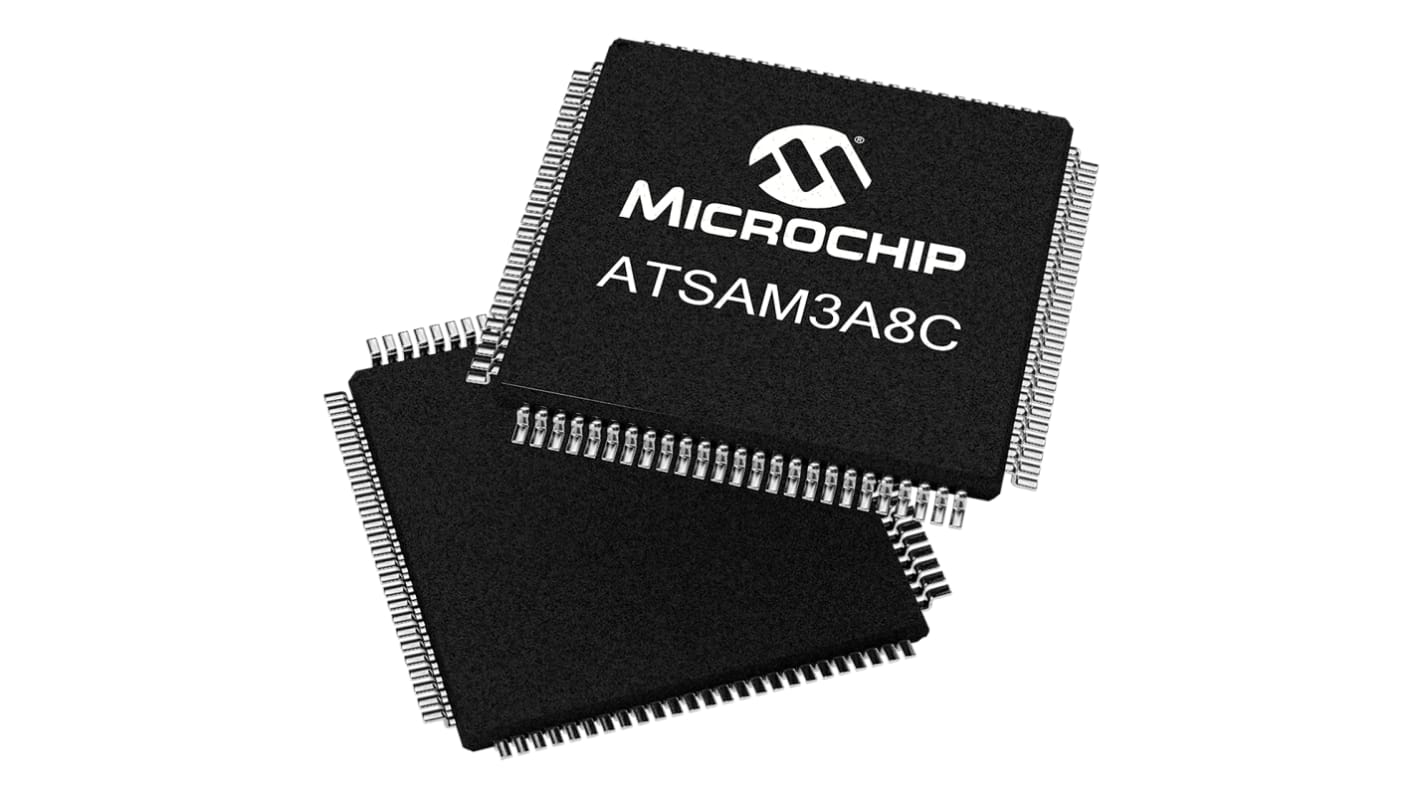

Microchip, 32bit ARM Cortex M3, SAM3A Microcontroller, 84MHz, 512 kB Flash, 100-Pin LQFP
- RS-artikelnummer:
- 131-0378
- Tillv. art.nr:
- ATSAM3A8CA-AU
- Tillverkare / varumärke:
- Microchip
- RS-artikelnummer:
- 131-0378
- Tillv. art.nr:
- ATSAM3A8CA-AU
- Tillverkare / varumärke:
- Microchip
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Family Name | SAM3A | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 84MHz | |
| RAM Size | 96 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 4 | |
| Number of I2C Channels | 2 | |
| Typical Operating Supply Voltage | 1.8 V, 3.3 V | |
| Number of UART Channels | 4 | |
| Number of USART Channels | 4 | |
| Number of CAN Channels | 2 | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| ADCs | 16 x 12 bit | |
| Maximum Number of Ethernet Channels | 1 | |
| Length | 14mm | |
| Height | 1.45mm | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Dimensions | 14 x 14 x 1.45mm | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 1 (8 x 16 bit) | |
| Width | 14mm | |
| Minimum Operating Temperature | -40 °C | |
Välj alla | ||
|---|---|---|
Brand Microchip | ||
Family Name SAM3A | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 100 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 512 kB | ||
Maximum Frequency 84MHz | ||
RAM Size 96 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 x 16 bit | ||
Number of SPI Channels 4 | ||
Number of I2C Channels 2 | ||
Typical Operating Supply Voltage 1.8 V, 3.3 V | ||
Number of UART Channels 4 | ||
Number of USART Channels 4 | ||
Number of CAN Channels 2 | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
ADCs 16 x 12 bit | ||
Maximum Number of Ethernet Channels 1 | ||
Length 14mm | ||
Height 1.45mm | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Dimensions 14 x 14 x 1.45mm | ||
Instruction Set Architecture RISC | ||
Program Memory Type Flash | ||
Pulse Width Modulation 1 (8 x 16 bit) | ||
Width 14mm | ||
Minimum Operating Temperature -40 °C | ||
