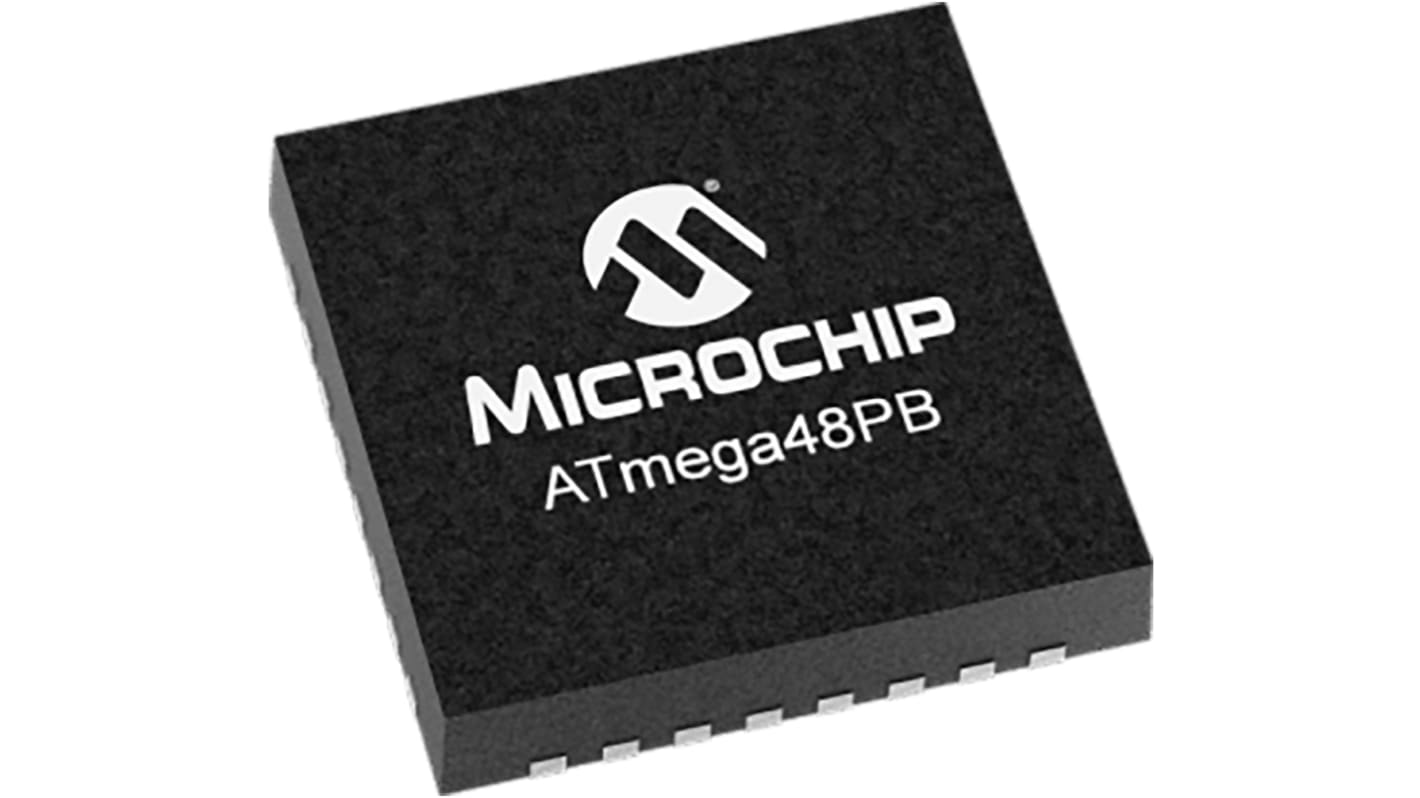

Microchip Technology ATMEGA48PB-MU, 8bit AVR Microcontroller, 20MHz, 4 kB Flash, 32-Pin VFQFN

  • RS-artikelnummer 131-0307
  • Tillv. art.nr ATMEGA48PB-MU
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

8-Bit PicoPower megaAVR Family Microcontrollers

This range of megaAVR microcontrollers feature picoPower technology — perfect for energy saving. They offer generous program and data memories with performance of up to 20 MIPS.

Features & Benefits of picoPower megaAVR microcontrollers
•On-chip Flash
•SRAM
•Internal EEPROM
•SPI
•TWI (I²C)
•USART, USB, CAN & LIN interfaces
•Watchdog timer
•Precision oscillator
•GPIO pins
•ADC
•DAC
•Built-in temperature sensor
•Internal voltage reference
•Brown-out detector

Specifikationer
Attribute Value
Family Name ATmega
Package Type VFQFN
Mounting Type Surface Mount
Pin Count 32
Device Core AVR
Data Bus Width 8bit
Program Memory Size 4 kB
Maximum Frequency 20MHz
RAM Size 512 B
Number of PWM Units 1
ADC Channels 8
Typical Operating Supply Voltage 1.8 → 5.5 V
Number of Timers 2
Number of ADC Units 1
Timers 1(1 x 16 bit), 1(2 x 8 bit)
Height 0.85mm
Timer Resolution 8 bit, 16 bit
PWM Channels 6
Maximum Operating Temperature +85 °C
ADC Resolution 10bit
Instruction Set Architecture RISC
ADCs 1(8 x 10 bit)
Width 5.1mm
Program Memory Type Flash
Minimum Operating Temperature -40 °C
Pulse Width Modulation 1(6 Channel)
Length 5.1mm
Dimensions 5.1 x 5.1 x 0.85mm
Denna produkt har utgått
