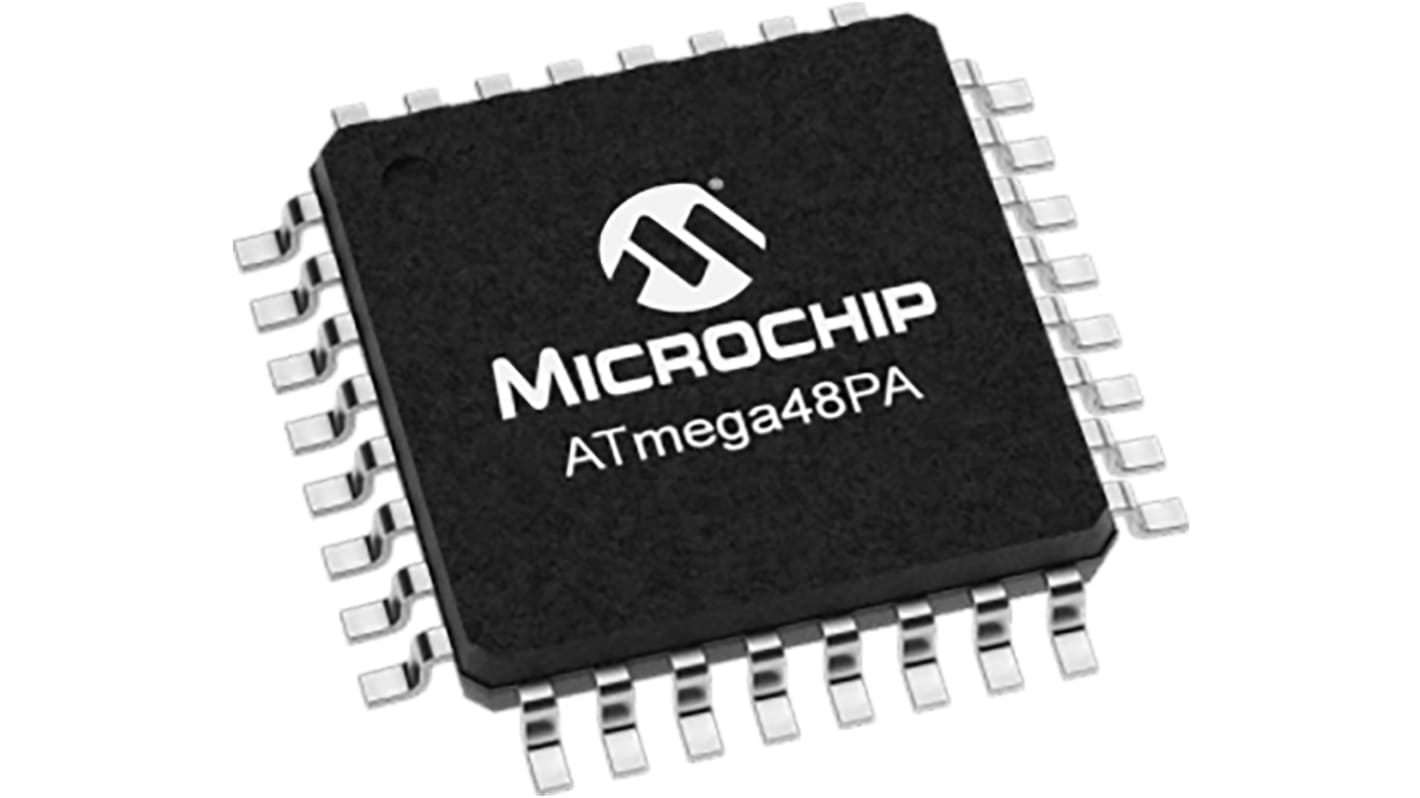

Microchip Technology ATMEGA48PA-MN, 8bit AVR Microcontroller, 20MHz, 4 kB Flash, 32-Pin QFN/MLF

  • RS-artikelnummer 131-0303
  • Tillv. art.nr ATMEGA48PA-MN
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

8-Bit megaAVR Microcontrollers, 4KB to 16KB Flash

Here at RS Components we have numerous megaAVR 8-bit microcontrollers from Atmel.Each microcontroller is based on an enhanced RISC architecture and features QTouch library support. All of the megaAVR microcontrollers have varying Kb of In-System Programmable Flash, EEPROM and SRAM as well as a variety of pin and package types.

Types of megaAVR 8-bit microcontrollers
•ATmega8
•ATmega16
•ATmega48
•ATmega88
•ATmega162
•ATmega164
•ATmega165
•ATmega168
•ATmega8515
•ATmega8535

Specifikationer
Attribute Value
Family Name ATmega
Package Type QFN/MLF
Mounting Type Surface Mount
Pin Count 32
Device Core AVR
Data Bus Width 8bit
Program Memory Size 4 kB
Maximum Frequency 20MHz
RAM Size 512 B
Number of PWM Units 1
ADC Channels 8
Typical Operating Supply Voltage 1.8 → 5.5 V
Width 5.1mm
ADCs 1(8 x 10 bit)
Instruction Set Architecture RISC
Number of ADC Units 1
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Number of Timers 2
PWM Channels 6
Timers 1(1 x 16 bit), 1(2 x 8 bit)
Height 0.95mm
Timer Resolution 8 bit, 16 bit
Maximum Operating Temperature +85 °C
ADC Resolution 10bit
Pulse Width Modulation 1(6 Channel)
Dimensions 5.1 x 5.1 x 0.95mm
Length 5.1mm
285 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
12,036 kr
(exkl. moms)
15,045 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 5
12,036 kr
60,18 kr
10 - 20
11,23 kr
56,15 kr
25 - 95
10,94 kr
54,70 kr
100 +
10,03 kr
50,15 kr
