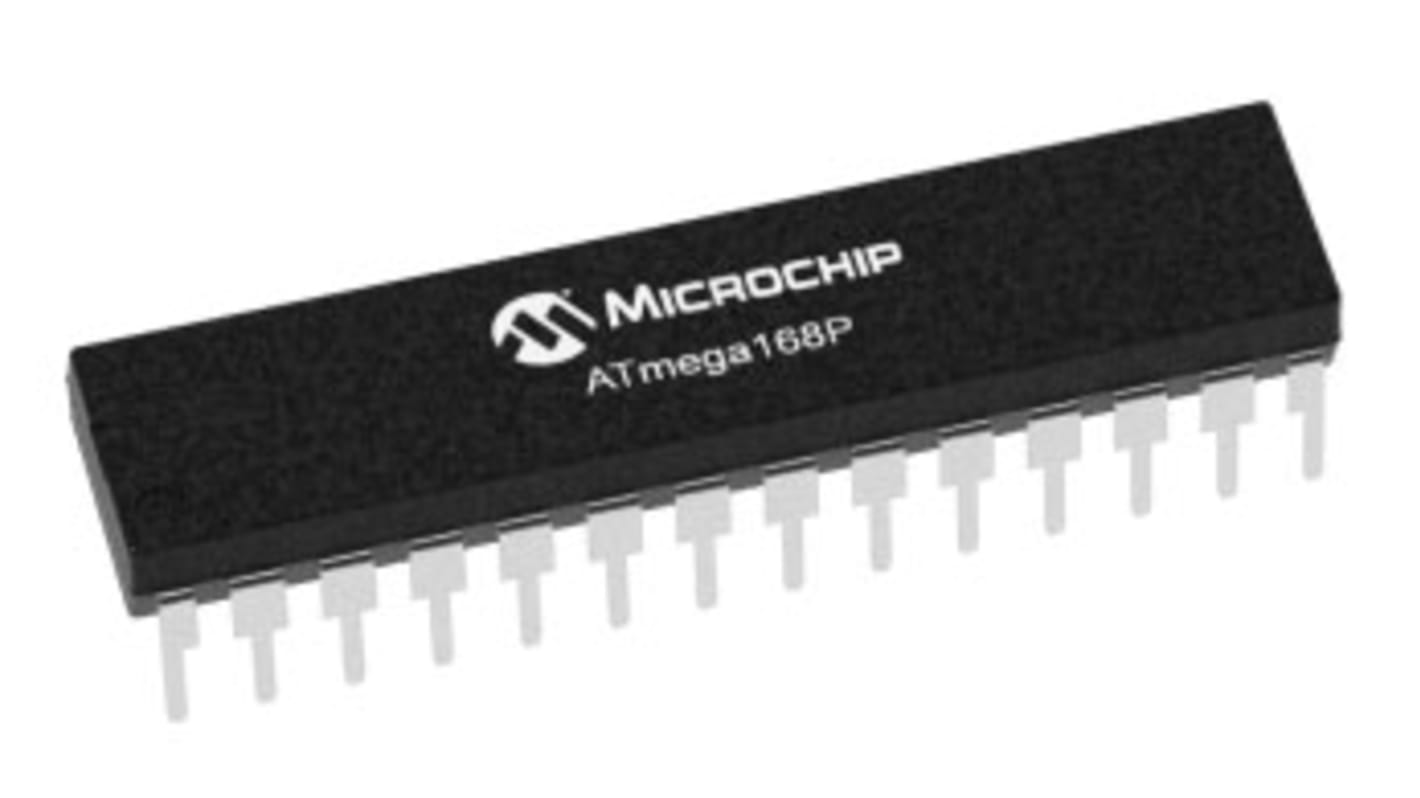

Microchip Technology ATMEGA168P-20PU, 8bit AVR Microcontroller, 20MHz, 16 kB Flash, 28-Pin PDIP

  • RS-artikelnummer 127-8264
  • Tillv. art.nr ATMEGA168P-20PU
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TH
Produktdetaljer

8-Bit PicoPower megaAVR Family Microcontrollers

This range of megaAVR microcontrollers feature picoPower technology — perfect for energy saving. They offer generous program and data memories with performance of up to 20 MIPS.

Features & Benefits of picoPower megaAVR microcontrollers
•On-chip Flash
•SRAM
•Internal EEPROM
•SPI
•TWI (I²C)
•USART, USB, CAN & LIN interfaces
•Watchdog timer
•Precision oscillator
•GPIO pins
•ADC
•DAC
•Built-in temperature sensor
•Internal voltage reference
•Brown-out detector

Specifikationer
Attribute Value
Family Name ATmega
Package Type PDIP
Mounting Type Through Hole
Pin Count 28
Device Core AVR
Data Bus Width 8bit
Program Memory Size 16 kB
Maximum Frequency 20MHz
RAM Size 1 kB
Number of PWM Units 1
ADC Channels 8
Typical Operating Supply Voltage 2.7 → 5.5 V
Pulse Width Modulation 1(6 Channel)
Length 34.79mm
Dimensions 34.79 x 7.49 x 4.06mm
Width 7.49mm
Program Memory Type Flash
Minimum Operating Temperature -40 °C
Number of Timers 2
Number of ADC Units 1
Instruction Set Architecture RISC
ADCs 1(6 x 10 bit)
PWM Channels 6
Timers 1(1 x 16 bit), 1(2 x 8 bit)
Height 4.06mm
Timer Resolution 8 bit, 16 bit
Maximum Operating Temperature +85 °C
ADC Resolution 10bit
16 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 2)
28,795 kr
(exkl. moms)
35,994 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
2 - 8
28,795 kr
57,59 kr
10 - 22
26,985 kr
53,97 kr
24 - 98
25,435 kr
50,87 kr
100 +
24,30 kr
48,60 kr
Förpackningsalternativ:
