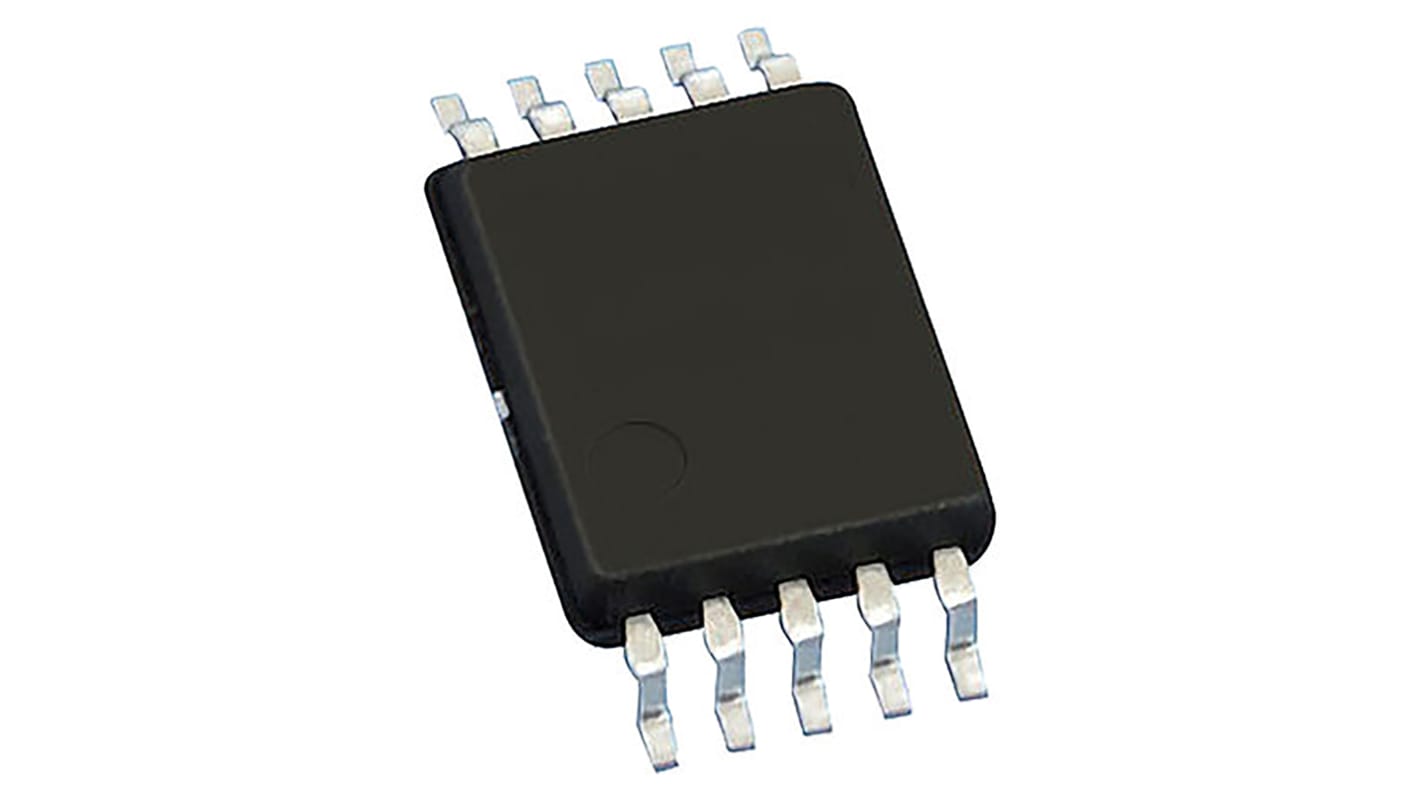

Renesas Electronics, 8bit RL78-S1, RL78/G10 Microcontroller MCU, 20MHz, 2 kB Flash, 10-Pin LSSOP

Se alla Microcontrollers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Förpackningsalternativ:
RS-artikelnummer:
126-0504
Tillv. art.nr:
R5F10Y16DSP#30
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Family Name

RL78/G10

Package Type

LSSOP

Mounting Type

Surface Mount

Pin Count

10

Device Core

RL78-S1

Data Bus Width

8bit

Program Memory Size

2 kB

Maximum Frequency

20MHz

RAM Size

256 B

USB Channels

0

Typical Operating Supply Voltage

2 → 5.5 V

Length

3.9mm

Program Memory Type

Flash

ADCs

1(4 x 10 bit), 1(4 x 8 bit)

Maximum Operating Temperature

+85 °C

Number of ADC Units

1

Dimensions

3.9 x 5.4 x 1.2mm

Instruction Set Architecture

CISC Harvard

Width

5.4mm

Height

1.2mm

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
MY

RL78/G10, 16-Bit Microcontrollers, Renesas Electronics


The RL78/G10 is a low pin count microcontroller with the special built-in features of a reset circuit with a low voltage detection function and a watchdog timer. The RL78/G10 is ideal for products requiring small memory and small packages such as home appliances and general consumer.

CISC architecture
High precision on-chip oscillator for up to 20MHz CPU operation
1 KB to 4 KB flash memory
128 to 512 bytes of RAM
Operating ambient temperature of -40 to +85 °C


RL78 Family Microcontrollers, Renesas Electronics
