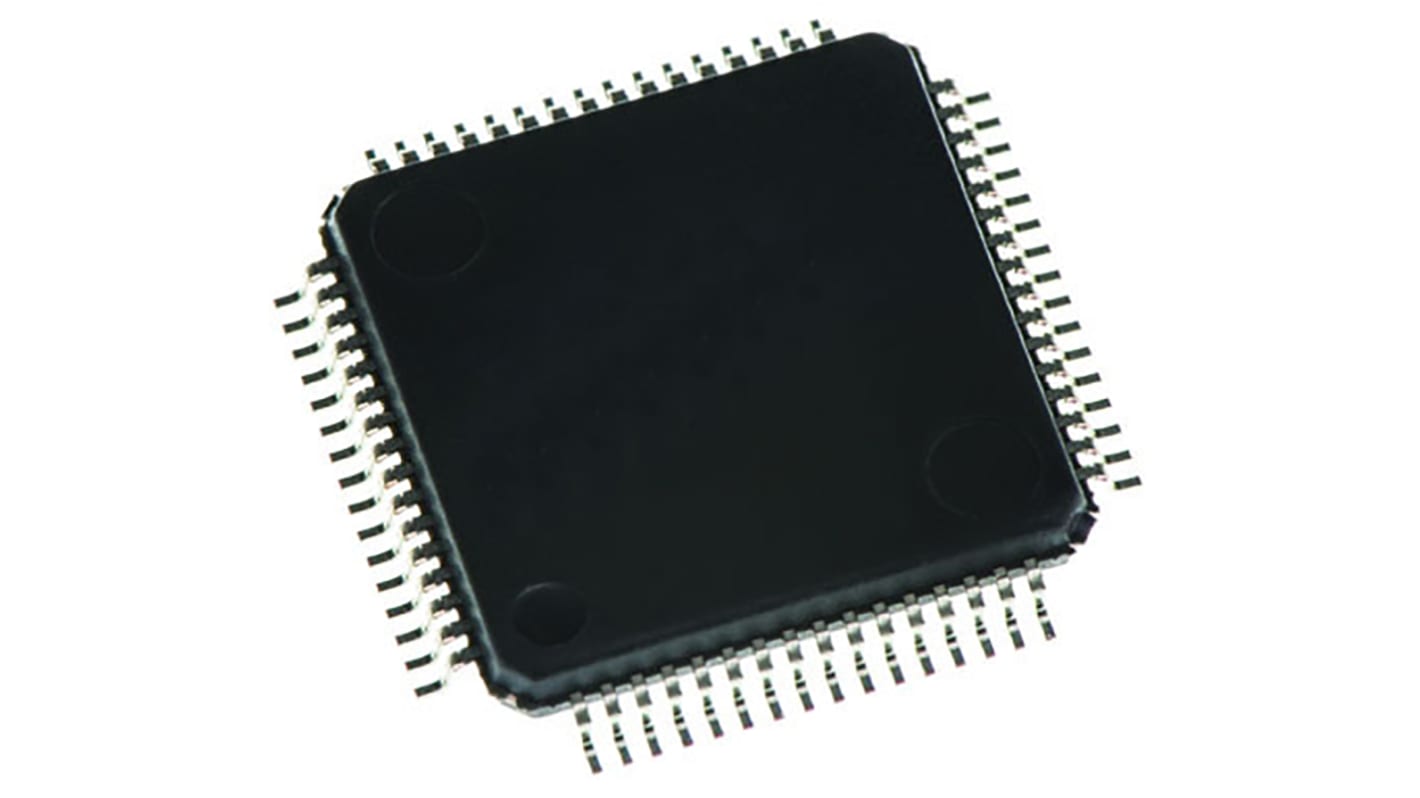

Renesas Electronics R5F52306ADFM#30, 32bit RXv2 CPU Microcontroller, RX230, 54MHz, 256 kB Flash, 64-Pin LFQFP
- RS-artikelnummer:
- 124-0445
- Tillv. art.nr:
- R5F52306ADFM#30
- Tillverkare / varumärke:
- Renesas Electronics
Denna produkt har utgått
- RS-artikelnummer:
- 124-0445
- Tillv. art.nr:
- R5F52306ADFM#30
- Tillverkare / varumärke:
- Renesas Electronics
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
RX230 Microcontrollers
The RX230 microcontroller is a slimmed-down version of the RX231 that can deliver up to 88.56DMIPS, supports Floating Point maths operations and offers an extensive suite of on-board peripherals to suit general purpose applications.
• 54MHz 32-bit RXv2 core microcontroller with FPU
• Up to 256KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Real-Time clock with battery back-up
• Up to 24-channel Capacitive Touch Interface Unit
• Serial communication: I²C, SPI, SSI
• Memory Protection Unit
• Event Link Controller
• Temperature sensor
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit (RAM Test Assist)
• 14-bit Independent Watchdog Timer
• ADC self-diagnostic function
• CRC Calculator
Standards
IEC 60730
Specifikationer
Attribute | Value |
|---|---|
| Family Name | RX230 |
| Package Type | LFQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | RXv2 CPU |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 54MHz |
| RAM Size | 32 kB |
| USB Channels | 0 |
| Number of PWM Units | 0 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| ADCs | 1 (12 x 12 bit) |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Dimensions | 10.1 x 10.1 x 1.55mm |
| Width | 10.1mm |
| Number of ADC Units | 1 |
| Instruction Set Architecture | CISC Harvard |
| Minimum Operating Temperature | -40 °C |
| Length | 10.1mm |
| Height | 1.55mm |
