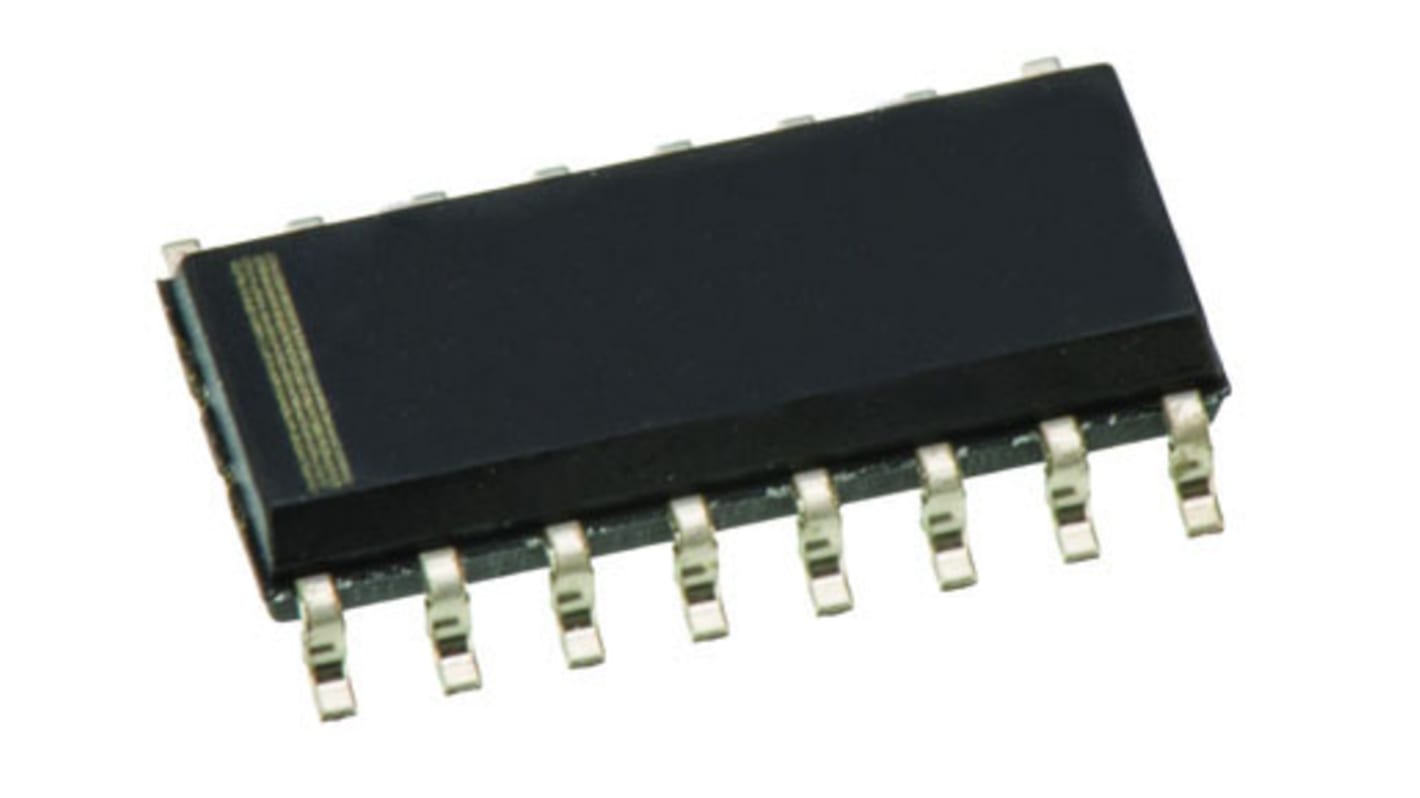

Silicon Labs EFM8BB10F8I-A-SOIC16, 8bit Microcontroller, 25MHz, 8 kB Flash, 16-Pin SOIC

  • RS-artikelnummer 121-6921
  • Tillv. art.nr EFM8BB10F8I-A-SOIC16
  • Tillverkare / varumärke Silicon Labs
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TH
Produktdetaljer

EFM8BB Busy Bee Microcontrollers, Silicon Labs

The EFM8 Busy Bee 8-bit Microcontroller (MCU) devices are designed for use in a wide variety of general purpose applications. They operate at up 50MHz with a pipelined 8-bit C8051 core.

Up to 22 multifunction, +5V tolerant I/O pins
Priority crossbar for flexible pin mapping
12-bit Analogue to Digital converter (ADC) with up to 20 channels
Up to five 16-bit timers
Integrated temperature sensor
UART, SPI and SMBus/I²C serial communication

The EFM8 8-bit microcontroller family has an unparalleled combination of features and capabilities including a high-speed pipelined 8051 core, ultra-low power, precision analogue and enhanced communication peripherals, integrated oscillators, small-footprint packages, and a crossbar architecture that enables flexible digital and analogue multiplexing to simplify PCB design and I/O signal routing. These next-generation 8-bit devices are aimed at the engineer developing products for the Internet-of-Things (IoT) which will be very small, perform complex processing and run off tiny batteries.

Specifikationer
Attribute Value
Family Name EFM8BB1
Package Type SOIC
Mounting Type Surface Mount
Pin Count 16
Data Bus Width 8bit
Program Memory Size 8 kB
Maximum Frequency 25MHz
RAM Size 512 B
ADC Channels 12
Typical Operating Supply Voltage 2.2 → 3.6 V
Program Memory Type Flash
Timer Resolution 16bit
Data Rate 800ksps
ADC Resolution 12bit
Length 9.9mm
Dimensions 9.9 x 3.9 x 1.5mm
Timers 4 x 16 bit
Height 1.5mm
Number of Timers 4
Number of ADC Units 1
Instruction Set Architecture Pipelined
ADCs 1 (12 x 12 bit)
Width 3.9mm
190 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
3,402 kr
(exkl. moms)
4,252 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 +
3,402 kr
34,02 kr
Förpackningsalternativ:
