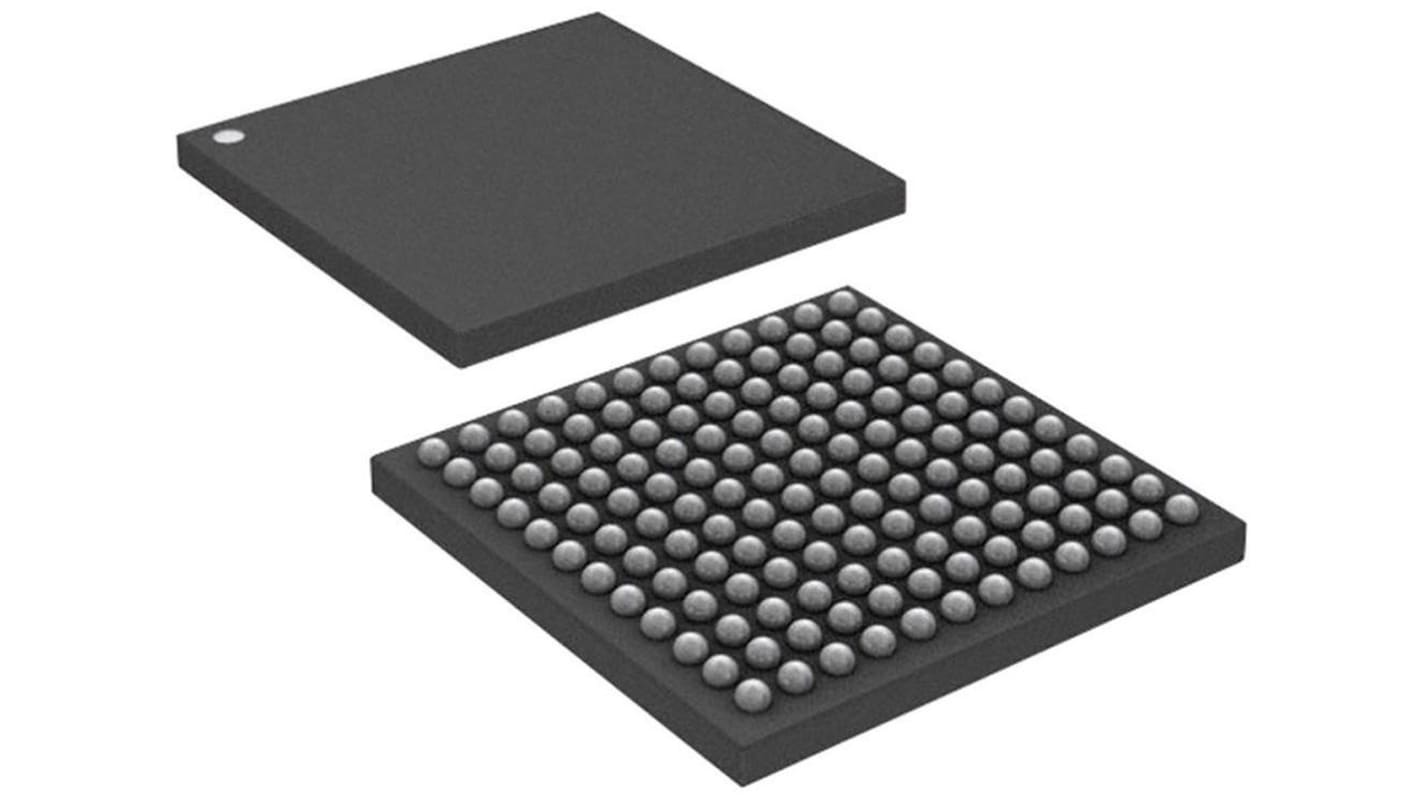

Infineon XMC4500E144X1024ACXQSA1, 32bit ARM Cortex M4 MCU, 120MHz, 1.024 MB Flash, 144-Pin LFBGA

  • RS-artikelnummer 110-7493
  • Tillv. art.nr XMC4500E144X1024ACXQSA1
  • Tillverkare / varumärke Infineon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

XMC4500 32-Bit Industrial Microcontrollers, Infineon

The DAVETM 3 software is a free tool chain that helps develop the software with the XMC4000 Series to utilise the hardware features. The DAVE tool incorporates all the features from existing DAVE tools and includes the IDE, Compiler, Debugger and low-level code generation. It is easy to use therefore the embedded code is called DAVE Apps; they can be downloaded and configured from the web. The free application code design lets you add as many apps as you need for your application from evaluation to production (E2P).
Download DAVETM for free at www.infineon.com/DAVE

ARM® Cortex™-M4, 120 MHz, including single cycle DSP MAC and floating point unit (FPU)
1 MB eFlash including hardware ECC
160Kb SRAM (XMC4504 128Kb)
12-channel DMA
IEEE 1588 compliant Ethernet MAC
USB 2.0 full-speed on-the-go
Comprehensive set of timers and PWM, Delta-sigma Demodulator, Position Interface
4x 12-bit ADC kernels with up to 26 channels, 2x 12-bit DAC
6x multi function serial interface modules configurable to SPI, I2C, I2S, UART
3x CAN nodes
External bus interface supporting SDRAM, SRAM, NOR-/NAND-Flash and memory-mapped I/O devices (i.e. LCD)
SD/MMC interface
Touch interface & LED Matrix
Battery-backed real-time clock with calender function and timebase or external wake-up capabilities

Specifikationer
Attribute Value
Family Name XMC4000
Package Type LFBGA
Mounting Type Surface Mount
Pin Count 144
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 1.024 MB
Maximum Frequency 120MHz
RAM Size 160 kB
ADC Channels 32
Typical Operating Supply Voltage 1.3 (Core) V, 3.3 (Digital) V
Program Memory Type Flash
ADC Resolution 12bit
Number of ADC Units 4
Maximum Number of Ethernet Channels 1
Instruction Set Architecture DSP, MAC
Minimum Operating Temperature -40 °C
Height 1.3mm
Data Rate 1Mbps
Maximum Operating Temperature +105 °C
Length 10mm
Dimensions 10 x 10 x 1.3mm
ADCs 4 (32 x 12 bit)
Width 10mm
89 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
73,31 kr
(exkl. moms)
91,64 kr
(inkl. moms)
Enheter
Per unit
1 +
73,31 kr
Förpackningsalternativ:
