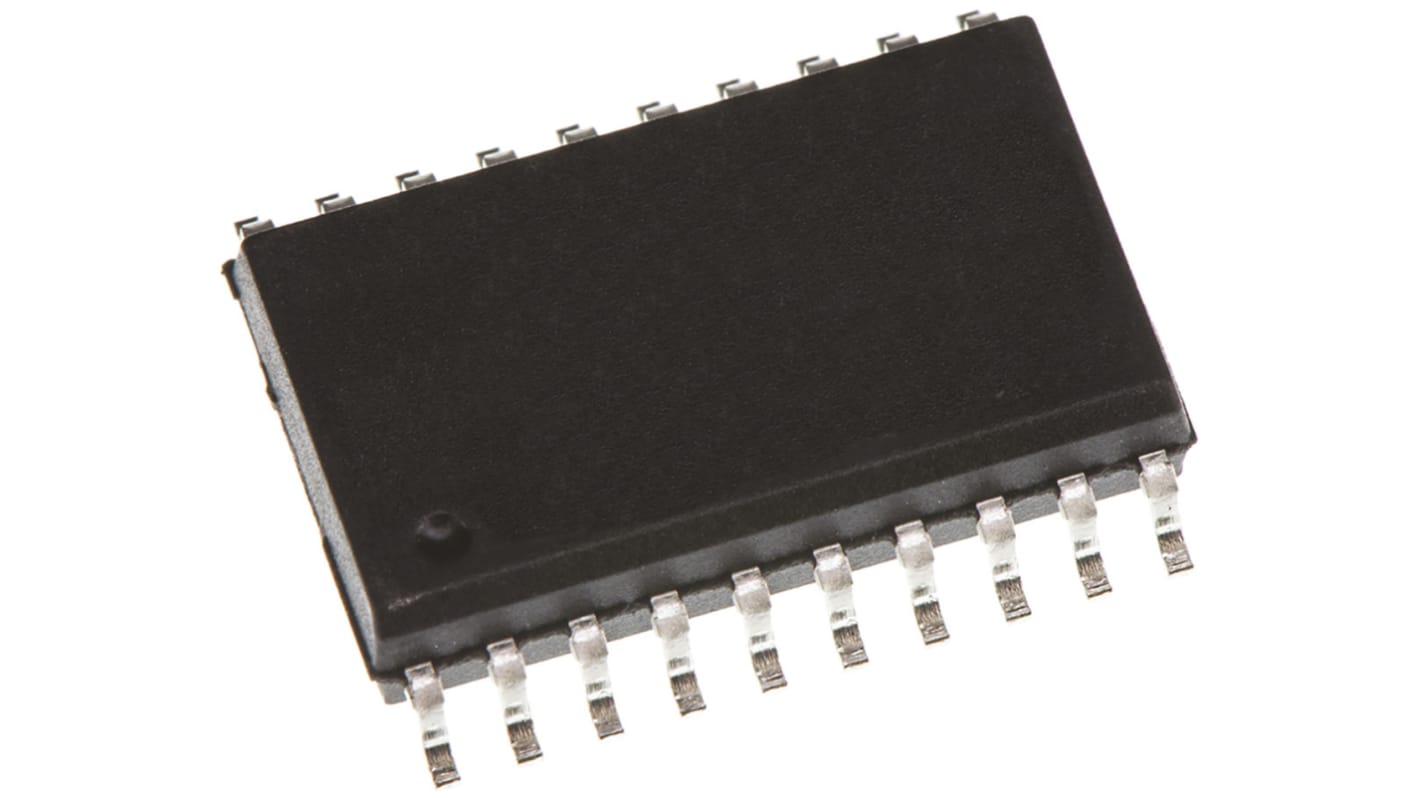

Microchip PIC16C771-I/SO, 8bit PIC Microcontroller, 20MHz, 4K x 14 words EPROM, 20-Pin SOIC

  • RS-artikelnummer 552-885
  • Tillv. art.nr PIC16C771-I/SO
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

PIC16C717/770/771 8-Bit Microcontrollers

The PIC16C range of Microcontrollers from Microchip are 8-bit CMOS MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Now supplanted by Flash based variants these devices are still popular in legacy designs. For new applications PIC16F variants should be considered.

The PIC16C717/770/771 family of microcontrollers is based upon Microchip’s mid-range architecture with an 8 level hardware stack and 35 14-bit instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory with data memory of 256 bytes RAM. On board is a RC oscillator with ±1% accuracy.

Features

35 Instructions
8 Level Hardware Stack
15 I/O Pins
1 Enhanced Capture, Compare, PWM (ECCP) Module
6 Channel Analogue-to-Digital Converter (ADC) – PIC16C717 10-bit, PIC16C770/771 12-bit
Two 8-bit Timers
One 16-bit Timer
Master Synchronous Serial Port (MSSP) with SPI and I2C
Watchdog Timer (WDT)
Power-on Reset (POR)
Power-up Timer (PWRT)
Oscillator Start-up Timer (OST)
Programmable Brown-out Reset (PBOR)
In-Circuit Serial Programming (ICSP)

Specifikationer
Attribute Value
Family Name PIC16C
Package Type SOIC
Mounting Type Surface Mount
Pin Count 20
Device Core PIC
Data Bus Width 8bit
Program Memory Size 4K x 14 words
Maximum Frequency 20MHz
RAM Size 256 B
Number of PWM Units 1
ADC Channels 6
Number of SPI Channels 1
Typical Operating Supply Voltage 4 → 5.5 V
Number of I2C Channels 1
Instruction Set Architecture RISC
PWM Resolution 10bit
Program Memory Type EPROM
Height 2.39mm
Width 7.59mm
ADCs 6 x 12 bit
Pulse Width Modulation 1(10 bit) (ECCP)
Length 13mm
Number of ADC Units 1
Number of Timers 3
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
ADC Resolution 12bit
Timer Resolution 8 bit, 16 bit
Timers 1 x 16 bit, 2 x 8 bit
Dimensions 13 x 7.59 x 2.39mm
591 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
26,78 kr
(exkl. moms)
33,48 kr
(inkl. moms)
Enheter
Per unit
1 - 9
26,78 kr
10 - 24
26,26 kr
25 - 99
25,85 kr
100 +
25,13 kr
