Microchip chipKIT WF32 Development Board TDGL021-2

  • RS-artikelnummer 798-3198
  • Tillv. art.nr TDGL021-2
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

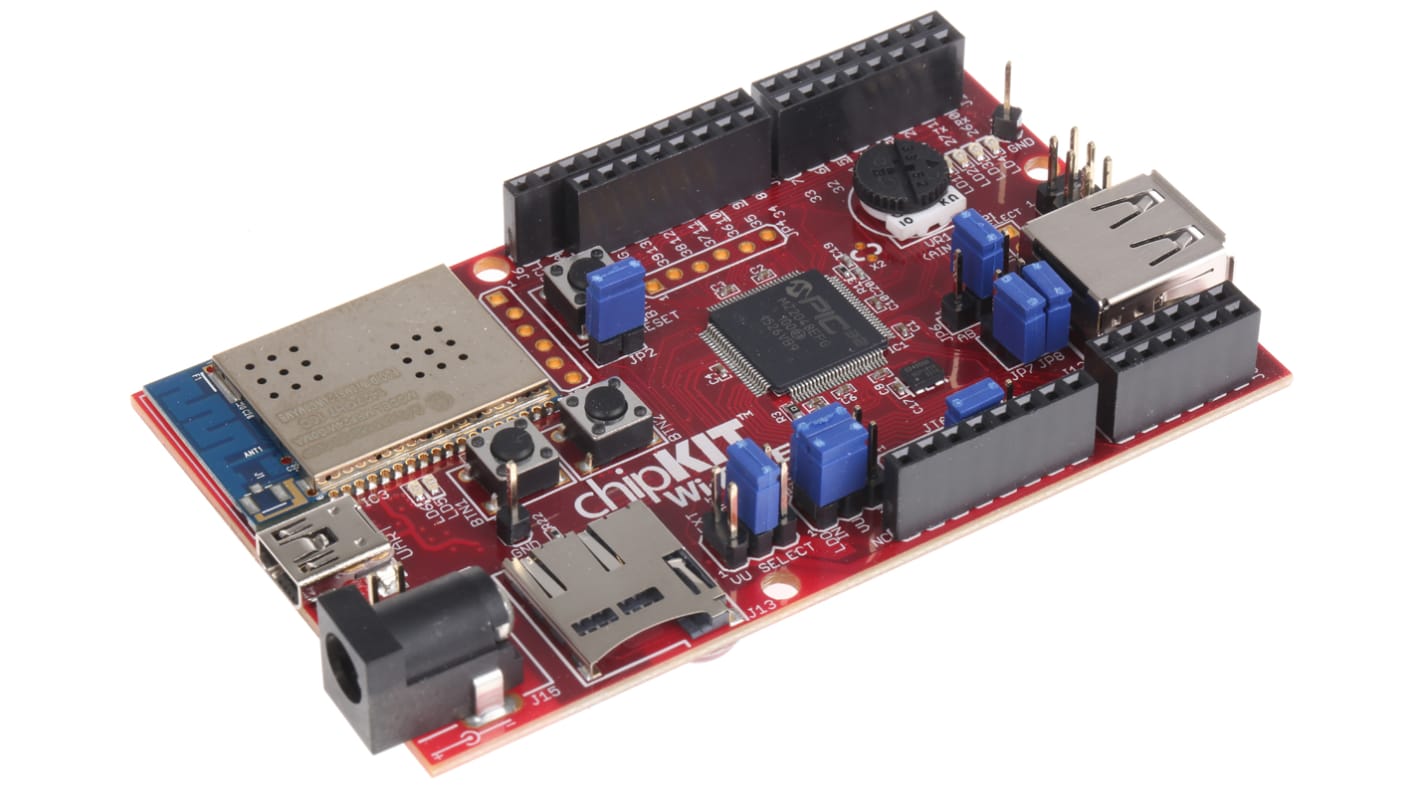

chipKIT™ Wi-FIRE™ Development Board

The chipKIT™ Wi-FIRE™ Development Board features a MIPS-core 32-bit PIC32MZ microcontroller and an MRF24 Wi-Fi module.

• 200MHz PIC32MZ2048EFG100 MIPS-core MCU with 2MB Flash memory, 512KB RAM • Real-Time Clock
• On-board Microchip MRF24WG0MA IEEE 802.11b/g WiFi module
• Micro SD card slot
• USB 2.0 Hi-Speed OTG via USB-A and micro-AB connectors
• Serial ports: UART, SPI, I²C
• On-board FT232RQ UART-USB Bridge
• 12 x Analogue inputs
• 6 x PWM outputs
• 43 x GPIO pins
• 4 x User LEDs
• Reset pushbutton
• 2 x User pushbuttons
• User potentiometer
• Arduino v3 compatible Shield headers
• Footprint for 6-pin JTAG/ICSP debug connection (PICkit 3)
• Power supply: +7V to +15V on barrel jack socket
• Microchip MPLAB X IDE can be used to program/debug code on the Wi-FIRE board

Note

An adapter Shield allowing up to five Pmod™ peripheral modules to be interfaced is available: RS 136-8283

Diligent Development Tools

Specifikationer
Attribute Value
Classification Development Board
Kit Name ChipKIT WF32
4 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
900,41 kr
(exkl. moms)
1 125,51 kr
(inkl. moms)
Enheter
Per unit
1 +
900,41 kr
