STMicroelectronics Discovery kit with STM32MP135F MPU Board STM32MP135F-DK

Se kategorien
Mängdrabatt möjlig

Antal (1 enhet)*

1 438,42 kr

(exkl. moms)

1 798,02 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • 1 enhet(er) levereras från den 20 mars 2026
  • Dessutom levereras 3 enhet(er) från den 10 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 11 438,42 kr
2 - 41 401,57 kr
5 +1 366,40 kr

*vägledande pris

RS-artikelnummer:
261-5098
Tillv. art.nr:
STM32MP135F-DK
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

Classification

Board

Kit Name

Discovery kit with STM32MP135F MPU

Device Core

ARM

COO (Country of Origin):
FR
The STM32MP135 Discovery kit (STM32MP135F-DK) leverages the capabilities of the 1 GHz STM32MP135 microprocessors to allow users to develop easily applications using STM32 MPU OpenSTLinux Distribution software.

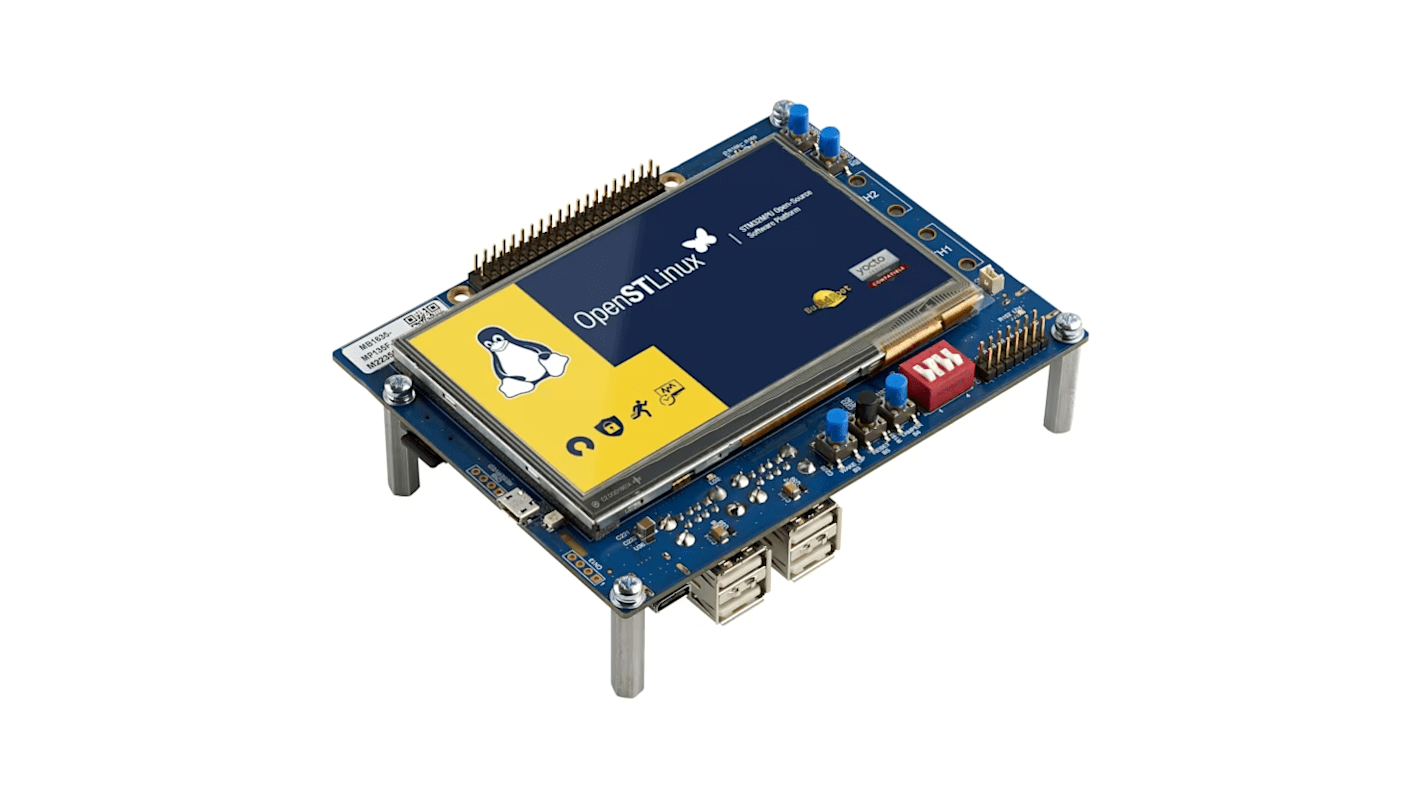

board photo STM32MP135F-DK
It includes an ST-LINK embedded debug tool, LEDs, push-buttons, two 10/100 Mbit/s Ethernet (RMII) connectors, one USB Type-C® connector, four USB Host Type-A connectors, and one microSD™ connector.

To expand the functionality of the STM32MP135 Discovery kit, one GPIO expansion connector is also available for third-party shields.

Additionally, the STM32MP135 Discovery kit features an LCD display with a touch panel, Wi‑Fi® and Bluetooth® Low Energy capability, and a 2-megapixel CMOS camera module.

It also provides secure boot and cryptography features.

All Features


STM32MP135FAF7 MPU with an Arm® Cortex®‑A7 32-bit processor at 1 GHz, in a TFBGA320 package

ST PMIC STPMIC1

4-Gbit DDR3L, 16 bits, 533 MHz

4.3" 480x272 pixels LCD display module with capacitive touch panel and RGB interface

UXGA 2-megapixel CMOS camera module (included) with MIPI CSI-2® / SMIA CCP2 deserializer

Wi‑Fi® 802.11b/g/n

Bluetooth® Low Energy 4.1

Dual 10/100 Mbit/s Ethernet (RMII) compliant with IEEE-802.3u, one with Wake on LAN (WoL) support

USB Host 4-port hub

USB Type-C® DRP based on an STM32G0 device

4 user LEDs

4 push-buttons (2x user, tamper, and reset)

1 wake-up button

Board connectors:

  • Dual-lane MIPI CSI-2® camera module expansion


  • 2x Ethernet RJ45


  • 4x USB Type-A


  • USB Micro-B


  • USB Type-C®


  • microSD™ card holder


  • GPIO expansion


  • 5 V / 3 A USB Type-C® power supply input (charger not provided)


  • VBAT for power backup


On-board current measurement

On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

Full mainline open-source Linux® STM32 MPU OpenSTLinux Distribution (such as STM32MP1Starter) software and examples

Support of several Integrated Development Environments (IDEs) including STM32CubeIDE

Bare metal support for RTOS (Microsoft® Azure®)
