STMicroelectronics Discovery MCU Development Kit STM8A-DISCOVERY
- RS-artikelnummer:
- 143-8871
- Tillv. art.nr:
- STM8A-DISCOVERY
- Tillverkare / varumärke:
- STMicroelectronics
14 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
252,71 kr
(exkl. moms)
315,89 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 252,71 kr |
- RS-artikelnummer:
- 143-8871
- Tillv. art.nr:
- STM8A-DISCOVERY
- Tillverkare / varumärke:
- STMicroelectronics
Lagstiftning och ursprungsland
Produktdetaljer
Discovery Kit for STM8A Automotive Microcontrollers

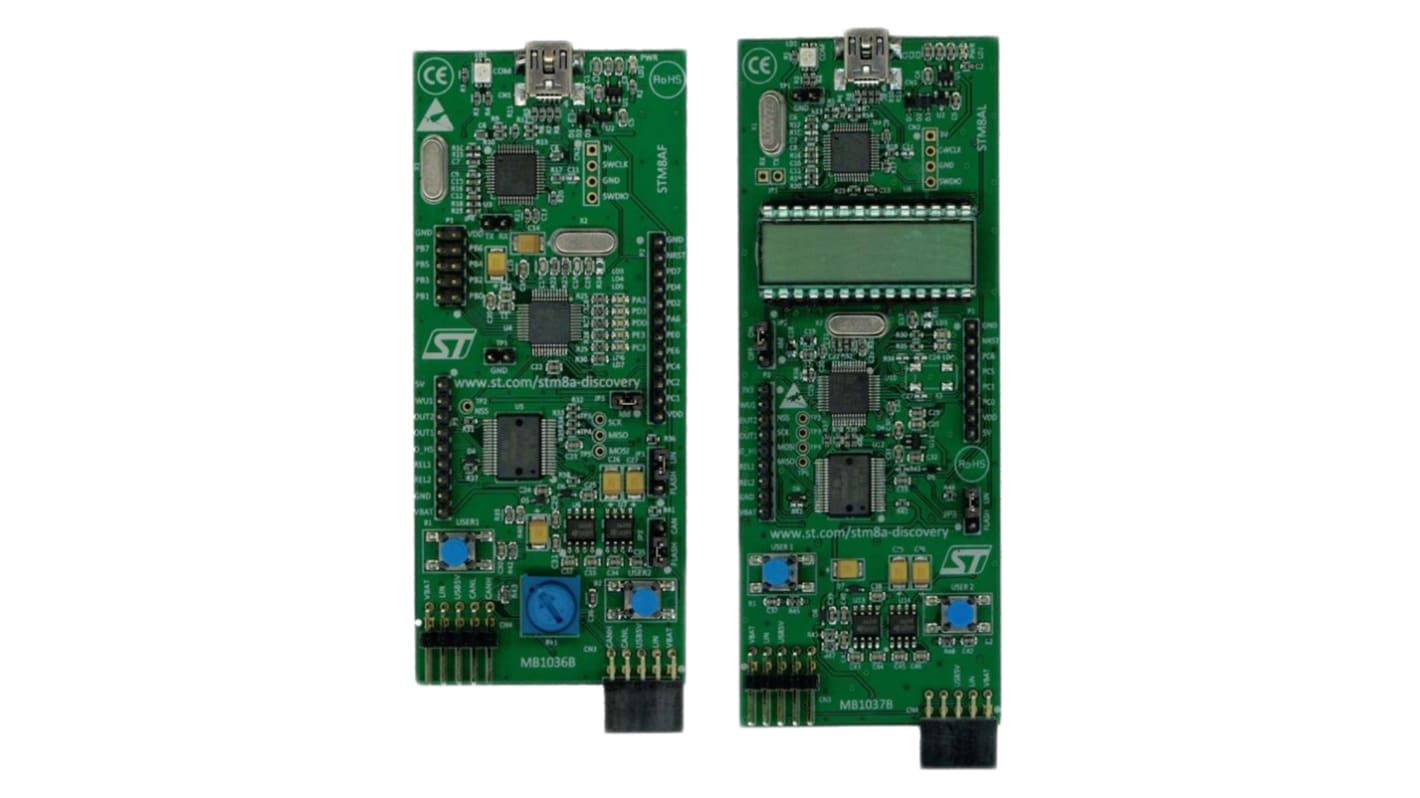

The STM8A-DISCOVERY kit contains two boards: one for the STM8AF device family and the other for STM8AL devices. All devices within these families (STM8Ax) are stress-tested and AEC-Q100 qualified for automotive applications.
STM8AF/STM8AL Board Common Features
• On-board ST-LINK/V2 for programming and debugging
• On-board ST662A +12V boost converter when board powered from VUSB
• On-board L99PM62GXP PMIC with LIN and CAN bus controllers
• Power and USB LEDs
• 2 x User pushbuttons
• USB mini-B socket for host PC connection
• Extension header for other L99PM62GXP features
• Extension headers for MCU connectivity
• Boards powered via USB connection or external +12Vdc VBAT
STM8AF Board Features
• 24MHz STM8AF5288T 8-bit MCU with 64KB Flash memory, 6KB RAM, 2KB data EEPROM
• CAN and LIN communication available
• 5 x User LEDs
• User potentiometer connected to MCU ADC
• Dimensions: 110.2 x 45.7mm
STM8AL Board Features
• 16MHz STM8AL3L68T 8-bit MCU with 32KB Flash memory, 4KB RAM, 1KB data EEPROM
• LIN communication available
• 2 x User LEDs
• 4-digit 14-segment + 4-bar LCD display
• IDD current measurement circuit
• Dimensions: 122.8 x 45.7mm
STM8 8-Bit Microcontrollers, STMicroelectronics
The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
Specifikationer
Attribute | Value |
|---|---|
| Classification | Development Kit |
| Kit Name | Discovery |
| Technology | MCU |
| Device Core | STM8 |
| Processor Family Name | STM |
| Processor Part Number | STM8AF5288T |
| Processor Type | MCU |
