Microchip Xplained Ultra MCU Development Board ATSAMA5D4-XULT

  • RS-artikelnummer 130-6169
  • Tillv. art.nr ATSAMA5D4-XULT
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

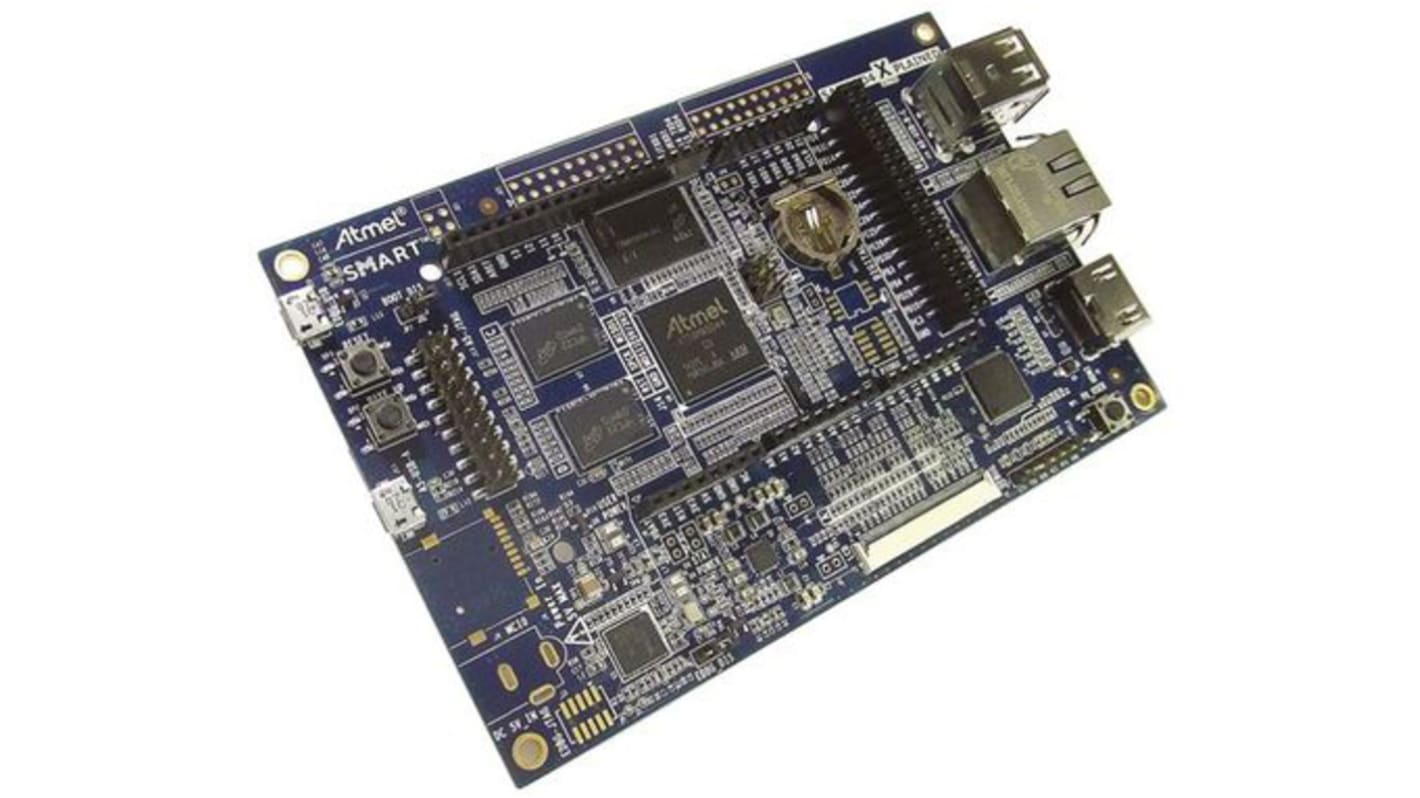

ATSAMA5D4-XULT XPlained Ultra Evaluation Kit

The ATSAMA5D4-XULT XPlained Ultra Evaluation Kit is designed for the evaluation and protoyping of SMART SAMA5D4 ARM based embedded microprocessor units (eMPU). Ultra benefits enable the designer to work directly with high-speed data and external memory interfaces.
Beneficial characteristics of the XPlained Pro platform are the integration of Atmel Studio, the inclusion of Atmel software framework drivers and demo code and support streaming data.

USB powered
Operating temp 0 °C to +70 °C
Dimensions 135 x 88 x 20 mm
Arduino R3 compatible set of connectors
4-bit SD card connector and 4-bit micro SD card connector
JTAG interface connector
EDBG interface
Reset, wake up and free user push button
Red power LED
Blue user LED

Supplied with

micro-AB type USB cable

ARM Microprocessors

Specifikationer
Attribute Value
Classification Development Board
Kit Name Xplained Ultra
Technology MCU
Device Core ARM Cortex A5
Processor Family Name SAM
Processor Part Number SAMA5D44-CU
Processor Type MCU
26 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 359,34 kr
(exkl. moms)
1 699,18 kr
(inkl. moms)
Enheter
Per unit
1 +
1 359,34 kr
