Renesas Electronics MCU Starter Kit YR0K50571MS000BE

Starter Kit for RX71M Microcontrollers

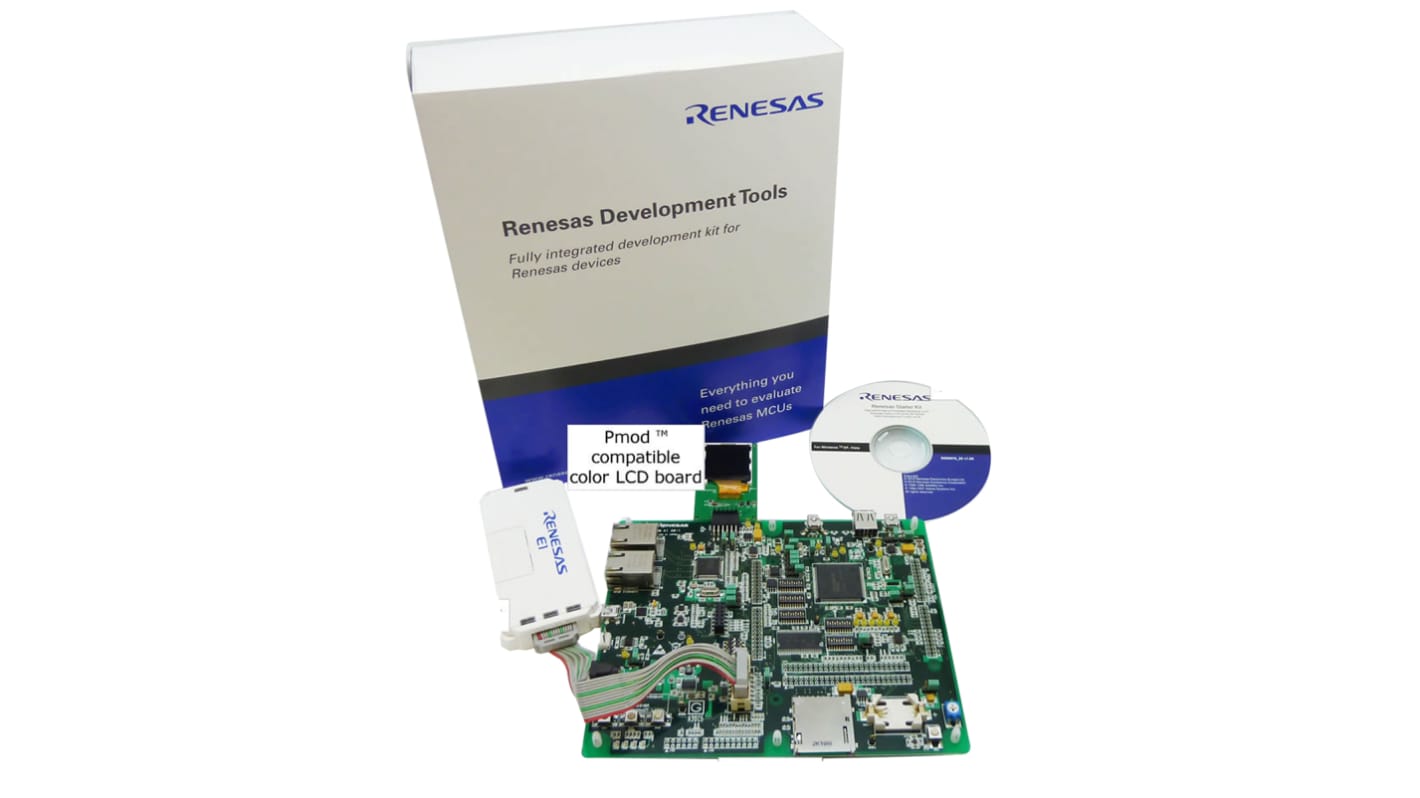

The RX71M Microcontroller Starter Kit is available in two versions differing only in the IDE tool supported: CS+ or Eclipse Embedded (e²studio). The kit contains a Pmod™ compatible LCD module and an E1 Emulator pod for debugging purposes.

240MHz R5F571MLCDFC (RX71M) MCU with 4MB Flash memory, 64KB Data Flash, 512KB RAM
12MHz R5F10JBCANA (RL78/G1C) MCU for USB-UART bridge
128Mbit SDRAM
16Kbit EEPROM, serial I²C
32Mbit Flash, serial SPI
32Mbit Flash, serial QSPI
2 x RJ45 10/100 Ethernet connectors
1Mbps CAN bus header
miniUSB connector for USB-UART bridge
USB0 Type A FS Host connector
USB0 mini-B FS Function connector
USBA Type A HS Host connector
USBA mini-B HS Function connector
2 x 12-pin Pmod expansion connectors
E1 debug header
SD Flash card slot
CR2032 coin-cell holder for battery backup
4 x User LEDs
Reset pushbutton
User pushbutton
Potentiometer for user analogue input
2.1mm pin-positive barrel jack socket for +5Vdc power supply
Dimensions: 180 x 150mm

RS Product Codes
125-8410 R0K50571MS000BE Starter Kit with CS+ IDE
125-8412 YR0K50571MS000BE Starter Kit with e²studio IDE

Supplied with

Software DVD ROM, E1 Emulator/Debugger pod, Debug LCD module
